3VL8716-1SB30-0AA0

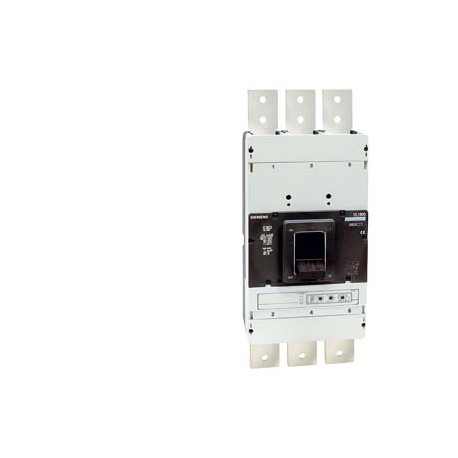

3VL8716-1SB30-0AA0 SIEMENS circuit breaker VL1600N standard breaking capacity Icu 55kA, 415V AC 3-pole, line..
$0.00USD
3839 in stock
Key Specifications
:Value
EAN:4011209826397
UPC:Not available
ETIM:4
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4011209826397 |
| UPC | Not available |
| ETIM | 4 |
| Depth | 333.5 mm |
| Notes | Sucessor:Further information about local contact: www.siemens.com/lowvoltage/contact |
| Width | 228.5 mm |
| Height | 406.5 mm |
| UNSPSC | 14 |
| eClass | 6 |
| ● solid | 0.75 ... 1.5 mm² |
| Group Code | P360 |
| Price Group | 12N |
| ● maximum | 70 °C |
| ● minimum | -25 °C |
| Metal Factor | LAP----- |
| Mounting type | fixed mounting |
| Product Group | 3740 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85362090 |
| Product family | Not available |
| Usage category | A |
| Net Weight (kg) | 33,250 Kg |
| number of poles | 3 |
| ● rated value | 800 V |
| Product function | |
| Country of origin | Mexico |
| Operating current | |
| Operating voltage | |
| Product component | |
| Shipping Approval | other |
| Insulation voltage | |
| LKZ_FDB/ CatalogID | LV10.1 |
| PLM Effective Date | Product phase-out since: 01.10.2019 |
| Packaging Quantity | 1 |
| ● Trip indicator | No |
| Operating frequency | |
| Packaging Dimension | 300,00 x 600,00 x 250,00 |
| Product Description | circuit breaker VL1600N standard breaking capacity Icu=55kA, 415V AC 3-pole, line protection trip unit ETU10, LI In=1600A, rated current IR=640...1600A, overload protection, II=1.25 to 9 xIN, short-circuit protection without auxiliary release without auxiliary/alarm switch |
| Protection class IP | IP20 |
| suitability for use | system protection |
| ● 1 / rated value | 50 Hz |
| ● 2 / rated value | 60 Hz |
| ● Voltage trigger | No |
| ● Auxiliary switch | No |
| Product Lifecycle (PLM) | PM400:Phase Out Started |
| ● Overload protection | Yes |
| ● at AC / rated value | 800 V |
| General Product Approval | EMC |
| Rated voltage (EF003977) | - |
| ● undervoltage release | No |
| ● rated value / maximum | 690 V |
| Export Control Regulations | ECCN : EAR99 / AL : N |
| Number of poles (EF001391) | 3 |
| certificate of suitability | IEC, standard switching capacity (N) |
| ● at 240 V / rated value | 35 kA |
| ● at 415 V / rated value | 28 kA |
| ● at 440 V / rated value | 35 kA |
| ● at 500 V / rated value | 20 kA |
| ● at 690 V / rated value | 10 kA |
| Size of the circuit-breaker | 3VL8 |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| ● Ground fault protection | No |
| ● at 40 °C / rated value | 1 600 A |
| ● at 50 °C / rated value | 1 600 A |
| ● at 55 °C / rated value | 1 520 A |
| ● at 60 °C / rated value | 1 520 A |
| ● at 65 °C / rated value | 1 280 A |
| ● at 70 °C / rated value | 1 280 A |
| Package size unit of measure | MM |
| Operating frequency / maximum | 30 1/s |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Product Dimensions (W x L x H) | Not available |
| Motor drive optional (EF007386) | true |
| Continuous current / rated value | 1 600 A |
| adjustable pick-up value current | |
| Design of the overcurrent release | ETU10 |
| Motor drive integrated (EF006697) | false |
| ● of thermal overload trip unit | adjustable |
| Type of control element (EF006976) | - |
| Rated operational voltage Ue / max. | 690 V |
| Ambient temperature / during storage | |
| Degree of protection (IP) (EF005474) | IP20 |
| Article Number (Market Facing Number) | 3VL8716-1SB30-0AA0 |
| Performance class for circuit breaker | N |
| Rated permanent current Iu (EF001389) | 1600.0 |
| With under voltage release (EF007518) | false |
| Ambient temperature / during operation | |
| Surge voltage resistance / rated value | 8 kV |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| With switched-off indicator (EF007006) | false |
| ● at 480 V / acc. to NEMA / rated value | 25 kA |
| ● at 600 V / acc. to NEMA / rated value | 20 kA |
| Product extension / optional / motor drive | Yes |
| Overload release current setting (EF002336) | ['640', '1600'] |
| Type of the driving mechanism / motor drive | No |
| ● reference code / acc. to DIN EN 61346-2 | Q |
| Integrated earth fault protection (EF007296) | false |
| ● undervoltage release with leading contact | No |
| Number of CO contacts / for auxiliary contacts | 0 |
| Number of NC contacts / for auxiliary contacts | 0 |
| Number of NO contacts / for auxiliary contacts | 0 |
| protection function of the overcurrent release | LI |
| ● finely stranded / with core end processing | 0,75 ... 1.0 mm² |
| Complete device with protection unit (EF008906) | true |
| Electrical endurance (switching cycles) / typical | 1 500 |
| DIN rail (top hat rail) mounting optional (EF008904) | true |
| Mechanical service life (switching cycles) / typical | 3 000 |
| Maximum short-circuit current breaking capacity (Icu) | |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | true |
| Type of electrical connection / for main current circuit | without connection accessoires |
| Type of electrical connection of main circuit (EF006819) | Other |
| Operational short-circuit current breaking capacity (Ics) | |
| ● for main current circuit / at AC / at 50 Hz / maximum | 690 V |
| ● for main current circuit / at AC / at 60 Hz / maximum | 690 V |
| Position of connection for main current circuit (EF006671) | Front side |
| Adjustment range undelayed short-circuit release (EF007131) | ['2000', '14400'] |
| ● of instantaneous short-circuit trip unit / initial value | 2 000 A |
| ● for neutral conductors / Short-circuit and overload proof | No |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Arrangement of electrical connectors / for main current circuit | front side |
| ● of instantaneous short-circuit trip unit / Full-scale value | 14 400 A |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| ● of the current-dependent overload release / Full-scale value | 1 600 A |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Adjustment range short-term delayed short-circuit release (EF007129) | ['-', '-'] |
| Derating temperature / for the rated value of the continuous current | 50 °C |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (EF007048) | 55.0 |
| Type of connectable conductor cross-sections / for auxiliary contacts | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| Reference code / acc. to DIN 40719 extended according to IEC 204-2 / acc. to IEC 750 | Q |
| adjustable pick-up value current / of the current-dependent overload release / initial value | 640 A |
| General Product ApprovalEMCTest CertificatesShipping ApprovalMiscellaneousTSESpecial Test CertificateShipping ApprovalotherConfirmationEnvironmental ConfirmationsManufacturer DeclarationMiscellaneous | General Product Approval |
