3VL6180-2KK30-0AA0

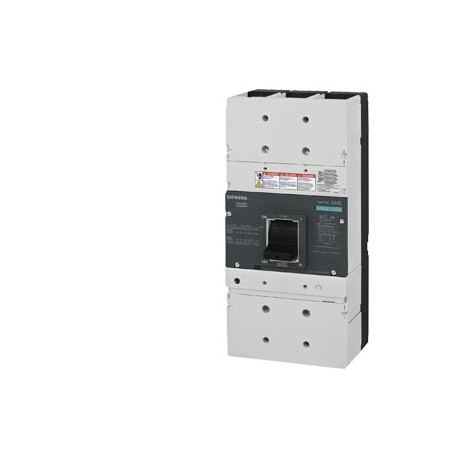

3VL6180-2KK30-0AA0 SIEMENS circuit breaker VL800 UL type MG (cat no. HMM3M800) non-interchangeable frame, wi..
$0.00USD
3422 in stock
Key Specifications
:Value
EAN:Not available
UPC:783643429369
ETIM:4
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | Not available |
| UPC | 783643429369 |
| ETIM | 4 |
| Notes | Sucessor:Successor portfolio 3VA; further information via www.siemens.com/3VA |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | P360 |
| Price Group | 12N |
| Metal Factor | LAP----- |
| Product Group | 3742 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85362010 |
| Product family | Not available |
| Net Weight (kg) | 14,000 Kg |
| Depth (EF000049) | 176.5 |
| Width (EF000008) | 190.0 |
| Country of origin | Mexico |
| Height (EF000040) | 406.5 |
| LKZ_FDB/ CatalogID | LV10.1 |
| PLM Effective Date | Product phase-out since: 01.04.2019 |
| Packaging Quantity | 1 |
| Packaging Dimension | Not available |
| Product Description | circuit breaker VL800 UL; type MG (cat no. HMM3M800) non-interchangeable frame, with circuit breaker approval acc. to UL 489 high breaking capacity 3-pole, NEMA rating 65kA/480V, (motor starter protector) trip unit magnetic TA=40°C In=< 800A, rated current II=3250..6500A short-circuit protection starter combination without connection accessories without auxiliary release without auxiliary/alarm switch |
| Product Lifecycle (PLM) | PM400:Phase Out Started |
| Export Control Regulations | ECCN : EAR99 / AL : N |
| Number of poles (EF001391) | 3 |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | Not available |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Product Dimensions (W x L x H) | Not available |
| Switch off technique (EF007007) | Magnetic |
| Phase failure sensitive (EF007400) | false |
| Rated operating voltage (EF001435) | ['690', '690'] |
| Type of control element (EF006976) | - |
| With thermal protection (EF006233) | - |
| Degree of protection (IP) (EF005474) | IP20 |
| Article Number (Market Facing Number) | 3VL6180-2KK30-0AA0 |
| Rated permanent current Iu (EF001389) | 800.0 |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| Overload release current setting (EF002336) | ['-', '-'] |
| With integrated auxiliary switch (EF001387) | false |
| Rated operation power at AC-3, 230 V (EF007025) | 147.2 |
| Rated operation power at AC-3, 400 V (EF001364) | 443.4 |
| With integrated under voltage release (EF001390) | false |
| Type of electrical connection of main circuit (EF006819) | - |
| Adjustment range undelayed short-circuit release (EF007131) | ['3250', '6500'] |
| Rated short-circuit breaking capacity lcu at 400 V, AC (EF007049) | - |
| Compliance with the substance restrictions according to RoHS directive | Since: 25.09.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
