3VL1706-2EA46-0AA0

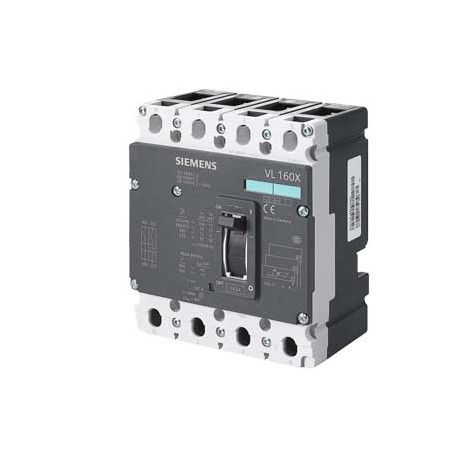

3VL1706-2EA46-0AA0 SIEMENS circuit breaker VL160X H high breaking capacity Icu 70kA, 415V AC 4-pole, line pr..
$0.00USD
3159 in stock
Key Specifications
:Value
EAN:4011209639607
UPC:Not available
ETIM:4
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4011209639607 |
| UPC | Not available |
| ETIM | 4 |
| Notes | Sucessor:3VA1163-6GD42-.... |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | P360 |
| Price Group | 12N |
| Metal Factor | LBO----- |
| Product Group | 3740 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85362090 |
| Product family | Not available |
| Net Weight (kg) | 2,664 Kg |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | LV10.1 |
| PLM Effective Date | Product phase-out since: 01.10.2016 |
| Packaging Quantity | 1 |
| Packaging Dimension | 161,00 x 243,00 x 128,00 |
| Product Description | circuit breaker VL160X H high breaking capacity Icu=70kA, 415V AC 4-pole, line protection Electronic Trip Unit TM, LI In=63A, rated current Ir=63A, overload protection II=600A, short-circuit prot. N protected with screw terminals without auxiliary release without auxiliary/alarm switch |
| Product Lifecycle (PLM) | PM400:Phase Out Started |
| Rated voltage (EF003977) | - |
| Export Control Regulations | ECCN : EAR99 / AL : N |
| Number of poles (EF001391) | 4 |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Product Dimensions (W x L x H) | Not available |
| Motor drive optional (EF007386) | true |
| Motor drive integrated (EF006697) | false |
| Type of control element (EF006976) | - |
| Degree of protection (IP) (EF005474) | IP20 |
| Article Number (Market Facing Number) | 3VL1706-2EA46-0AA0 |
| Rated permanent current Iu (EF001389) | 63.0 |
| With under voltage release (EF007518) | false |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| With switched-off indicator (EF007006) | false |
| Overload release current setting (EF002336) | ['63', '63'] |
| Integrated earth fault protection (EF007296) | false |
| Complete device with protection unit (EF008906) | true |
| DIN rail (top hat rail) mounting optional (EF008904) | true |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | true |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Position of connection for main current circuit (EF006671) | Front side |
| Adjustment range undelayed short-circuit release (EF007131) | ['600', '600'] |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Adjustment range short-term delayed short-circuit release (EF007129) | ['-', '-'] |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (EF007048) | 70.0 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
