3VA9988-0AB11

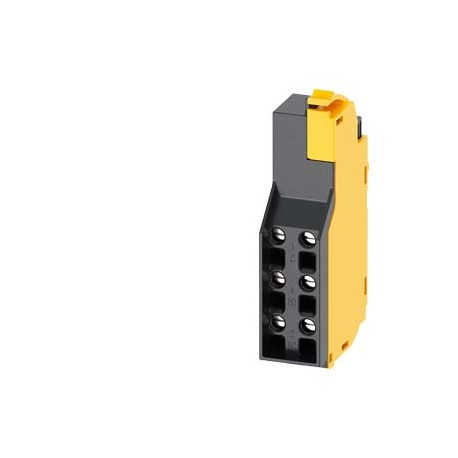

3VA9988-0AB11 SIEMENS Trip alarm switch changeover contacts type HP (14MM) accessory for 3VA1 and 3VA20 up t..
$0.00USD
3674 in stock
Key Specifications
:VersionClassificationeClass627-37-92-01eClass7.127-37-92-01eClass827-37-92-01eClass927-37-92-01eClass9.127-37-92-01ETIM5EC002498ETIM6EC002498ETIM7EC002498ETIM8EC002498UNSPSC1539-12-11-03
EAN:4042949000020
UPC:804766447815
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-92-01eClass7.127-37-92-01eClass827-37-92-01eClass927-37-92-01eClass9.127-37-92-01ETIM5EC002498ETIM6EC002498ETIM7EC002498ETIM8EC002498UNSPSC1539-12-11-03 | |
| EAN | 4042949000020 |
| UPC | 804766447815 |
| ETIM | 5 |
| Width | 14 mm |
| depth | 30 mm |
| Height | 56 mm |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | P360 |
| net weight | 40 g |
| Accessories | Tripped signaling switch |
| ● maximum | 14 |
| ● minimum | 19 |
| Metal Factor | None |
| Product Group | 5376 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | Accessories and Spare Parts 3VA9, for IEC Circuit Breakers up to 1250A |
| last modified: | 12/20/2020 |
| Net Weight (kg) | 0,036 Kg |
| Product version | Accessories for 3VA circuit breakers |
| stripped length | 15 mm |
| Country of origin | Czech Republic |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Degree of pollution | 3 |
| Packaging Dimension | 100,00 x 170,00 x 14,50 |
| Product Description | Trip alarm switch changeover contacts type HP (14MM) accessory for 3VA1 and 3VA20 up to 3VA25 |
| operational current | |
| product designation | Tripped signaling switch |
| Overvoltage category | III |
| stripped length [in] | 0.6 in |
| ● at AC-12 / at 12 V | 10 A |
| ● at AC-12 / at 24 V | 10 A |
| ● at AC-12 / at 48 V | 10 A |
| ● at AC-15 / at 12 V | 6 A |
| ● at AC-15 / at 24 V | 6 A |
| ● at AC-15 / at 48 V | 6 A |
| ● at DC-12 / at 12 V | 6 A |
| ● at DC-12 / at 24 V | 6 A |
| ● at DC-12 / at 48 V | 2 A |
| ● at DC-13 / at 12 V | 3 A |
| ● at DC-13 / at 24 V | 3 A |
| ● at DC-13 / at 48 V | 0.8 A |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● at AC-12 / at 125 V | 10 A |
| ● at AC-12 / at 400 V | 6 A |
| ● at AC-12 / at 600 V | 2 A |
| ● at AC-15 / at 125 V | 6 A |
| ● at AC-15 / at 600 V | 0.6 A |
| ● at DC-12 / at 110 V | 0.6 A |
| ● at DC-12 / at 250 V | 0.3 A |
| ● at DC-13 / at 110 V | 0.2 A |
| ● at DC-13 / at 250 V | 0.1 A |
| Thermal current limit Ith | 10 A |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| ● at AC-12 / at 220/240 V | 10 A |
| ● at AC-12 / at 380/400 V | 6 A |
| ● at AC-15 / at 220/240 V | 6 A |
| ● at AC-15 / at 380/400 V | 2 A |
| Package size unit of measure | MM |
| Rated operational voltage Ue with DC | 250 V |
| Tension assignée de tenue aux chocs | 6 kV |
| Article Number (Market Facing Number) | 3VA9988-0AB11 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Type of accessory/spare part (EF000215) | Other |
| Rated operational voltage Ue at AC 50 Hz | 600 V |
| Region Specific PriceGroup / Headquarter Price Group | 12P / 1CB |
| tightening torque / with screw-type terminals / maximum | 0.5 N·m |
| tightening torque / with screw-type terminals / minimum | 0.4 N·m |
| tightening torque [lbf·in] / with screw-type terminals / maximum | 4.4 lbf·in |
| tightening torque [lbf·in] / with screw-type terminals / minimum | 3.5 lbf·in |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2012 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| AWG number / as coded connectable conductor cross section / for auxiliary contacts |
Product Description
SENALIZ BLOCK. TRIPPED SWITCHED CONTACTS TYPE HP (14MM) ACCESSORY FOR: SWITCH 3VA. Cancelations and returns limited. Consult conditions.
