In Stock Hot Product
3VA9978-0BL32

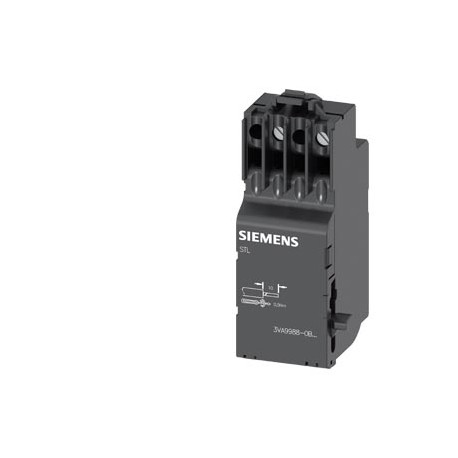

3VA9978-0BL32 SIEMENS shunt trip left 110-127V AC 50/60Hz/DC accessory for: 3VA4/5/6
$0.00USD
4678 in stock
Key Specifications
:VersionClassificationeClass627-37-92-01eClass7.127-37-92-01eClass827-37-92-01eClass927-37-92-01eClass9.127-37-92-01ETIM5EC002498ETIM6EC002498ETIM7EC002498ETIM8EC002498UNSPSC1539-12-11-03
EAN:4042949014171
UPC:804766323515
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-92-01eClass7.127-37-92-01eClass827-37-92-01eClass927-37-92-01eClass9.127-37-92-01ETIM5EC002498ETIM6EC002498ETIM7EC002498ETIM8EC002498UNSPSC1539-12-11-03 | |
| EAN | 4042949014171 |
| UPC | 804766323515 |
| ETIM | 5 |
| Width | 25.7 mm |
| depth | 31.2 mm |
| Height | 65.1 mm |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | P360 |
| net weight | 91 g |
| Accessories | Auxiliary release |
| ● maximum | 16 |
| ● minimum | 20 |
| Metal Factor | None |
| Product Group | 5386 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85364900 |
| Product family | 3VA Molded Case Circuit Breakers up to 1000 A, UL / IEC |
| last modified: | 12/20/2020 |
| Net Weight (kg) | 0,082 Kg |
| Product version | Auxiliary release |
| number of slots | 3 |
| stripped length | 10 mm |
| Country of origin | Czech Republic |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Degree of pollution | 3 |
| Packaging Dimension | 90,00 x 125,00 x 40,00 |
| Product Description | shunt trip left 110-127V AC 50/60Hz/DC accessory for: 3VA4/5/6 |
| product designation | Accessories |
| Overvoltage category | III |
| stripped length [in] | 0.4 in |
| Product Lifecycle (PLM) | PM300:Active Product |
| surge voltage resistance | 4 kV |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| apparent power consumption / maximum | 40 VA |
| Article Number (Market Facing Number) | 3VA9978-0BL32 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Type of accessory/spare part (EF000215) | Other |
| consumed active power / at DC / maximum | 40 W |
| Region Specific PriceGroup / Headquarter Price Group | 12P / 1CB |
| tightening torque / with screw-type terminals / maximum | 0.5 N·m |
| tightening torque / with screw-type terminals / minimum | 0.4 N·m |
| tightening torque [lbf·in] / with screw-type terminals / maximum | 4.4 lbf·in |
| tightening torque [lbf·in] / with screw-type terminals / minimum | 3.5 lbf·in |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2016 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| AWG number / as coded connectable conductor cross section / for auxiliary contacts |
Product Description
DISP. LEFT OPENING. 110-127 V AC 50/60 HZ / DC ACCESSORY FOR: 3VA4/5/6. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
