3VA9978-0AB13

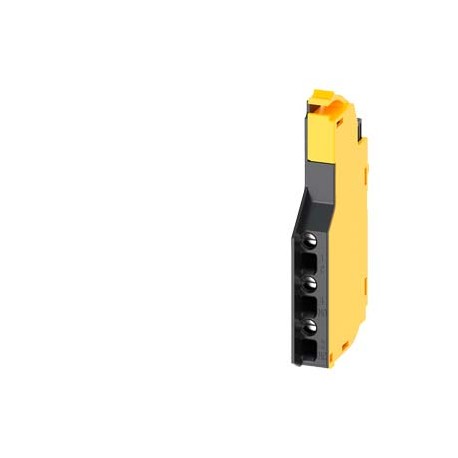

3VA9978-0AB13 SIEMENS trip alarm switch changeover contacts type HQ (7mm) electronic-comp. accessory for: 3V..
$0.00USD
4032 in stock
Key Specifications
:VersionClassificationeClass627-37-92-01eClass7.127-37-92-01eClass827-37-92-01eClass927-37-92-01eClass9.127-37-92-01ETIM5EC002498ETIM6EC002498ETIM7EC002498ETIM8EC002498UNSPSC1539-12-11-03
EAN:4042949014102
UPC:804766323355
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-92-01eClass7.127-37-92-01eClass827-37-92-01eClass927-37-92-01eClass9.127-37-92-01ETIM5EC002498ETIM6EC002498ETIM7EC002498ETIM8EC002498UNSPSC1539-12-11-03 | |
| EAN | 4042949014102 |
| UPC | 804766323355 |
| ETIM | 5 |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | P360 |
| Accessories | Tripped signaling switch |
| ● maximum | 16 |
| ● minimum | 20 |
| Metal Factor | None |
| Product Group | 5386 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365019 |
| Product family | 3VA Molded Case Circuit Breakers up to 1000 A, UL / IEC |
| last modified: | 12/20/2020 |
| Net Weight (kg) | 0,026 Kg |
| Product version | Accessories for 3VA circuit breakers |
| stripped length | 15 mm |
| Country of origin | Czech Republic |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Degree of pollution | 3 |
| Packaging Dimension | 175,00 x 100,00 x 8,00 |
| Product Description | trip alarm switch changeover contacts type HQ (7mm) electronic-comp. accessory for: 3VA4/5/6 |
| operational current | |
| product designation | Tripped signaling switch |
| Overvoltage category | III |
| stripped length [in] | 0.6 in |
| ● at AC-12 / at 12 V | 0.3 A |
| ● at AC-12 / at 24 V | 0.3 A |
| ● at AC-15 / at 12 V | 0.3 A |
| ● at AC-15 / at 24 V | 0.3 A |
| ● at DC-12 / at 12 V | 0.1 A |
| ● at DC-12 / at 24 V | 0.1 A |
| ● at DC-13 / at 12 V | 0.07 A |
| ● at DC-13 / at 24 V | 0.07 A |
| Product Lifecycle (PLM) | PM300:Active Product |
| Thermal current limit Ith | 0.3 A |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Rated operational voltage Ue with DC | 24 V |
| Tension assignée de tenue aux chocs | 4 kV |
| Article Number (Market Facing Number) | 3VA9978-0AB13 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Type of accessory/spare part (EF000215) | Other |
| Rated operational voltage Ue at AC 50 Hz | 24 V |
| operating voltage / at AC / according to CSA and UL | 24 V |
| operating voltage / at DC / according to CSA and UL | 24 V |
| Region Specific PriceGroup / Headquarter Price Group | 12P / 1CB |
| tightening torque / with screw-type terminals / maximum | 0.5 N·m |
| tightening torque / with screw-type terminals / minimum | 0.4 N·m |
| tightening torque [lbf·in] / with screw-type terminals / maximum | 4.4 lbf·in |
| tightening torque [lbf·in] / with screw-type terminals / minimum | 3.5 lbf·in |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2016 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| AWG number / as coded connectable conductor cross section / for auxiliary contacts |
Product Description
LOCK. SIGNAL TRIGGERED SWITCHED CONTACTS TYPE HQ (7MM) ELECTRONIC ACCESSORY FOR: SWITCHES 3VA4/5/6. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
