3VA9908-0BB20

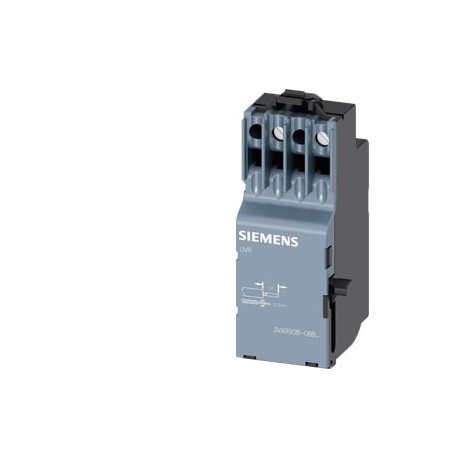

3VA9908-0BB20 SIEMENS UNDERVOLTAGE RELEASE 24 V AC 50/60HZ ACCESSORY FOR 3VA1 and 3VA20 up to 3VA25
$0.00USD
3963 in stock
Key Specifications
:VersionClassificationeClass627-37-92-01eClass7.127-37-92-01eClass827-37-92-01eClass927-37-92-01eClass9.127-37-92-01ETIM5EC002498ETIM6EC002498ETIM7EC002498ETIM8EC002498UNSPSC1539-12-11-03
EAN:4042949000969
UPC:804766447860
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-92-01eClass7.127-37-92-01eClass827-37-92-01eClass927-37-92-01eClass9.127-37-92-01ETIM5EC002498ETIM6EC002498ETIM7EC002498ETIM8EC002498UNSPSC1539-12-11-03 | |
| EAN | 4042949000969 |
| UPC | 804766447860 |
| ETIM | 5 |
| Width | 25.7 mm |
| depth | 28.8 mm |
| Height | 65.1 mm |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | P360 |
| net weight | 91 g |
| Accessories | Auxiliary release |
| ● maximum | 16 |
| ● minimum | 20 |
| Metal Factor | None |
| Product Group | 5376 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85364190 |
| Product family | Accessories and Spare Parts 3VA9, for IEC Circuit Breakers up to 1250A |
| last modified: | 12/20/2020 |
| Net Weight (kg) | 0,083 Kg |
| Product version | Auxiliary release |
| number of slots | 3 |
| stripped length | 10 mm |
| Country of origin | Czech Republic |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Degree of pollution | 3 |
| Packaging Dimension | 90,00 x 124,00 x 41,00 |
| Product Description | UNDERVOLTAGE RELEASE 24 V AC 50/60HZ ACCESSORY FOR 3VA1 and 3VA20 up to 3VA25 |
| product designation | Accessories |
| Overvoltage category | III |
| stripped length [in] | 0.4 in |
| Product Lifecycle (PLM) | PM300:Active Product |
| surge voltage resistance | 4 kV |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| apparent power consumption / maximum | 2 VA |
| Article Number (Market Facing Number) | 3VA9908-0BB20 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Type of accessory/spare part (EF000215) | Other |
| Region Specific PriceGroup / Headquarter Price Group | 12P / 1CB |
| tightening torque / with screw-type terminals / maximum | 0.5 N·m |
| tightening torque / with screw-type terminals / minimum | 0.4 N·m |
| tightening torque [lbf·in] / with screw-type terminals / maximum | 4.4 lbf·in |
| tightening torque [lbf·in] / with screw-type terminals / minimum | 3.5 lbf·in |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2012 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| AWG number / as coded connectable conductor cross section / for auxiliary contacts |
Product Description
MINIMUM VOLTAGE TRIGGER 24 V AC 50/60HZ ACCESSORY FOR: 3VA1 100/160 3VA2 100/160/250/400/630. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
