3VA9478-0DK72

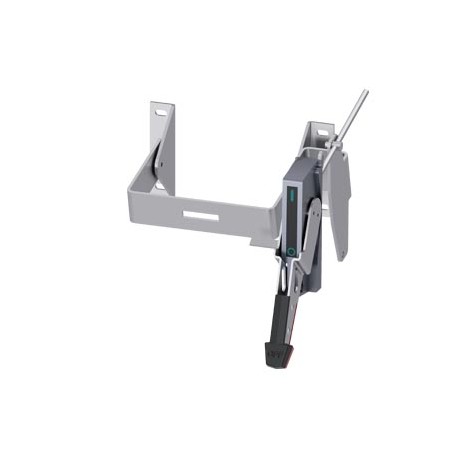

3VA9478-0DK72 SIEMENS Operating Unit with Rod Variable Depth Flange Mounted operator kit, consisting of: han..
$0.00USD
4779 in stock
Key Specifications
:VersionClassificationeClass627-37-92-01eClass7.127-37-92-01eClass827-37-92-01eClass927-37-92-01eClass9.127-37-92-01ETIM5EC002498ETIM6EC002498ETIM7EC002498ETIM8EC002498UNSPSC1539-12-11-03
EAN:4042949010326
UPC:804766709173
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-92-01eClass7.127-37-92-01eClass827-37-92-01eClass927-37-92-01eClass9.127-37-92-01ETIM5EC002498ETIM6EC002498ETIM7EC002498ETIM8EC002498UNSPSC1539-12-11-03 | |
| EAN | 4042949010326 |
| UPC | 804766709173 |
| ETIM | 5 |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | P360 |
| net weight | 2 500 g |
| Accessories | Variable depth flange mounted operator |
| Metal Factor | None |
| Product Group | 5386 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389099 |
| Product family | Accessories and Spare Parts |
| last modified: | 12/20/2020 |
| Net Weight (kg) | 3,326 Kg |
| Product version | Operating unit with rod |
| Country of origin | Mexico |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 222,00 x 314,00 x 130,00 |
| Product Description | Operating Unit with Rod Variable Depth Flange Mounted operator kit, consisting of: handle steel epoxy coated NEMA 1, 12, 3R black=OFF, red=ON Switching mechanism Mounting depth 8'' to 16'' Accessory for: 3VA5 400, 3VA5 600 3VA6 400, 3VA6 600 |
| product designation | Accessories |
| Product Lifecycle (PLM) | PM300:Active Product |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Standard lead time ex-works | 29 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| degree of protection NEMA rating | NEMA 1, 12, 3R |
| Article Number (Market Facing Number) | 3VA9478-0DK72 |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| Region Specific PriceGroup / Headquarter Price Group | 12P / 1CB |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.08.2018 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
Product Description
Operating unit with variable depth rod, flange mounted operator kit, 3 poles: consists of: lever, steel, epoxy coating NEMA 1, 12, 3R black=OFF, red=ON Switching mechanism Mounting depth 8" to 16" Acc
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
