In Stock Hot Product
3VA9467-0HA21

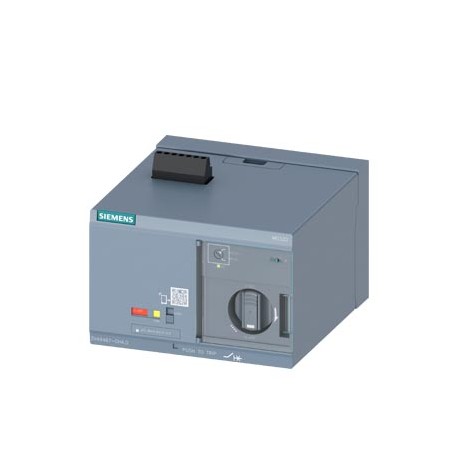

3VA9467-0HA21 SIEMENS motor operator 110 V AC optimized for long cables accessory for: 3VA1 400/630 3VA2 400..
$0.00USD
4745 in stock
Key Specifications
:
EAN:4042948859087
UPC:Not available
Width:138 mm
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4042948859087 |
| UPC | Not available |
| Width | 138 mm |
| depth | 149 mm |
| Height | 92 mm |
| Group Code | P360 |
| net weight | 1 310 g |
| ● maximum | 2.5 mm² |
| ● minimum | 1.5 mm² |
| Metal Factor | None |
| Product Group | 5376 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85013100 |
| Product family | Not available |
| last modified: | 4/29/2021 |
| Net Weight (kg) | 1,586 Kg |
| Product version | Motorized operating mechanism (MO) |
| stripped length | 7 mm |
| Country of origin | Czech Republic |
| tightening torque | |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 142,00 x 155,00 x 102,00 |
| Product Description | motor operator 110 V AC optimized for long cables accessory for: 3VA1 400/630 3VA2 400/630 |
| product designation | Accessories |
| ● minimum● maximum | ● minimum |
| Product Lifecycle (PLM) | PM300:Active Product |
| Rated operational power | 250 VA |
| Export Control Regulations | ECCN : EAR99 / AL : N |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Type de tension pour la commande | AC |
| ambient temperature / during storage | |
| Article Number (Market Facing Number) | 3VA9467-0HA21 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| Type of accessory/spare part (EF000215) | Other |
| connectable conductor cross-section / solid | |
| connectable conductor cross-section / stranded | |
| ● Rated control supply voltage Us at AC 50 Hz | 110 V |
| ● Rated control supply voltage Us at AC 60 Hz | 110 V |
| Region Specific PriceGroup / Headquarter Price Group | 12P / 1CB |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2018 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Orange lead (lead te... CAS-No. 1314-41-6 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Orange lead (lead tetroxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| connectable conductor cross-section / finely stranded / with core end processing |
Product Description
110 V AC motor drive optimized for long cables Accessory for: 3VA1 400/630 3VA2 400/630. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
