3VA9383-0JB13

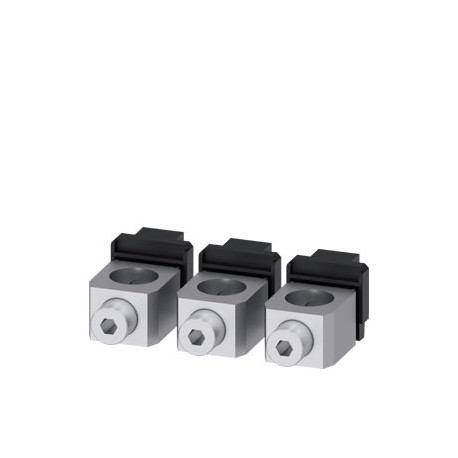

3VA9383-0JB13 SIEMENS wire connector 3 units accessory for: 3VA1 400/630 3VA2 400/630
$0.00USD
4916 in stock
Key Specifications
:VersionClassificationeClass627-37-92-01eClass7.127-37-92-01eClass827-37-92-01eClass927-37-92-01eClass9.127-37-92-01ETIM5EC002498ETIM6EC002498ETIM7EC002498ETIM8EC002498
EAN:4042949008187
UPC:804766450679
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-92-01eClass7.127-37-92-01eClass827-37-92-01eClass927-37-92-01eClass9.127-37-92-01ETIM5EC002498ETIM6EC002498ETIM7EC002498ETIM8EC002498 | |
| EAN | 4042949008187 |
| UPC | 804766450679 |
| ETIM | 5 |
| eClass | 6 |
| Group Code | P360 |
| Accessories | Wire connector |
| Metal Factor | None |
| ● stranded | 1 AWG - 600 kcmil: 375 lb-in |
| Product Group | 5376 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369010 |
| Product family | Accessories and Spare Parts 3VA9, for IEC Circuit Breakers up to 1250A |
| last modified: | 12/20/2020 |
| Net Weight (kg) | 0,385 Kg |
| stripped length | 28 mm |
| Country of origin | United States of America |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 67,00 x 119,00 x 46,00 |
| Product Description | wire connector 3 units accessory for: 3VA1 400/630 3VA2 400/630 |
| product designation | accessories |
| ● finely stranded | 1 AWG - 600 kcmil: 375 lb-in |
| Product Lifecycle (PLM) | PM300:Active Product |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Standard lead time ex-works | 40 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| designation / of the terminal | TA1.5 |
| connectable conductor cross-section | |
| Article Number (Market Facing Number) | 3VA9383-0JB13 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Type of accessory/spare part (EF000215) | - |
| ● for copper cable / stranded / maximum | 300 mm² |
| ● for copper cable / stranded / minimum | 50 mm² |
| ● for aluminum cable / stranded / maximum | 300 mm² |
| ● for aluminum cable / stranded / minimum | 50 mm² |
| tightening torque / when using copper cables | |
| ● for copper cable / finely stranded / maximum | 600 kcmil |
| ● for copper cable / finely stranded / minimum | 1 AWG |
| Region Specific PriceGroup / Headquarter Price Group | 12P / 1CB |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.04.2014 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| ● for copper cable / finely stranded / with core end processing / maximum | 240 |
| ● for copper cable / finely stranded / with core end processing / minimum | 50 |
| permissible temperature / of connectable conductor / according to UL 486A-486B | 75 °C |
Product Description
ROUND CONDUCTOR TERMINAL 3 PCS ACCESSORY FOR: 3VA2 400/630. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
