3VA9243-0JF68

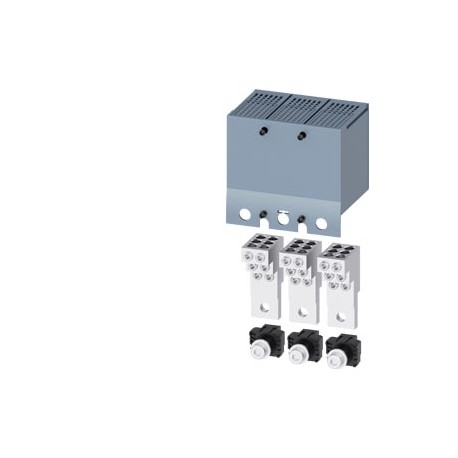

3VA9243-0JF68 SIEMENS Wire Connector for 6 cables 3 pcs. incl. Terminal Cover Extended with probe holes for ..
$0.00USD
3540 in stock
Key Specifications
:VersionClassificationeClass627-37-92-01eClass7.127-37-92-01eClass827-37-92-01eClass927-37-92-01eClass9.127-37-92-01ETIM5EC002498ETIM6EC002498ETIM7EC002498ETIM8EC002498
EAN:4042949008736
UPC:804766782985
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-92-01eClass7.127-37-92-01eClass827-37-92-01eClass927-37-92-01eClass9.127-37-92-01ETIM5EC002498ETIM6EC002498ETIM7EC002498ETIM8EC002498 | |
| EAN | 4042949008736 |
| UPC | 804766782985 |
| ETIM | 5 |
| eClass | 6 |
| ● solid | 1.5 mm²: 2.8 Nm,2.5 - 10 mm²: 6.2 Nm16 mm²: 7 Nm |
| Group Code | P360 |
| Accessories | Wire connector |
| Metal Factor | None |
| ● stranded | 14 - 8 AWG: 55 lb-in6 - 2 AWG: 62 lb-in |
| Product Group | 5386 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369010 |
| Product family | Accessories and Spare Parts |
| last modified: | 4/6/2021 |
| Net Weight (kg) | 0,461 Kg |
| stripped length | 13.5 / 26 / 38.5 mm |
| Country of origin | United States of America |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 113,00 x 107,00 x 94,00 |
| Product Description | Wire Connector for 6 cables; 3 pcs.; incl. Terminal Cover Extended with probe holes for voltage test; accessory for: 3VA6 150/250 Plug-in/Draw-out Base 3VA6 150/250 |
| product designation | accessories |
| ● finely stranded | 14 - 8 AWG: 55 lb-in6 - 2 AWG: 62 lb-in |
| Product Lifecycle (PLM) | PM300:Active Product |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Standard lead time ex-works | 40 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| designation / of the terminal | TA2.6 |
| connectable conductor cross-section | |
| Article Number (Market Facing Number) | 3VA9243-0JF68 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ● for copper cable / solid / maximum | 10 AWG |
| ● for copper cable / solid / minimum | 14 AWG |
| ● for aluminum cable / solid / maximum | 16 mm² |
| ● for aluminum cable / solid / minimum | 1.5 mm² |
| ● for copper cable / stranded / maximum | 35 mm² |
| ● for copper cable / stranded / minimum | 1.5 mm² |
| ● for aluminum cable / stranded / maximum | 35 mm² |
| ● for aluminum cable / stranded / minimum | 1.5 mm² |
| tightening torque / when using copper cables | |
| ● for copper cable / finely stranded / maximum | 2 AWG |
| ● for copper cable / finely stranded / minimum | 14 AWG |
| Region Specific PriceGroup / Headquarter Price Group | 12P / 1CB |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2018 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| permissible temperature / of connectable conductor / according to UL 486A-486B | 75 °C |
