3VA9233-0JA12

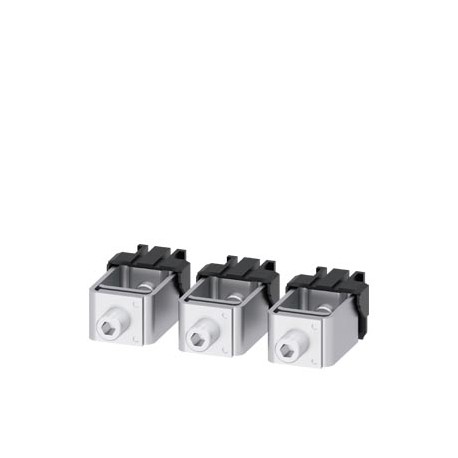

3VA9233-0JA12 SIEMENS box terminal 3 units accessory for: 3VA5 250
$0.00USD
3718 in stock
Key Specifications
:VersionClassificationeClass627-37-92-01eClass7.127-37-92-01eClass827-37-92-01eClass927-37-92-01eClass9.127-37-92-01ETIM5EC002498ETIM6EC002498ETIM7EC002498ETIM8EC002498
EAN:4042949016670
UPC:804766325939
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-92-01eClass7.127-37-92-01eClass827-37-92-01eClass927-37-92-01eClass9.127-37-92-01ETIM5EC002498ETIM6EC002498ETIM7EC002498ETIM8EC002498 | |
| EAN | 4042949016670 |
| UPC | 804766325939 |
| ETIM | 5 |
| eClass | 6 |
| Group Code | P360 |
| Accessories | Box terminal |
| Metal Factor | None |
| ● stranded | 4 - 1 AWG: 70 lb-in1/0 - 350 kcmil: 140 lb-in |
| Product Group | 5386 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369010 |
| Product family | 3VA Molded Case Circuit Breakers up to 1000 A, UL / IEC |
| last modified: | 4/6/2021 |
| Net Weight (kg) | 0,198 Kg |
| stripped length | 20 mm |
| Country of origin | China |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 120,00 x 190,00 x 30,00 |
| Product Description | box terminal 3 units accessory for: 3VA5 250 |
| product designation | accessories |
| ● finely stranded | 4 - 1 AWG: 70 lb-in1/0 - 350 kcmil: 140 lb-in |
| Product Lifecycle (PLM) | PM300:Active Product |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| designation / of the terminal | TS1.4 |
| connectable conductor cross-section | |
| thickness / of the busbar / maximum | 2x-6x[15.5x0.8] |
| Article Number (Market Facing Number) | 3VA9233-0JA12 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Type of accessory/spare part (EF000215) | - |
| ● for copper cable / stranded / maximum | 185 mm² |
| ● for copper cable / stranded / minimum | 25 mm² |
| tightening torque / when using copper cables | |
| ● for copper cable / finely stranded / maximum | 350 kcmil |
| ● for copper cable / finely stranded / minimum | 4 AWG |
| Region Specific PriceGroup / Headquarter Price Group | 12P / 1CB |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2016 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
Product Description
FRAME TERMINAL 3 PCS. ACCESSORY FOR: 3VA5 250. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
