3VA9214-0JJ13

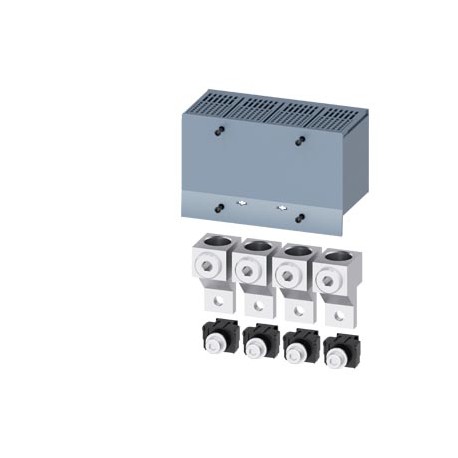

3VA9214-0JJ13 SIEMENS wire connector large 4 units accessory for: 3VA1 250
$0.00USD
4729 in stock
Key Specifications
:VersionClassificationeClass627-37-92-01eClass7.127-37-92-01eClass827-37-92-01eClass927-37-92-01eClass9.127-37-92-01ETIM5EC002498ETIM6EC002498ETIM7EC002498ETIM8EC002498
EAN:4042949010623
UPC:804766450853
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-92-01eClass7.127-37-92-01eClass827-37-92-01eClass927-37-92-01eClass9.127-37-92-01ETIM5EC002498ETIM6EC002498ETIM7EC002498ETIM8EC002498 | |
| EAN | 4042949010623 |
| UPC | 804766450853 |
| ETIM | 5 |
| eClass | 6 |
| Group Code | P360 |
| Accessories | Wire connector |
| Metal Factor | None |
| ● stranded | 2 AWG - 350 kcmil: 275 lb-in |
| Product Group | 5376 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389099 |
| Product family | Accessories and Spare Parts 3VA9, for IEC Circuit Breakers up to 1250A |
| last modified: | 12/20/2020 |
| Net Weight (kg) | 0,638 Kg |
| Product version | circular conductor terminal |
| stripped length | 30,5 mm |
| Country of origin | United States of America |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 101,00 x 145,00 x 75,00 |
| Product Description | wire connector large 4 units accessory for: 3VA1 250 |
| product designation | accessories |
| ● finely stranded | 2 AWG - 350 kcmil: 275 lb-in |
| Product Lifecycle (PLM) | PM300:Active Product |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Standard lead time ex-works | 30 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| designation / of the terminal | TA2.2 |
| connectable conductor cross-section | |
| Article Number (Market Facing Number) | 3VA9214-0JJ13 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Type of accessory/spare part (EF000215) | - |
| ● for copper cable / stranded / maximum | 240 mm² |
| ● for copper cable / stranded / minimum | 50 mm² |
| ● for aluminum cable / stranded / maximum | 240 mm² |
| ● for aluminum cable / stranded / minimum | 50 mm² |
| tightening torque / when using copper cables | |
| ● for copper cable / finely stranded / maximum | 350 kcmil |
| ● for copper cable / finely stranded / minimum | 2 AWG |
| Region Specific PriceGroup / Headquarter Price Group | 12P / 1CB |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2014 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| ● for copper cable / finely stranded / with core end processing / maximum | 185 |
| ● for copper cable / finely stranded / with core end processing / minimum | 50 |
| permissible temperature / of connectable conductor / according to UL 486A-486B | 75 °C |
Product Description
LARGE ROUND CONDUCTOR TERMINAL 4 UNITS ACCESSORY FOR: 3VA1 250. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
