3VA9214-0JF60

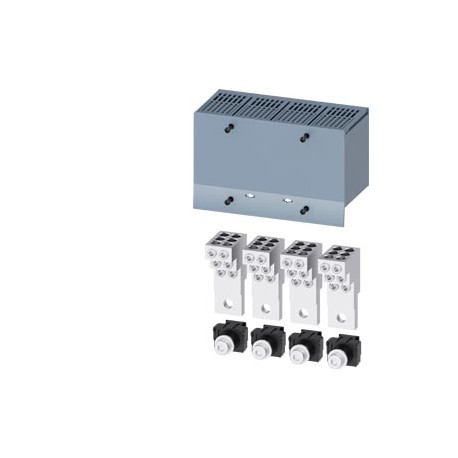

3VA9214-0JF60 SIEMENS distribution wire connector 6 cables 4 units accessory for: 3VA1 250
$0.00USD
3372 in stock
Key Specifications
:VersionClassificationeClass627-37-92-01eClass7.127-37-92-01eClass827-37-92-01eClass927-37-92-01eClass9.127-37-92-01ETIM5EC002498ETIM6EC002498ETIM7EC002498ETIM8EC002498
EAN:4042949008866
UPC:804766451362
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-92-01eClass7.127-37-92-01eClass827-37-92-01eClass927-37-92-01eClass9.127-37-92-01ETIM5EC002498ETIM6EC002498ETIM7EC002498ETIM8EC002498 | |
| EAN | 4042949008866 |
| UPC | 804766451362 |
| ETIM | 5 |
| eClass | 6 |
| ● solid | 1.5 mm²: 2.8 Nm,2.5 - 10 mm²: 6.2 Nm16 mm²: 7 Nm |
| Group Code | P360 |
| Accessories | Wire connector |
| Metal Factor | None |
| ● stranded | 14 - 8 AWG: 55 lb-in6 - 2 AWG: 62 lb-in |
| Product Group | 5376 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389099 |
| Product family | Accessories and Spare Parts 3VA9, for IEC Circuit Breakers up to 1250A |
| last modified: | 4/6/2021 |
| Net Weight (kg) | 0,585 Kg |
| stripped length | 13.5 / 26 / 38.5 mm |
| Country of origin | United States of America |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 101,00 x 145,00 x 75,00 |
| Product Description | distribution wire connector 6 cables 4 units accessory for: 3VA1 250 |
| product designation | accessories |
| ● finely stranded | 14 - 8 AWG: 55 lb-in6 - 2 AWG: 62 lb-in |
| Product Lifecycle (PLM) | PM300:Active Product |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Standard lead time ex-works | 40 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| designation / of the terminal | TA2.6 |
| connectable conductor cross-section | |
| Article Number (Market Facing Number) | 3VA9214-0JF60 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ● for copper cable / solid / maximum | 10 AWG |
| ● for copper cable / solid / minimum | 14 AWG |
| Type of accessory/spare part (EF000215) | - |
| ● for aluminum cable / solid / maximum | 16 mm² |
| ● for aluminum cable / solid / minimum | 1.5 mm² |
| ● for copper cable / stranded / maximum | 35 mm² |
| ● for copper cable / stranded / minimum | 1.5 mm² |
| ● for aluminum cable / stranded / maximum | 35 mm² |
| ● for aluminum cable / stranded / minimum | 1.5 mm² |
| tightening torque / when using copper cables | |
| ● for copper cable / finely stranded / maximum | 2 AWG |
| ● for copper cable / finely stranded / minimum | 14 AWG |
| Region Specific PriceGroup / Headquarter Price Group | 12P / 1CB |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2014 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| ● for copper cable / finely stranded / with core end processing / maximum | 25 |
| permissible temperature / of connectable conductor / according to UL 486A-486B | 75 °C |
Product Description
ROUND CONDUCTOR TERMINAL 6 CABLES 4 ACCESSORY UNITS FOR: 3VA1 250. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
