3VA9143-0JD11

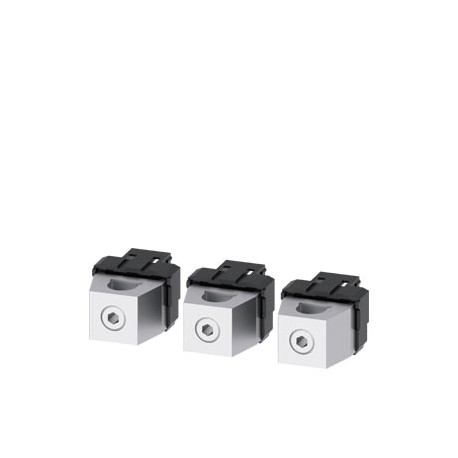

3VA9143-0JD11 SIEMENS wire connector CU 3 units accessory for: 3VA6 150/250
$0.00USD
3541 in stock
Key Specifications
:VersionClassificationeClass627-37-92-01eClass7.127-37-92-01eClass827-37-92-01eClass927-37-92-01eClass9.127-37-92-01ETIM5EC002498ETIM6EC002498ETIM7EC002498ETIM8EC002498
EAN:4042949016328
UPC:804766325564
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-92-01eClass7.127-37-92-01eClass827-37-92-01eClass927-37-92-01eClass9.127-37-92-01ETIM5EC002498ETIM6EC002498ETIM7EC002498ETIM8EC002498 | |
| EAN | 4042949016328 |
| UPC | 804766325564 |
| ETIM | 5 |
| eClass | 6 |
| Group Code | P360 |
| Accessories | Wire connector |
| Metal Factor | L-A----- |
| ● stranded | 14 - 8 AWG: 55.0 lb-in6 - 2 AWG: 75 lb-in1 AWG - 1/0: 120 lb-in |
| Product Group | 5386 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369095 |
| Product family | 3VA Molded Case Circuit Breakers up to 1000 A, UL / IEC |
| last modified: | 4/6/2021 |
| Net Weight (kg) | 0,228 Kg |
| Product version | circular conductor terminal |
| stripped length | 18 mm |
| Country of origin | Poland |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 170,00 x 120,00 x 25,00 |
| Product Description | wire connector CU 3 units accessory for: 3VA6 150/250 |
| product designation | accessories |
| ● finely stranded | 14 - 8 AWG: 55.0 lb-in6 - 2 AWG: 75 lb-in1 AWG - 1/0: 120 lb-in |
| Product Lifecycle (PLM) | PM300:Active Product |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| designation / of the terminal | TC1.3 |
| connectable conductor cross-section | |
| Article Number (Market Facing Number) | 3VA9143-0JD11 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ● for copper cable / solid / maximum | 10 AWG |
| ● for copper cable / solid / minimum | 14 AWG |
| Type of accessory/spare part (EF000215) | - |
| ● for copper cable / stranded / maximum | 1/0 AWG |
| ● for copper cable / stranded / minimum | 14 AWG |
| tightening torque / when using copper cables | |
| ● for copper cable / finely stranded / maximum | 1/0 AWG |
| ● for copper cable / finely stranded / minimum | 14 AWG |
| Region Specific PriceGroup / Headquarter Price Group | 12P / 1CB |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2016 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| permissible temperature / of connectable conductor / according to UL 486A-486B | 90 °C |
Product Description
TERMINAL FOR ROUND CONDUCTOR CU 3 PCS. ACCESSORY FOR: 3VA6 150/250. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
