3VA9114-0JJ12

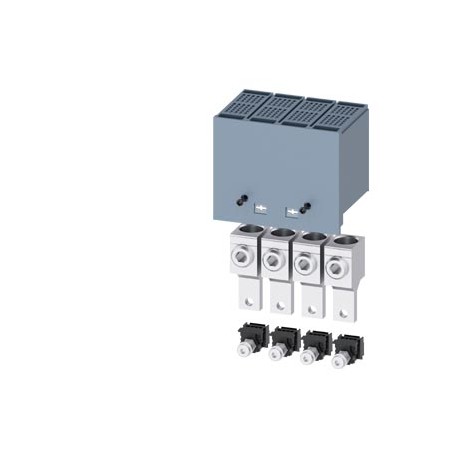

3VA9114-0JJ12 SIEMENS wire connector large 4 units accessory for: 3VA1 100/160
$0.00USD
3172 in stock
Key Specifications
:VersionClassificationeClass627-37-92-01eClass7.127-37-92-01eClass827-37-92-01eClass927-37-92-01eClass9.127-37-92-01ETIM5EC002498ETIM6EC002498ETIM7EC002498ETIM8EC002498
EAN:4042949010616
UPC:804766450884
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-92-01eClass7.127-37-92-01eClass827-37-92-01eClass927-37-92-01eClass9.127-37-92-01ETIM5EC002498ETIM6EC002498ETIM7EC002498ETIM8EC002498 | |
| EAN | 4042949010616 |
| UPC | 804766450884 |
| ETIM | 5 |
| eClass | 6 |
| Group Code | P360 |
| Accessories | Wire connector |
| Metal Factor | None |
| ● stranded | 4 AWG - 350 kcmil: 252 lb-in |
| Product Group | 5376 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389099 |
| Product family | Accessories and Spare Parts 3VA9, for IEC Circuit Breakers up to 1250A |
| last modified: | 3/25/2022 |
| Net Weight (kg) | 0,444 Kg |
| Product version | circular conductor terminal |
| stripped length | 30,5 mm |
| Country of origin | United States of America |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 92,00 x 108,00 x 75,00 |
| Product Description | wire connector large 4 units accessory for: 3VA1 100/160 |
| product designation | accessories |
| ● finely stranded | 4 AWG - 350 kcmil: 252 lb-in |
| Product Lifecycle (PLM) | PM300:Active Product |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| designation / of the terminal | TA2.1 |
| connectable conductor cross-section | |
| Article Number (Market Facing Number) | 3VA9114-0JJ12 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Type of accessory/spare part (EF000215) | - |
| ● for copper cable / stranded / maximum | 150 mm² |
| ● for copper cable / stranded / minimum | 25 mm² |
| ● for aluminum cable / stranded / maximum | 150 mm² |
| ● for aluminum cable / stranded / minimum | 25 mm² |
| tightening torque / when using copper cables | |
| ● for copper cable / finely stranded / maximum | 300 kcmil |
| ● for copper cable / finely stranded / minimum | 4 AWG |
| Region Specific PriceGroup / Headquarter Price Group | 12P / 1CB |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.04.2014 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| ● for copper cable / finely stranded / with core end processing / maximum | 95 |
| ● for copper cable / finely stranded / with core end processing / minimum | 25 |
| permissible temperature / of connectable conductor / according to UL 486A-486B | 75 °C |
Product Description
GROSS ROUND CONDUCTOR TERMINAL 4 PC. ACCESSORY FOR: 3VA1 100/160. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
