3VA9113-0RL20

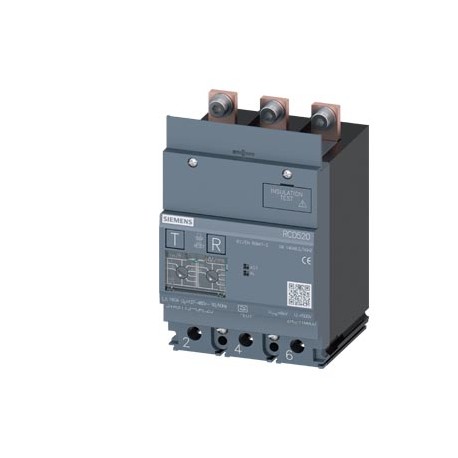

3VA9113-0RL20 SIEMENS residual current device RCD520 Basic RCD type A load side mounted rated resid. current..
$0.00USD
3362 in stock
Key Specifications
:
EAN:4042949002000
UPC:804766449178
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4042949002000 |
| UPC | 804766449178 |
| ETIM | 5 |
| Width | 76.2 mm |
| depth | 70 mm |
| Height | 100 mm |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | P360 |
| net weight | 778 g |
| ● maximum | 70 °C |
| ● minimum | -25 °C |
| Metal Factor | L-A----- |
| Product Group | 5376 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85363090 |
| Product family | Accessories and Spare Parts 3VA9, for IEC Circuit Breakers up to 1250A |
| last modified: | 12/20/2020 |
| Net Weight (kg) | 0,752 Kg |
| Product version | Residual current protection module type A |
| Rated frequency | 60 Hz |
| number of poles | 3 |
| fastening method | screw fixing |
| Country of origin | China |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 91,00 x 134,00 x 117,00 |
| Product Description | residual current device RCD520 Basic RCD type A load side mounted rated resid. current 0.03...5A at 50/60Hz adjustable tv 0...3000ms 3-pole In=160A Ue=100-480V accessory for: 3VA1 |
| product designation | Accessories |
| Product Lifecycle (PLM) | PM300:Active Product |
| power loss [W] / maximum | 6.1 W |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Current / at AC / rated value | 160 A |
| ● Fonctionnalité/plombable | Yes |
| protection class IP / on the front | IP40 |
| type of trip indicator / electrical | Yes |
| Article Number (Market Facing Number) | 3VA9113-0RL20 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| type of trip indicator / communication | No |
| Type of accessory/spare part (EF000215) | Other |
| response value / of the residual current | 0.03;0.05;0.1;0.3;0.5;1;3;5 |
| position / of the infeed / on the RCD component | Top or bottom |
| ● product function / remote-controlled tripping | No |
| Region Specific PriceGroup / Headquarter Price Group | 12P / 1CB |
| set values / of the limit value of not tripping time | 0;0.06;0.15;0.3;0.5;1.0;2.0;3.0 |
| ● product function / integrated / alarm management | Yes |
| type of electrical connection / for main current circuit | busbar connection |
| ● product function / selectable RCD or monitoring mode | No |
| ● product function / selectable tripping characteristic | No |
| product function / communication with residual current equipment | No |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.04.2014 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
Product Description
PROTEC UNIT. DIFFERENTIAL RCD520 BASIC RCD TYPE A MOUNTED DOWN RATED SENSITIVITY 0,03...5A WITH 50/60HZ EINSTELLBARER TV 0...1000MSEK 3- POLIG IN=160A UE=100-480V ACCESSORY FOR: 3VA1. Cancelations and
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
