3VA5450-5EC41-0AA0

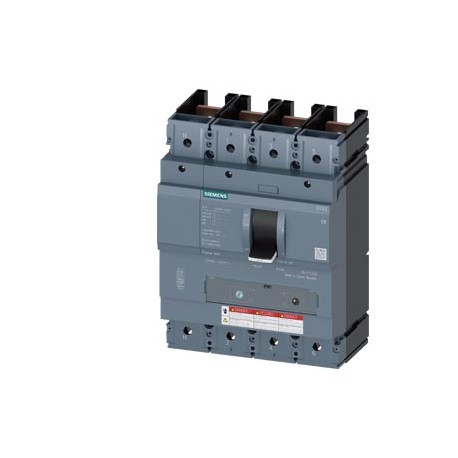

3VA5450-5EC41-0AA0 SIEMENS CIRCUIT BREAKER 3VA5 UL Frame 600 BREAKING CAPACITY CLASS M 35kA @ 480 V 4POLE, L..
$0.00USD
3837 in stock
Key Specifications
:Confirmation
EAN:4042949088615
UPC:804766792687
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4042949088615 |
| UPC | 804766792687 |
| ETIM | 5 |
| IDEA | 4 |
| Width | 184 mm |
| depth | 110 mm |
| Height | 248 mm |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | P360 |
| Net Weight | 6.82 kg |
| depth [in] | 4.33 in |
| width [in] | 7.24 in |
| height [in] | 9.76 in |
| Date5/4/2022 | |
| Metal Factor | LOA----- |
| ● at 240 V | 85 kA |
| ● at 415 V | 55 kA |
| ● at 480 V | 35 kA |
| ● at 600 V | 18 kA |
| ● at 690 V | 7 kA |
| Miscellaneous | |
| Product Group | 5385 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| ● at 40 °C | 500 A |
| ● at 45 °C | 488 A |
| ● at 50 °C | 476 A |
| ● at 55 °C | 464 A |
| ● at 60 °C | 451 A |
| ● at 65 °C | 439 A |
| ● at 70 °C | 427 A |
| Commodity Code | 85362090 |
| Product family | 3VA Molded Case Circuit Breakers up to 1000 A, UL / IEC |
| last modified: | 10/21/2021 |
| Net Weight (kg) | 6,820 Kg |
| Product version | System protection |
| number of poles | 4 |
| product function | |
| Country of origin | Czech Republic |
| Marine / Shipping | other |
| product component | |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| ● trip indicator | No |
| Packaging Dimension | 208,00 x 261,00 x 170,00 |
| Product Description | CIRCUIT BREAKER 3VA5 UL Frame 600 BREAKING CAPACITY CLASS M 35kA @ 480 V 4POLE, LINE PROTECTION TM230, FTAM, In=500A OVERLOAD PROTECTION IR=500A FIXED SHORT CIRCUIT PROTECTION Ii=5...10 x In NEUTRAL UNPROTECTED W/O CONNECTION |
| ambient temperature | |
| operational current | |
| product designation | Molded-case circuit breaker |
| ● voltage trigger | No |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | EMC |
| power loss [W] / maximum | 122 W |
| ● undervoltage release | No |
| breaking capacity current | |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| ● communication function | No |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| rated insulation voltage Ui | 800 V |
| Package size unit of measure | MM |
| ● during storage / maximum | 80 °C |
| ● during storage / minimum | -40 °C |
| ● during operation / maximum | 70 °C |
| ● during operation / minimum | -25 °C |
| ● other measurement function | No |
| design of the overcurrent release | TM230 |
| design of short-circuit protection | For switching power values in DC networks, see the 3VA molded case circuit breaker device manual; link to be found under Service & Support in the last chapter |
| protection class IP / on the front | IP40 |
| design of the N-conductor protection | Without |
| Article Number (Market Facing Number) | 3VA5450-5EC41-0AA0 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Max. rated operational voltage Ue with DC | 600 V |
| reference code / according to IEC 81346-2 | Q |
| product designation / according to UL file | MLAS |
| product extension / optional / motor drive | Yes |
| Adjustable response value current / lg min. | 500 A |
| short-circuit current making capacity (Icm) | |
| Neutral conductors / upgradeable/retrofittable | No |
| number of CO contacts / for auxiliary contacts | 0 |
| protection function of the overcurrent release | LI |
| switching capacity class of the circuit breaker | M |
| electrical endurance (switching cycles) / at 480 V | 4 000 |
| electrical endurance (switching cycles) / at 600 V | 2 700 |
| marking / according to UL 489 / 100%-rated breaker | No |
| Region Specific PriceGroup / Headquarter Price Group | 12P / 1CB |
| mechanical service life (switching cycles) / typical | 20 000 |
| breaking capacity maximum short-circuit current (Icu) | |
| breaking capacity operating short-circuit current (Ics) | |
| type of electrical connection / for main current circuit | Without |
| Ground fault protection / tripping switchable / I2t=ON/OFF | No |
| arrangement of electrical connectors / for main current circuit | Without connection |
| Electrical endurance (switching cycles) / at AC-1 / at 690 V 50/60 Hz | 2 700 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.11.2018 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| Electrical endurance (switching cycles) / at AC-1 / at 380/415 V 50/60 Hz | 4 000 |
| certificate of suitability / as approval for NAVAL (no combat vessels) / supplement SB | No |
| design of the load switch / according to UL 489 / Switching Duty circuit breaker (SWD Type) | No |
| Active power loss / for rated value of the current / at AC / in hot operating state / per pole | 40.77 W |
| design of the load switch / according to UL 489 / High-Intensity-Discharge circuit breaker (HID Type) | No |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| General Product ApprovalConfirmationGeneral Product ApprovalEMCDeclaration of ConformityMarine / ShippingMiscellaneousUK Declaration of ConformityMarine / ShippingotherMiscellaneousMiscellaneous | General Product Approval |
Product Description
Circuit breaker 3VA5 UL size 600 Cutting power class M 35 kA @ 480 V 4 poles, distribution protection TM230, FTAM, In=500 A overload protection Ir=500 A invariable short circuit protection Ii=5...10 x
