3VA5191-1MU31-0AA0

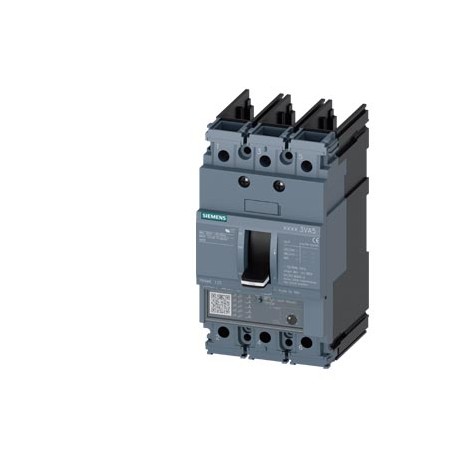

3VA5191-1MU31-0AA0 SIEMENS circuit breaker 3VA5 UL frame 125 3-pole, starter protection TM120M, AM, In 10A w..
$0.00USD
3683 in stock
Key Specifications
:Confirmation
EAN:4042948843451
UPC:804766780264
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4042948843451 |
| UPC | 804766780264 |
| ETIM | 5 |
| IDEA | 4 |
| Width | 76.2 mm |
| depth | 76.5 mm |
| Height | 140 mm |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | P360 |
| Net Weight | 740 g |
| depth [in] | 3.01 in |
| width [in] | 3 in |
| height [in] | 5.51 in |
| Metal Factor | LOA----- |
| ● at 240 V | 150 kA |
| ● at 415 V | 70 kA |
| ● at 690 V | 10 kA |
| Date5/13/2022 | |
| Product Group | 5385 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| ● at 40 °C | 10 A |
| ● at 45 °C | 10 A |
| ● at 50 °C | 10 A |
| ● at 55 °C | 10 A |
| ● at 60 °C | 10 A |
| ● at 65 °C | 10 A |
| ● at 70 °C | 10 A |
| Commodity Code | 85362010 |
| Product family | 3VA Molded Case Circuit Breakers up to 1000 A, UL / IEC |
| last modified: | 10/21/2021 |
| Net Weight (kg) | 0,740 Kg |
| Product version | Starter protection |
| number of poles | 3 |
| product function | |
| Country of origin | Czech Republic |
| Marine / Shipping | other |
| product component | |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| ● trip indicator | No |
| Packaging Dimension | 86,00 x 151,00 x 122,00 |
| Product Description | circuit breaker 3VA5 UL frame 125 3-pole, starter protection TM120M, AM, In=10A without overload protection short-circuit protection Ii=3...7 x In without connection |
| ambient temperature | |
| operational current | |
| product designation | Molded-case circuit breaker |
| ● voltage trigger | No |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | EMC |
| power loss [W] / maximum | 6 W |
| ● undervoltage release | No |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| ● communication function | No |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| rated insulation voltage Ui | 800 V |
| ● phase failure detection | No |
| Package size unit of measure | MM |
| ● during storage / maximum | 80 °C |
| ● during storage / minimum | -40 °C |
| ● during operation / maximum | 70 °C |
| ● during operation / minimum | -25 °C |
| ● other measurement function | No |
| design of the overcurrent release | TM120M |
| protection class IP / on the front | IP40 |
| Article Number (Market Facing Number) | 3VA5191-1MU31-0AA0 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| reference code / according to IEC 81346-2 | Q |
| product designation / according to UL file | HEAP |
| product extension / optional / motor drive | Yes |
| short-circuit current making capacity (Icm) | |
| Neutral conductors / upgradeable/retrofittable | No |
| number of CO contacts / for auxiliary contacts | 0 |
| protection function of the overcurrent release | I |
| electrical endurance (switching cycles) / at 480 V | 8 000 |
| electrical endurance (switching cycles) / at 600 V | 4 000 |
| marking / according to UL 489 / 100%-rated breaker | No |
| Region Specific PriceGroup / Headquarter Price Group | 12P / 1CB |
| mechanical service life (switching cycles) / typical | 20 000 |
| breaking capacity maximum short-circuit current (Icu) | |
| breaking capacity operating short-circuit current (Ics) | |
| type of electrical connection / for main current circuit | Without |
| Ground fault protection / tripping switchable / I2t=ON/OFF | No |
| arrangement of electrical connectors / for main current circuit | Without connection |
| Electrical endurance (switching cycles) / at AC-1 / at 690 V 50/60 Hz | 4 000 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2016 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| Electrical endurance (switching cycles) / at AC-1 / at 380/415 V 50/60 Hz | 8 000 |
| certificate of suitability / as approval for NAVAL (no combat vessels) / supplement SB | No |
| design of the load switch / according to UL 489 / Switching Duty circuit breaker (SWD Type) | No |
| Active power loss / for rated value of the current / at AC / in hot operating state / per pole | 2.07 W |
| design of the load switch / according to UL 489 / High-Intensity-Discharge circuit breaker (HID Type) | No |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| General Product ApprovalConfirmationMiscellaneousGeneral Product ApprovalEMCDeclaration of ConformityTest CertificatesUK Declaration of ConformityMiscellaneousSpecial Test CertificateMarine / ShippingotherMiscellaneousMiscellaneous | General Product Approval |
Product Description
3VA5 UL circuit breaker size 125 3 poles, starter protection TM120M, AM, In=10 A without overload protection short circuit protection Ii=3...7 × In No connection. Manufactured to order. Non-Cancelable
