In Stock Hot Product

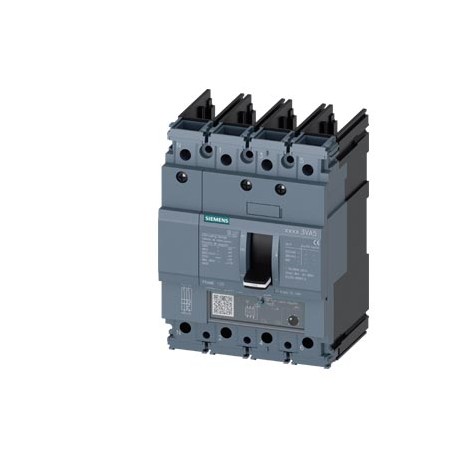

3VA5110-5GC41-0AA0
3VA5110-5GC41-0AA0 SIEMENS circuit breaker 3VA5 UL frame 125 breaking capacity class M 35kA @ 480 V 4-pole, ..
$0.00USD
4902 in stock
Key Specifications
:VersionClassificationeClass627-37-04-09eClass7.127-37-04-09eClass827-37-04-09eClass927-37-04-09eClass9.127-37-04-09ETIM5EC000228ETIM6EC000228ETIM7EC000228ETIM8EC000228IDEA44850UNSPSC1539-12-16-01
EAN:4042948842782
UPC:804766777356
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-04-09eClass7.127-37-04-09eClass827-37-04-09eClass927-37-04-09eClass9.127-37-04-09ETIM5EC000228ETIM6EC000228ETIM7EC000228ETIM8EC000228IDEA44850UNSPSC1539-12-16-01 | |
| EAN | 4042948842782 |
| UPC | 804766777356 |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | P360 |
| Metal Factor | LOA----- |
| Product Group | 5385 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85362090 |
| Product family | 3VA Molded Case Circuit Breakers up to 1000 A, UL / IEC |
| Net Weight (kg) | 0,952 Kg |
| Country of origin | Czech Republic |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| Packaging Dimension | 119,00 x 150,00 x 122,00 |
| Product Description | circuit breaker 3VA5 UL frame 125 breaking capacity class M 35kA @ 480 V 4-pole, line protection TM230, FTAM, In=100A overload protection Ir=100A fixed short-circuit protection Ii=5...10 x In N conductor protection 100% without connection |
| Product Lifecycle (PLM) | PM300:Active Product |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Standard lead time ex-works | 9 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Article Number (Market Facing Number) | 3VA5110-5GC41-0AA0 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Region Specific PriceGroup / Headquarter Price Group | 12P / 1CB |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2016 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
Product Description
Circuit Breaker 3VA5 UL size 125 Cutting power class M 35 kA @ 480 V 4 poles, TM230 distribution protection, FTAM, In=100 A overload protection Ir=100 A invariable short circuit protection Ii=5...10 ×
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
