3VA2563-6HK32-0AA0

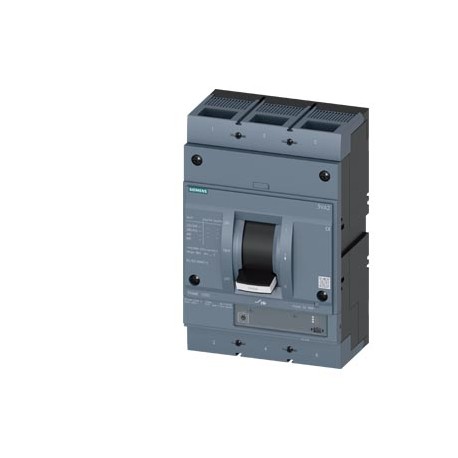

3VA2563-6HK32-0AA0 SIEMENS circuit breaker 3VA2 IEC frame 1000 breaking capacity class H Icu 85kA @ 415V 3-p..
$0.00USD
3010 in stock
Key Specifications
:Confirmation
EAN:4042948835623
UPC:195125111776
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4042948835623 |
| UPC | 195125111776 |
| ETIM | 5 |
| IDEA | 4 |
| Width | 210 mm |
| depth | 120 mm |
| Height | 320 mm |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | P360 |
| Net Weight | 11.34 kg |
| depth [in] | 4.72 in |
| width [in] | 8.27 in |
| height [in] | 12.6 in |
| Date5/8/2022 | |
| Metal Factor | LPB----- |
| ● at 240 V | 110 kA |
| ● at 415 V | 85 kA |
| ● at 440 V | 85 kA |
| ● at 500 V | 55 kA |
| ● at 690 V | 35 kA |
| Miscellaneous | |
| Product Group | 5374 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| ● at 40 °C | 630 A |
| ● at 45 °C | 630 A |
| ● at 50 °C | 630 A |
| ● at 55 °C | 630 A |
| ● at 60 °C | 630 A |
| ● at 65 °C | 630 A |
| ● at 70 °C | 630 A |
| Commodity Code | 85362090 |
| Product family | 3VA Molded Case Circuit Breakers up to 1600 A, IEC |
| last modified: | 10/8/2021 |
| Net Weight (kg) | 11,340 Kg |
| Product version | Line protection |
| number of poles | 3 |
| product function | |
| Country of origin | Czech Republic |
| Marine / Shipping | other |
| product component | |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| ● trip indicator | No |
| Packaging Dimension | 318,00 x 365,00 x 178,00 |
| Product Description | circuit breaker 3VA2 IEC frame 1000 breaking capacity class H Icu=85kA @ 415V 3-pole, line protection ETU340, ELISA LI, In=630A overload protection Ir=250A...630A short-circuit protection Ii=12 x In nut keeper kit |
| ambient temperature | |
| operational current | |
| product designation | Molded case circuit breaker |
| ● voltage trigger | No |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | EMC |
| Rated voltage (EF003977) | ['690', '690'] |
| power loss [W] / maximum | 144 W |
| ● undervoltage release | No |
| Declaration of Conformity | Test Certificates |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Number of poles (EF001391) | 3 |
| ● communication function | No |
| Standard lead time ex-works | 30 Day/Days |
| Surcharge for Raw Materials | None |
| rated insulation voltage Ui | 800 V |
| Package size unit of measure | MM |
| UK Declaration of Conformity | |
| ● during storage / maximum | 80 °C |
| ● during storage / minimum | -40 °C |
| Courant permanent assigné Iu | 630 A |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| ● during operation / maximum | 70 °C |
| ● during operation / minimum | -25 °C |
| ● other measurement function | No |
| Motor drive optional (EF007386) | - |
| ground-fault monitoring version | Without |
| Motor drive integrated (EF006697) | false |
| design of the overcurrent release | ETU340 |
| Type of control element (EF006976) | Rocker lever |
| protection class IP / on the front | IP40 |
| Degree of protection (IP) (EF005474) | IP40 |
| Article Number (Market Facing Number) | 3VA2563-6HK32-0AA0 |
| Rated permanent current Iu (EF001389) | 630.0 |
| With under voltage release (EF007518) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| With switched-off indicator (EF007006) | - |
| reference code / according to IEC 81346-2 | Q |
| product extension / optional / motor drive | No |
| Adjustable response value current / li max. | 7 560 A |
| Adjustable response value current / li min. | 7 560 A |
| Overload release current setting (EF002336) | ['250', '630'] |
| short-circuit current making capacity (Icm) | |
| Integrated earth fault protection (EF007296) | false |
| Neutral conductors / upgradeable/retrofittable | No |
| number of CO contacts / for auxiliary contacts | 0 |
| protection function of the overcurrent release | ELISA LI |
| Complete device with protection unit (EF008906) | true |
| switching capacity class of the circuit breaker | H |
| Max. rated operational current of the frame size | 1 000 A |
| DIN rail (top hat rail) mounting optional (EF008904) | true |
| Region Specific PriceGroup / Headquarter Price Group | 12P / 1CB |
| mechanical service life (switching cycles) / typical | 10 000 |
| breaking capacity maximum short-circuit current (Icu) | |
| breaking capacity operating short-circuit current (Ics) | |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | true |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| type of electrical connection / for main current circuit | on both sides nut keeper kit |
| Ground fault protection / tripping switchable / I2t=ON/OFF | No |
| Position of connection for main current circuit (EF006671) | Front side |
| Adjustment range undelayed short-circuit release (EF007131) | ['7560', '7560'] |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| arrangement of electrical connectors / for main current circuit | Front terminal |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Adjustment range short-term delayed short-circuit release (EF007129) | ['-', '-'] |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (EF007048) | 85.0 |
| Electrical endurance (switching cycles) / at AC-1 / at 690 V 50/60 Hz | 3 200 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2016 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Silicic acid, lead s... CAS-No. 11120-22-2 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Silicic acid, lead saltBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| Electrical endurance (switching cycles) / at AC-1 / at 380/415 V 50/60 Hz | 4 600 |
| Type of connectable conductor cross-section, connection screw, width x thickness , max. | 50 x 28 mm |
| Type of connectable conductor cross-section, connection screw, width x thickness , min. | 20 x 4 mm |
| Active power loss / for rated value of the current / at AC / in hot operating state / per pole | 48 W |
| General Product ApprovalEMCConfirmationMiscellaneousDeclaration of ConformityTest CertificatesMarine / ShippingUK Declaration of ConformityType Test Certificates/Test ReportMiscellaneousSpecial Test CertificateMarine / ShippingotherCCS / China Classification SocietyMiscellaneousotherMiscellaneous | General Product Approval |
Product Description
Circuit Breaker 3VA2 IEC size 1000 Cutting power class H Icu=85 kA @ 415V 3 poles, distribution protection ETU340, ELISA LI, In=630 A overload protection Ir=250 A... 630 A short circuit protection Ii=
