3VA2163-5MP36-0AA0

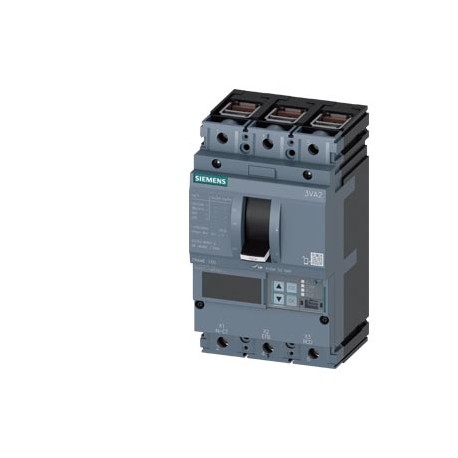

3VA2163-5MP36-0AA0 SIEMENS CIRCUIT BREAKER 3VA2 IEC FRAME 160 BREAKING CAPACITY CLASS M ICU 55KA @ 415 V 3-P..
$0.00USD
3360 in stock
Key Specifications
:
EAN:4042948903810
EMC:Declaration of Conformity
UPC:804766886188
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4042948903810 |
| EMC | Declaration of Conformity |
| UPC | 804766886188 |
| ETIM | 5 |
| IDEA | 4 |
| Width | 105 mm |
| depth | 86 mm |
| Height | 181 mm |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | P360 |
| Net Weight | 2.13 kg |
| depth [in] | 3.39 in |
| width [in] | 4.13 in |
| height [in] | 7.13 in |
| Confirmation | |
| Date5/5/2022 | |
| Metal Factor | LOA----- |
| ● at 240 V | 85 kA |
| ● at 415 V | 55 kA |
| ● at 440 V | 55 kA |
| ● at 500 V | 36 kA |
| ● at 690 V | 2.5 kA |
| Product Group | 5374 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| ● at 40 °C | 63 A |
| ● at 45 °C | 63 A |
| ● at 50 °C | 63 A |
| ● at 55 °C | 63 A |
| ● at 60 °C | 63 A |
| ● at 65 °C | 63 A |
| ● at 70 °C | 63 A |
| Commodity Code | 85362090 |
| Product family | 3VA Molded Case Circuit Breakers up to 1600 A, IEC |
| last modified: | 10/2/2021 |
| Net Weight (kg) | 2,130 Kg |
| Product version | Motor protection |
| number of poles | 3 |
| product function | |
| Country of origin | Czech Republic |
| Marine / Shipping | other |
| product component | |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| ● trip indicator | No |
| Packaging Dimension | 134,00 x 200,00 x 145,00 |
| Product Description | CIRCUIT BREAKER 3VA2 IEC FRAME 160 BREAKING CAPACITY CLASS M ICU=55KA @ 415 V 3-POLE, MOTOR PROTECTION ETU550M, LSI, In=63A OVERLOAD PROTECTION IR=25,2A ...63A SHORT CIRCUIT PROTECTION ISD=1,2... 15X IN,II=3...15X IN CABLE CONNECTION |
| ambient temperature | |
| operational current | |
| product designation | Molded case circuit breaker |
| ● voltage trigger | No |
| Product Lifecycle (PLM) | PM300:Active Product |
| power loss [W] / maximum | 4 W |
| ● undervoltage release | No |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| ● communication function | Yes |
| Standard lead time ex-works | 15 Day/Days |
| Surcharge for Raw Materials | None |
| rated insulation voltage Ui | 800 V |
| ● phase failure detection | Yes |
| Package size unit of measure | MM |
| ● during storage / maximum | 80 °C |
| ● during storage / minimum | -40 °C |
| Courant permanent assigné Iu | 63 A |
| ● during operation / maximum | 70 °C |
| ● during operation / minimum | -25 °C |
| ● other measurement function | No |
| ground-fault monitoring version | Without |
| design of the overcurrent release | ETU550M |
| protection class IP / on the front | IP40 |
| operating power / at AC-3 / at 230 V | 18 500 W |
| operating power / at AC-3 / at 400 V | 30 000 W |
| Article Number (Market Facing Number) | 3VA2163-5MP36-0AA0 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| reference code / according to IEC 81346-2 | Q |
| product extension / optional / motor drive | Yes |
| Adjustable response value current / li max. | 945 A |
| Adjustable response value current / li min. | 189 A |
| short-circuit current making capacity (Icm) | |
| Neutral conductors / upgradeable/retrofittable | No |
| number of CO contacts / for auxiliary contacts | 0 |
| protection function of the overcurrent release | LSI |
| switching capacity class of the circuit breaker | M |
| Max. rated operational current of the frame size | 160 A |
| Region Specific PriceGroup / Headquarter Price Group | 12P / 1CB |
| mechanical service life (switching cycles) / typical | 25 000 |
| breaking capacity maximum short-circuit current (Icu) | |
| breaking capacity operating short-circuit current (Ics) | |
| type of electrical connection / for main current circuit | double-sided box terminal |
| Ground fault protection / tripping switchable / I2t=ON/OFF | No |
| arrangement of electrical connectors / for main current circuit | Front terminal |
| Electrical endurance (switching cycles) / at AC-1 / at 690 V 50/60 Hz | 9 800 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2017 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Silicic acid, lead s... CAS-No. 11120-22-2 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Silicic acid, lead saltBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| Electrical endurance (switching cycles) / at AC-1 / at 380/415 V 50/60 Hz | 14 000 |
| Electrical endurance (switching cycles) / at AC-3 / at 380/415 V 50/60 Hz | 7 500 |
| Type of connectable conductor cross-section, round conductor terminal, stranded | 1 x (6-120 mm²) |
| design of the surface / of the connections / on the top of the switch (N, 1, 3, 5) | tin |
| Active power loss / for rated value of the current / at AC / in hot operating state / per pole | 1.33 W |
| General Product ApprovalConfirmationMiscellaneousEMCDeclaration of ConformityTest CertificatesMarine / ShippingUK Declaration of ConformityMiscellaneousSpecial Test CertificateMarine / ShippingotherCCS / China Classification SocietyMiscellaneousMiscellaneous | General Product Approval |
Product Description
Automatic switch 3VA2 IEC size 160 Cutting power class M Icu=55 kA @ 415 V 3 poles, motor protection ETU550M, LSI, In=63 A overload protection Ir=25A ... 63A short circuit protection ISD=1.2... 15x In
