In Stock Hot Product
3VA1120-6GE46-0AA0

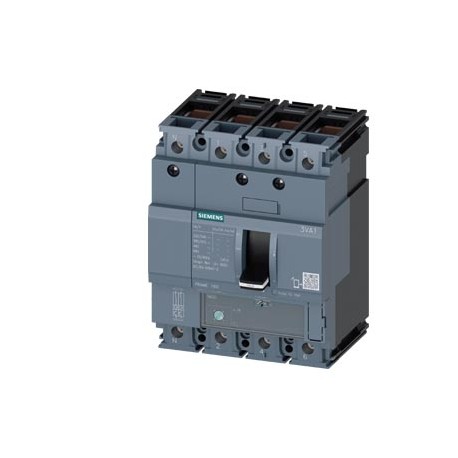

3VA1120-6GE46-0AA0 SIEMENS circuit breaker 3VA1 IEC frame 160 breaking capacity class H Icu 70kA @ 415V 4-po..
$0.00USD
4813 in stock
Key Specifications
:VersionClassificationeClass627-37-04-09eClass7.127-37-04-09eClass827-37-04-09eClass927-37-04-09eClass9.127-37-04-09ETIM5EC000228ETIM6EC000228ETIM7EC000228ETIM8EC000228IDEA44850UNSPSC1539-12-16-01
EAN:4042948824832
UPC:804766426896
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-04-09eClass7.127-37-04-09eClass827-37-04-09eClass927-37-04-09eClass9.127-37-04-09ETIM5EC000228ETIM6EC000228ETIM7EC000228ETIM8EC000228IDEA44850UNSPSC1539-12-16-01 | |
| EAN | 4042948824832 |
| UPC | 804766426896 |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | P360 |
| Metal Factor | LOA----- |
| Product Group | 5375 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85362010 |
| Product family | 3VA Molded Case Circuit Breakers up to 1600 A, IEC |
| Net Weight (kg) | 1,312 Kg |
| Country of origin | Czech Republic |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| Packaging Dimension | 119,00 x 150,00 x 116,00 |
| Product Description | circuit breaker 3VA1 IEC frame 160 breaking capacity class H Icu=70kA @ 415V 4-pole, line protection TM220, ATFM, In=20A overload protection Ir=14A...20A short-circuit protection Ii=16 x In N conductor protection 100% clamp connection |
| Product Lifecycle (PLM) | PM300:Active Product |
| Rated voltage (EF003977) | ['690', '690'] |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Number of poles (EF001391) | 4 |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Motor drive optional (EF007386) | true |
| Motor drive integrated (EF006697) | false |
| Type of control element (EF006976) | Rocker lever |
| Degree of protection (IP) (EF005474) | IP40 |
| Article Number (Market Facing Number) | 3VA1120-6GE46-0AA0 |
| Rated permanent current Iu (EF001389) | 20.0 |
| With under voltage release (EF007518) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| With switched-off indicator (EF007006) | - |
| Overload release current setting (EF002336) | ['14', '20'] |
| Integrated earth fault protection (EF007296) | false |
| Complete device with protection unit (EF008906) | true |
| DIN rail (top hat rail) mounting optional (EF008904) | true |
| Region Specific PriceGroup / Headquarter Price Group | 12P / 1CB |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | true |
| Type of electrical connection of main circuit (EF006819) | Frame clamp |
| Position of connection for main current circuit (EF006671) | Front side |
| Adjustment range undelayed short-circuit release (EF007131) | ['320', '320'] |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Adjustment range short-term delayed short-circuit release (EF007129) | ['-', '-'] |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (EF007048) | 70.0 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.04.2014 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
Product Description
CIRCUIT SWITCH 3VA1 IEC SIZE 160 CUTTING POWER CLASS H ICU=70KA @ 415 V 4 POLES, PROTEC. TM220, ATFM, IN=20A OVERLOAD PROTECTION IR=14A ... 20A SHORT CIRCUIT PROTECTION II=10 X IN NEUTRAL PROTECTION 1
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
