3VA1116-4GE42-0AA0

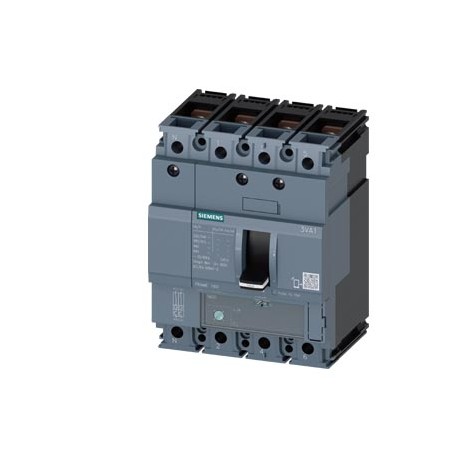

3VA1116-4GE42-0AA0 SIEMENS circuit breaker 3VA1 IEC frame 160 breaking capacity class S Icu 36kA @ 415V 4-po..
$0.00USD
4917 in stock
Key Specifications
:Value
Rated voltage (EF003977):['690', '690']
Number of poles (EF001391):4
Device construction (EF008240):Built-in device fixed built-in technique
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| Rated voltage (EF003977) | ['690', '690'] |
| Number of poles (EF001391) | 4 |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Motor drive optional (EF007386) | true |
| Motor drive integrated (EF006697) | false |
| Type of control element (EF006976) | Rocker lever |
| Degree of protection (IP) (EF005474) | IP40 |
| Rated permanent current Iu (EF001389) | 160.0 |
| With under voltage release (EF007518) | - |
| With switched-off indicator (EF007006) | - |
| Overload release current setting (EF002336) | ['112', '160'] |
| Integrated earth fault protection (EF007296) | false |
| Complete device with protection unit (EF008906) | true |
| DIN rail (top hat rail) mounting optional (EF008904) | true |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | true |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Position of connection for main current circuit (EF006671) | Front side |
| Adjustment range undelayed short-circuit release (EF007131) | ['1600', '1600'] |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Adjustment range short-term delayed short-circuit release (EF007129) | ['-', '-'] |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (EF007048) | 36.0 |
Product Description
CIRCUIT SWITCH 3VA1 IEC SIZE 160 CUTTING POWER CLASS S ICU=36KA @ 415 V 4 POLOS, PROTEC. TM220, ATFM, IN=160A OVERLOAD PROTECTION IR=112A ... 160A SHORT CIRCUIT PROTECTION II=10 X IN NEUTRAL PROTECTIO
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
