3VA1110-5MH36-0AA0

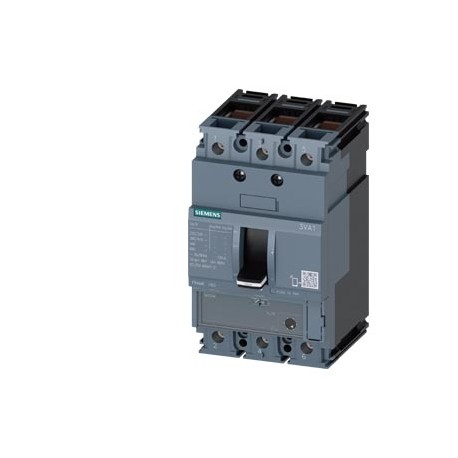

3VA1110-5MH36-0AA0 SIEMENS circuit breaker 3VA1 IEC frame 160 breaking capacity class M Icu 55kA @ 415V 3-po..
$0.00USD
4209 in stock
Key Specifications
:Confirmation
EAN:4042948828489
EMC:Declaration of Conformity
UPC:804766421945
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4042948828489 |
| EMC | Declaration of Conformity |
| UPC | 804766421945 |
| ETIM | 5 |
| IDEA | 4 |
| Width | 76.2 mm |
| depth | 70 mm |
| Height | 130 mm |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | P360 |
| Net Weight | 1.006 kg |
| depth [in] | 2.76 in |
| width [in] | 3 in |
| height [in] | 5.12 in |
| Date5/5/2022 | |
| Metal Factor | LOA----- |
| ● at 240 V | 85 kA |
| ● at 415 V | 55 kA |
| ● at 440 V | 36 kA |
| ● at 500 V | 5 kA |
| ● at 690 V | 5 kA |
| Miscellaneous | |
| Product Group | 5375 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| ● at 40 °C | 100 A |
| ● at 45 °C | 100 A |
| ● at 50 °C | 100 A |
| ● at 55 °C | 98 A |
| ● at 60 °C | 96 A |
| ● at 65 °C | 94 A |
| ● at 70 °C | 91 A |
| Commodity Code | 85362090 |
| Product family | 3VA Molded Case Circuit Breakers up to 1600 A, IEC |
| last modified: | 10/3/2021 |
| Net Weight (kg) | 1,006 Kg |
| Product version | Starter protection |
| number of poles | 3 |
| product function | |
| Country of origin | Czech Republic |
| Marine / Shipping | other |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 92,00 x 150,00 x 116,00 |
| Product Description | circuit breaker 3VA1 IEC frame 160 breaking capacity class M Icu=55kA @ 415V 3-pole, starter protection TM120M, AM, In=100A without overload protection short-circuit protection Ii=7...16 x In clamp connection |
| ambient temperature | |
| operational current | |
| product designation | Molded case circuit breaker |
| Product Lifecycle (PLM) | PM300:Active Product |
| Rated voltage (EF003977) | ['690', '690'] |
| power loss [W] / maximum | 25 W |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Number of poles (EF001391) | 3 |
| ● communication function | No |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| rated insulation voltage Ui | 800 V |
| ● phase failure detection | No |
| Package size unit of measure | MM |
| ● during storage / maximum | 80 °C |
| ● during storage / minimum | -40 °C |
| Courant permanent assigné Iu | 100 A |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| ● during operation / maximum | 70 °C |
| ● during operation / minimum | -25 °C |
| ● other measurement function | No |
| Motor drive optional (EF007386) | true |
| ground-fault monitoring version | Without |
| Motor drive integrated (EF006697) | false |
| design of the overcurrent release | TM120M |
| Type of control element (EF006976) | Rocker lever |
| protection class IP / on the front | IP40 |
| Degree of protection (IP) (EF005474) | IP40 |
| Article Number (Market Facing Number) | 3VA1110-5MH36-0AA0 |
| Rated permanent current Iu (EF001389) | 100.0 |
| With under voltage release (EF007518) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| With switched-off indicator (EF007006) | - |
| reference code / according to IEC 81346-2 | Q |
| product extension / optional / motor drive | Yes |
| Adjustable response value current / li max. | 1 600 A |
| Adjustable response value current / li min. | 700 A |
| Overload release current setting (EF002336) | ['-', '-'] |
| short-circuit current making capacity (Icm) | |
| Integrated earth fault protection (EF007296) | false |
| Neutral conductors / upgradeable/retrofittable | No |
| number of CO contacts / for auxiliary contacts | 0 |
| protection function of the overcurrent release | I |
| Complete device with protection unit (EF008906) | true |
| switching capacity class of the circuit breaker | M |
| Max. rated operational current of the frame size | 160 A |
| DIN rail (top hat rail) mounting optional (EF008904) | true |
| Region Specific PriceGroup / Headquarter Price Group | 12P / 1CB |
| mechanical service life (switching cycles) / typical | 20 000 |
| breaking capacity maximum short-circuit current (Icu) | |
| breaking capacity operating short-circuit current (Ics) | |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | true |
| Type of electrical connection of main circuit (EF006819) | Frame clamp |
| type of electrical connection / for main current circuit | box terminal on both sides |
| Ground fault protection / tripping switchable / I2t=ON/OFF | No |
| Position of connection for main current circuit (EF006671) | Front side |
| Adjustment range undelayed short-circuit release (EF007131) | ['700', '1600'] |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| arrangement of electrical connectors / for main current circuit | Front terminal |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Adjustment range short-term delayed short-circuit release (EF007129) | ['-', '-'] |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (EF007048) | 55.0 |
| Electrical endurance (switching cycles) / at AC-1 / at 690 V 50/60 Hz | 6 300 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.04.2014 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| Electrical endurance (switching cycles) / at AC-1 / at 380/415 V 50/60 Hz | 9 000 |
| Type of connectable conductor cross-section, round conductor terminal, stranded | 1 x (1.5 - 70 mm²) |
| design of the surface / of the connections / on the top of the switch (N, 1, 3, 5) | Silver |
| design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6) | Tin |
| Active power loss / for rated value of the current / at AC / in hot operating state / per pole | 8.33 W |
| General Product ApprovalConfirmationMiscellaneousKCEMCDeclaration of ConformityTest CertificatesUK Declaration of ConformityMiscellaneousSpecial Test CertificateType Test Certificates/Test ReportMarine / ShippingotherCCS / China Classification SocietyMiscellaneousConfirmationotherMiscellaneous | General Product Approval |
Product Description
CIRCUIT SWITCH 3VA1 IEC SIZE 160 CUTTING POWER CLASS M ICU=55KA @ 415 V 3 POLES, PROTEC. STARTERS TM120M, AM, IN=100A WITHOUT PROTEC. OVERLOAD SHORT CIRCUIT PROTECTION II=5...15 X IN TERMINAL CONNECTI
