In Stock Hot Product
3UL2900

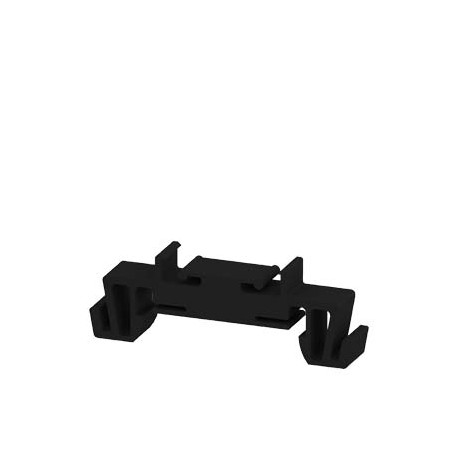

3UL2900 SIEMENS Adapter for standard mounting rail mounting of the residual-current transformer 3UL23 up to ..
$0.00USD
4657 in stock
Key Specifications
:VersionClassificationeClass627-21-09-02eClass7.127-21-09-02eClass827-21-09-02eClass927-21-09-02eClass9.127-21-09-02ETIM5EC002048ETIM6EC002048ETIM7EC002048ETIM8EC002048IDEA44183UNSPSC1539-12-10-32
EAN:4011209911352
UPC:804766085116
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-21-09-02eClass7.127-21-09-02eClass827-21-09-02eClass927-21-09-02eClass9.127-21-09-02ETIM5EC002048ETIM6EC002048ETIM7EC002048ETIM8EC002048IDEA44183UNSPSC1539-12-10-32 | |
| EAN | 4011209911352 |
| UPC | 804766085116 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 18.3 mm |
| width | 10 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 56.5 mm |
| Group Code | R711 |
| Confirmation | |
| Metal Factor | L-O----- |
| Date5/10/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 5821 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85043129 |
| Product family | 3UL23 residual-current transformers |
| last modified: | 12/23/2020 |
| Net Weight (kg) | 0,005 Kg |
| Model (EF000010) | Other |
| fastening method | snap-on mounting |
| Country of origin | Spain |
| mounting position | standing, on horizontal mounting surface |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| ● during storage | -40 ... +85 °C |
| Packaging Dimension | 50,00 x 80,00 x 30,00 |
| Product Description | Adapter for standard mounting rail mounting of the residual-current transformer 3UL23 up to 55 mm inside diameter |
| ambient temperature | |
| product designation | Holder |
| ● during operation | -25 ... +60 °C |
| ● during transport | -25 ... +60 °C |
| Calibrated (EF003706) | false |
| Minimum order quantity | 2 |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Snap mounting (EF007462) | FALSE |
| Width opening (EF004565) | - |
| Accuracy class (EF001532) | - |
| Height opening (EF004778) | - |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Opening diameter (EF005153) | - |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| With copper rail (EF007380) | - |
| Package size unit of measure | MM |
| Secondary connection (EF007469) | Screw connection |
| Primary rated current (EF007405) | - |
| With shock protection (EF008186) | - |
| Secondary rated current (EF007471) | - |
| relative humidity during operation | 95 % |
| Number of primary inputs (EF006947) | 1 |
| Article Number (Market Facing Number) | 3UL2900 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Over current limiting factor (EF007511) | - |
| reference code according to IEC 81346-2 | B |
| Secondary rated apparent power (EF007470) | - |
| installation altitude at height above sea level | 2 000 m |
| Region Specific PriceGroup / Headquarter Price Group | 41H / 41H |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.03.2017 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityotherConfirmationConfirmation | General Product Approval |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
