3UL2303-1A

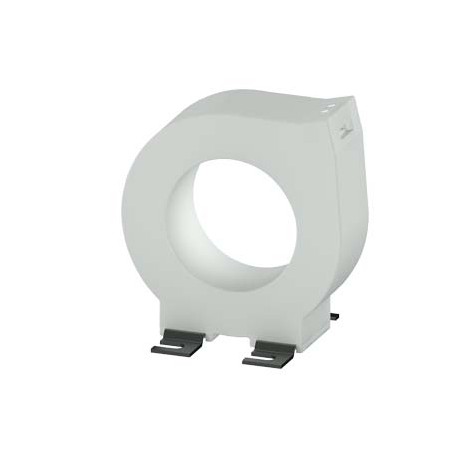

3UL2303-1A SIEMENS Residual-current transformer for residual current monitoring Bushing opening 55 mm Residu..
$0.00USD
4402 in stock
Key Specifications
:Confirmation
EAN:4011209897519
UPC:887621549329
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209897519 |
| UPC | 887621549329 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 98 mm |
| width | 92 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 64 mm |
| — solid | 1x (20 ... 13) |
| ● solid | 1x (0.5 ... 2.5 mm²) |
| Group Code | R711 |
| Confirmation | |
| Date5/8/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | LAO----- |
| Product Group | 5821 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85043129 |
| Product family | 3UL23 residual-current transformers |
| last modified: | 12/23/2020 |
| Net Weight (kg) | 0,207 Kg |
| Model (EF000010) | Single-phase current converter |
| fastening method | Screw and rail mounting |
| Country of origin | Spain |
| mounting position | standing, on horizontal mounting surface |
| ● at AWG cables | |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| ● during storage | -40 ... +85 °C |
| Packaging Dimension | 52,00 x 190,00 x 174,00 |
| Product Description | Residual-current transformer for residual current monitoring Bushing opening 55 mm Residual current 30 mA...40 A |
| ambient temperature | |
| product designation | Residual current transformer for fault current monitoring |
| ● finely stranded | |
| ● during operation | -25 ... +60 °C |
| ● during transport | -25 ... +60 °C |
| Calibrated (EF003706) | false |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Snap mounting (EF007462) | FALSE |
| Width opening (EF004565) | 55.0 |
| Accuracy class (EF001532) | - |
| Height opening (EF004778) | 55.0 |
| diameter of inlet opening | 55 mm |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Opening diameter (EF005153) | 55.0 |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| With copper rail (EF007380) | - |
| Package size unit of measure | MM |
| — with core end processing | 1x (0.5 ... 1.5 mm²) |
| Secondary connection (EF007469) | Screw connection |
| Primary rated current (EF007405) | 40 |
| With shock protection (EF008186) | true |
| product feature touch protection | Yes |
| Secondary rated current (EF007471) | - |
| fault current at input rated value | 40 A |
| relative humidity during operation | 95 % |
| Number of primary inputs (EF006947) | 1 |
| continuous current per phase maximum | 150 A |
| surge voltage resistance rated value | 6 kV |
| Article Number (Market Facing Number) | 3UL2303-1A |
| operating voltage rated value maximum | 690 V |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| reference code according to EN 61346-2 | B |
| Over current limiting factor (EF007511) | - |
| reference code according to IEC 81346-2 | B |
| type of electrical connection at output | screw-type terminals |
| Secondary rated apparent power (EF007470) | - |
| tightening torque with screw-type terminals | 0.5 ... 0.6 N·m |
| type of connectable conductor cross-sections | |
| installation altitude at height above sea level | 2 000 m |
| Region Specific PriceGroup / Headquarter Price Group | 41H / 41H |
| tightening torque [lbf·in] with screw-type terminals | 4.4 ... 5.3 lbf·in |
| Compliance with the substance restrictions according to RoHS directive | Since: 27.06.2011 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| reference code according to DIN 40719 extended according to IEC 204-2 according to IEC 750 | T |
| General Product ApprovalDeclaration of ConformityTest CertificatesConfirmationType Test Certificates/Test ReportotherConfirmation | General Product Approval |
