3UG4851-1AA40

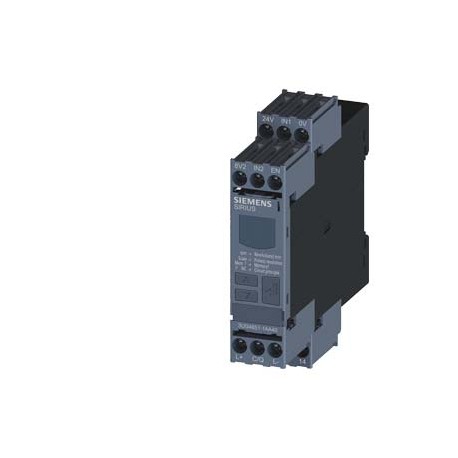

3UG4851-1AA40 SIEMENS Digital monitoring relay Speed monitoring for IO-Link from 0.1...2200 rpm 0vershoot an..
$0.00USD
3502 in stock
Key Specifications
:
EAN:4011209895904
UPC:040892871869
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209895904 |
| UPC | 040892871869 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 102 mm |
| width | 22.5 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 91 mm |
| ● solid | 1x (0.5 ... 4 mm2), 2x (0.5 ... 2.5 mm2) |
| Group Code | R711 |
| data volume | |
| — upwards | 0 mm |
| ● at 24 V | 1 A |
| Date5/4/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | LAO----- |
| — forwards | 0 mm |
| ● at 110 V | 0.2 A |
| ● at 125 V | 0.2 A |
| ● at 230 V | 0.1 A |
| ● at 250 V | 0.1 A |
| ● stranded | 24 ... 16 |
| Product Group | 5885 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| — backwards | 0 mm |
| — downwards | 0 mm |
| Commodity Code | 85364900 |
| Product family | Speed monitoring |
| last modified: | 1/25/2022 |
| ● auto-RESET | Yes |
| Net Weight (kg) | 0,163 Kg |
| — at the side | 0 mm |
| ● rated value | 24 ... 24 V |
| Depth (EF000049) | 102.0 |
| Width (EF000008) | 22.5 |
| fastening method | screw and snap-on mounting |
| product function | RPM monitoring relay |
| required spacing | |
| ● error memory | Yes |
| ● manual RESET | Yes |
| Country of origin | Czech Republic |
| Height (EF000040) | 91.0 |
| mounting position | any |
| ● initial value | 0.75 |
| ● when starting | 0 ... 999.9 s |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| galvanic isolation | |
| insulation voltage | |
| product brand name | SIRIUS |
| ● during storage | -40 ... +80 °C |
| ● external reset | Yes |
| ● for live parts | |
| ● safety-related | |
| Packaging Dimension | 34,00 x 99,00 x 111,00 |
| Product Description | Digital monitoring relay Speed monitoring for IO-Link from 0.1...2200 rpm 0vershoot and undershoot ON-delay time Tripping delay time Hysteresis 0.1 to 99 rpm 1 change-over contact, screw terminal |
| ambient temperature | |
| degree of pollution | 2 |
| product designation | Speed monitoring relay with digital setting |
| protection class IP | IP20 |
| — at 24 V maximum | 4 VA |
| ● of the terminal | IP20 |
| ● during operation | -25 ... +60 °C |
| ● during transport | -40 ... +80 °C |
| ● full-scale value | 1.25 |
| ● of the enclosure | IP40 |
| IO-Link transfer rate | COM2 (38,4 kBaud) |
| design of the display | LCD |
| — delayed switching | 1 |
| conducted interference | |
| ● for grounded parts | |
| ● galvanic isolation | Yes |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● at AWG cables solid | 2x (20 ... 14) |
| ● between the outputs | No |
| General Product Approval | EMC |
| product type designation | 3UG4 |
| relative repeat accuracy | 1 % |
| ● at 230 V at 50/60 Hz | 3 A |
| ● at 250 V at 50/60 Hz | 3 A |
| Declaration of Conformity | Test Certificates |
| — instantaneous contact | 0 |
| ● standstill monitoring | No |
| Export Control Regulations | AL : N / ECCN : N |
| ● at AWG cables stranded | 2x (20 ... 14) |
| ● for signaling function | |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| accuracy of digital display | +/- 1 Digit |
| relative metering precision | 10 % |
| Evaluation inputs (EF008245) | - |
| Package size unit of measure | MM |
| control supply voltage at DC | |
| ● between input and output | Yes |
| Substance Prohibitance (Date) | 05/01/2012 |
| type of electrical connection | screw-type terminals |
| ● rotation speed monitoring | Yes |
| adjustable response delay time | |
| design of input feedback input | No |
| ● with side-by-side mounting | |
| adjustable operating delay time | 0 ... 99.9 s |
| With feedback circuit (EF003343) | false |
| With approval for TÜV (EF004144) | false |
| With detachable clamps (EF003340) | true |
| With approval for BG BIA (EF004145) | false |
| connectable conductor cross-section | |
| operational current at 17 V minimum | 5 mA |
| Rated operating frequency (EF007370) | ['-', '-'] |
| surge voltage resistance rated value | 4 kV |
| ● Apparent power consumption at DC | |
| Article Number (Market Facing Number) | 3UG4851-1AA40 |
| SIL according to IEC 61508 (EF009889) | None |
| Voltage type for actuating (EF008242) | DC |
| ampacity of the output relay at AC-15 | |
| ampacity of the output relay at DC-13 | |
| Type of electric connection (EF003961) | Screw connection |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| protocol is supported IO-Link protocol | Yes |
| number of CO contacts delayed switching | 1 |
| number of NC contacts delayed switching | 0 |
| number of NO contacts delayed switching | 0 |
| reference code according to IEC 81346-2 | K |
| ● with lower or upper limit violation | 0 ... 999.9 s |
| Suitable for safety functions (EF001597) | false |
| With approval according to UL (EF001783) | FALSE |
| Category according to EN 954-1 (EF006782) | none |
| Function standstill monitoring (EF003431) | false |
| — with degree of pollution 2 rated value | 300 V |
| suitability for use safety-related circuits | No |
| tightening torque with screw-type terminals | 0.8 ... 1.2 N·m |
| ● due to burst according to IEC 61000-4-4 | 2 kV |
| shock resistance according to IEC 60068-2-27 | sinusoidal half-wave 15g / 11 ms |
| type of connectable conductor cross-sections | |
| ● finely stranded with core end processing | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.5 mm²) |
| type of voltage of the control supply voltage | DC |
| Function rotational speed monitoring (EF003430) | true |
| operating frequency with 3RT2 contactor maximum | 5 000 1/h |
| vibration resistance according to IEC 60068-2-6 | 1 ... 6 Hz: 15 mm, 6 ... 500 Hz: 2g |
| Rated control supply voltage Us at DC (EF003980) | ['24', '24'] |
| ampacity of the semiconductor output in SIO mode | 200 mA |
| ● between the voltage supply and other circuits | Yes |
| electrostatic discharge according to IEC 61000-4-2 | 6 kV contact discharge / 8 kV air discharge |
| mechanical service life (switching cycles) typical | 10 000 000 |
| Safety Integrity Level (SIL) according to IEC 61508 | without |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| type of voltage supply via input/output link master | Yes |
| Region Specific PriceGroup / Headquarter Price Group | 41H / 41H |
| ● adjustable open/closed-circuit current principle | Yes |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| AWG number as coded connectable conductor cross section | |
| installation altitude at height above sea level maximum | 2 000 m |
| number of outputs as contact-affected switching element | |
| ● for overvoltage category III according to IEC 60664 | |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| ● due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| continuous current of the DIAZED fuse link of the output relay | 4 A |
| thermal current of the switching element with contacts maximum | 5 A |
| operating range factor control supply voltage rated value at DC | |
| ● due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| electrical endurance (switching cycles) at AC-15 at 230 V typical | 100 000 |
| number of outputs as contact-less semiconductor switching element | |
| Number of outputs, safety related, delayed, with contact (EF003345) | 0 |
| point-to-point cycle time between master and IO-Link device minimum | 10 ms |
| ● of the address range of the inputs with cyclical transfer total | 4 byte |
| ● of the address range of the outputs with cyclical transfer total | 2 byte |
| Number of outputs, safety related, delayed, semiconductors (EF003347) | 0 |
| Number of outputs, safety related, undelayed, with contact (EF003344) | 0 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2012 |
| product component removable terminal for auxiliary and control circuit | Yes |
| Number of outputs, safety related, undelayed, semiconductors (EF003346) | 0 |
| Number of outputs, signalling function, delayed, with contact (EF003349) | 1 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| Number of outputs, signalling function, delayed, semiconductors (EF003351) | 0 |
| Number of outputs, signalling function, undelayed, with contact (EF003348) | 0 |
| Number of outputs, signalling function, undelayed, semiconductors (EF003350) | 0 |
| General Product ApprovalEMCManufacturer DeclarationConfirmationDeclaration of ConformityTest CertificatesMarine / ShippingotherRailwaySpecial Test CertificateType Test Certificates/Test ReportConfirmationVibration and Shock | General Product Approval |
Product Description
DIGITAL SURVEILLANCE RELAY SPEED MONITORING FOR IO-LINK FROM 0.1 TO 2200 R/MIN MINIMUM LIMITS AND MAXIMUM TIMING DURING START TIME TO SHOOTING HYSTERESIS 0.1 TO 99 R/MIN 0.1 TO 999.9S
