3UG4651-2AA30

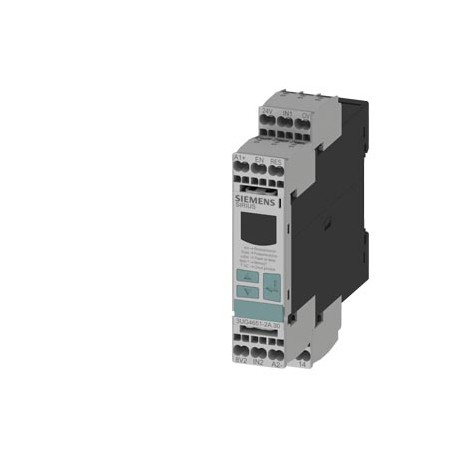

3UG4651-2AA30 SIEMENS Digital monitoring relay Speed monitoring from 0.1 to 2200 rpm 0vershoot and undershoo..
$0.00USD
3419 in stock
Key Specifications
:
EAN:4011209667464
UPC:662643156454
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209667464 |
| UPC | 662643156454 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 103 mm |
| width | 22.5 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 86 mm |
| ● solid | 2x (0.25 ... 1.5 mm²) |
| Group Code | R711 |
| — upwards | 0 mm |
| ● at 24 V | 1 A |
| Confirmation | |
| Metal Factor | LAO----- |
| — forwards | 0 mm |
| ● at 125 V | 0.2 A |
| ● at 250 V | 0.1 A |
| ● stranded | 24 ... 16 |
| Date5/14/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 5885 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| — backwards | 0 mm |
| — downwards | 0 mm |
| Commodity Code | 85364190 |
| Product family | Speed monitoring |
| last modified: | 1/25/2022 |
| ● auto-RESET | Yes |
| Net Weight (kg) | 0,145 Kg |
| — at the side | 0 mm |
| ● rated value | 24 ... 24 V |
| Depth (EF000049) | 103.0 |
| Width (EF000008) | 22.5 |
| fastening method | screw and snap-on mounting |
| product function | RPM monitoring relay |
| required spacing | |
| ● error memory | Yes |
| ● manual RESET | Yes |
| Country of origin | Czech Republic |
| Height (EF000040) | 86.0 |
| Test Certificates | Marine / Shipping |
| mounting position | any |
| ● initial value | 0.8 |
| ● when starting | 1 ... 900 s |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| galvanic isolation | |
| insulation voltage | |
| product brand name | SIRIUS |
| ● during storage | -40 ... +80 °C |
| ● external reset | Yes |
| ● for live parts | |
| ● safety-related | |
| Packaging Dimension | 100,00 x 107,00 x 30,00 |
| Product Description | Digital monitoring relay Speed monitoring from 0.1 to 2200 rpm 0vershoot and undershoot Supply voltage: 24 V AC/DC 50 to 60 Hz DC and AC without galvanic isolation to measuring circuit ON delay 1 to 900 s Tripping delay 0.1 to 99.9 s Hysteresis 0.1 to 99 rpm 1 change-over contact with or without fault buffer spring-type connection system |
| ambient temperature | |
| degree of pollution | 3 |
| product designation | Speed monitoring relay with digital setting |
| protection class IP | IP20 |
| — at 24 V maximum | 2.5 VA |
| ● during operation | -25 ... +60 °C |
| ● during transport | -40 ... +80 °C |
| ● full-scale value | 1.1 |
| design of the display | LCD |
| — delayed switching | 1 |
| conducted interference | |
| ● for grounded parts | |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● at AWG cables solid | 2x (24 ... 16) |
| ● between the outputs | No |
| General Product Approval | EMC |
| product type designation | 3UG4 |
| relative repeat accuracy | 1 % |
| ● at 250 V at 50/60 Hz | 3 A |
| ● at 50 Hz rated value | 24 ... 24 V |
| ● at 60 Hz rated value | 24 ... 24 V |
| measurable line frequency | 50 ... 60 Hz |
| — instantaneous contact | 0 |
| ● standstill monitoring | No |
| Export Control Regulations | AL : N / ECCN : N |
| ● at AWG cables stranded | 2x (24 ... 16) |
| ● for signaling function | |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| accuracy of digital display | +/- 1 Digit |
| relative metering precision | 10 % |
| Evaluation inputs (EF008245) | - |
| Package size unit of measure | MM |
| control supply voltage at AC | |
| control supply voltage at DC | |
| ● between input and output | Yes |
| Substance Prohibitance (Date) | 05/01/2012 |
| type of electrical connection | spring-loaded terminals |
| ● rotation speed monitoring | Yes |
| adjustable response delay time | |
| design of input feedback input | No |
| ● with side-by-side mounting | |
| With feedback circuit (EF003343) | false |
| With approval for TÜV (EF004144) | false |
| With detachable clamps (EF003340) | true |
| Type Test Certificates/Test Report | Special Test Certificate |
| With approval for BG BIA (EF004145) | false |
| connectable conductor cross-section | |
| operational current at 17 V minimum | 5 mA |
| Rated operating frequency (EF007370) | ['50', '60'] |
| surge voltage resistance rated value | 4 kV |
| ● apparent power consumption at AC | |
| Article Number (Market Facing Number) | 3UG4651-2AA30 |
| SIL according to IEC 61508 (EF009889) | None |
| Voltage type for actuating (EF008242) | AC/DC |
| ampacity of the output relay at AC-15 | |
| ampacity of the output relay at DC-13 | |
| Type of electric connection (EF003961) | Spring clamp connection |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| number of CO contacts delayed switching | 1 |
| number of NC contacts delayed switching | 0 |
| number of NO contacts delayed switching | 0 |
| reference code according to IEC 81346-2 | K |
| ● with lower or upper limit violation | 0.1 ... 99.9 s |
| Suitable for safety functions (EF001597) | false |
| With approval according to UL (EF001783) | TRUE |
| Category according to EN 954-1 (EF006782) | none |
| Function standstill monitoring (EF003431) | false |
| — with degree of pollution 3 rated value | 300 V |
| suitability for use safety-related circuits | No |
| ● due to burst according to IEC 61000-4-4 | 2 kV |
| shock resistance according to IEC 60068-2-27 | sinusoidal half-wave 15g / 11 ms |
| type of connectable conductor cross-sections | |
| ● finely stranded with core end processing | 2 x (0.25 ... 1.5 mm²) |
| type of voltage of the control supply voltage | AC/DC |
| Function rotational speed monitoring (EF003430) | true |
| operating frequency with 3RT2 contactor maximum | 5 000 1/h |
| ● finely stranded without core end processing | 2x (0.25 ... 1.5 mm²) |
| Rated control supply voltage Us at DC (EF003980) | ['24', '24'] |
| electrostatic discharge according to IEC 61000-4-2 | 6 kV contact discharge / 8 kV air discharge |
| mechanical service life (switching cycles) typical | 10 000 000 |
| Safety Integrity Level (SIL) according to IEC 61508 | without |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| Region Specific PriceGroup / Headquarter Price Group | 41H / 41H |
| buffering time in the event of power failure minimum | 10 ms |
| ● adjustable open/closed-circuit current principle | Yes |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['24.0', '24.0'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['24.0', '24.0'] |
| AWG number as coded connectable conductor cross section | |
| installation altitude at height above sea level maximum | 2 000 m |
| number of outputs as contact-affected switching element | |
| ● for overvoltage category III according to IEC 60664 | |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| ● due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| continuous current of the DIAZED fuse link of the output relay | 4 A |
| operating range factor control supply voltage rated value at DC | |
| ● due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| electrical endurance (switching cycles) at AC-15 at 230 V typical | 100 000 |
| number of outputs as contact-less semiconductor switching element | |
| Number of outputs, safety related, delayed, with contact (EF003345) | 0 |
| Number of outputs, safety related, delayed, semiconductors (EF003347) | 0 |
| Number of outputs, safety related, undelayed, with contact (EF003344) | 0 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2012 |
| product component removable terminal for auxiliary and control circuit | Yes |
| Number of outputs, safety related, undelayed, semiconductors (EF003346) | 0 |
| Number of outputs, signalling function, delayed, with contact (EF003349) | 1 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| operating range factor control supply voltage rated value at AC at 50 Hz | |
| operating range factor control supply voltage rated value at AC at 60 Hz | |
| Number of outputs, signalling function, delayed, semiconductors (EF003351) | 0 |
| Number of outputs, signalling function, undelayed, with contact (EF003348) | 0 |
| Number of outputs, signalling function, undelayed, semiconductors (EF003350) | 0 |
| General Product ApprovalEMCDeclaration of ConformityConfirmationTest CertificatesMarine / ShippingotherRailwayType Test Certificates/Test ReportSpecial Test CertificateConfirmationVibration and Shock | General Product Approval |
