3UG4641-2CS20

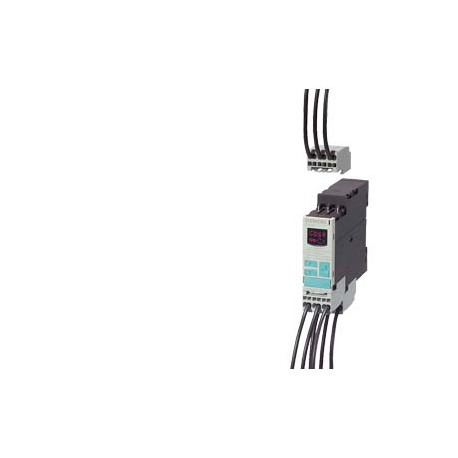

3UG4641-2CS20 SIEMENS Digital monitoring relay cos phi and current monitoring from 90-690 V AC 0vershoot and..
$0.00USD
3921 in stock
Key Specifications
:Confirmation
EAN:4011209665163
UPC:804766346309
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209665163 |
| UPC | 804766346309 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 91 mm |
| width | 22.5 mm |
| ● 1 | 0.2 ... 10 A |
| ● 2 | 0.2 ... 10 A |
| UNSPSC | 14 |
| eClass | 6 |
| height | 103 mm |
| ● solid | 2x (0.25 ... 1.5 mm²) |
| Group Code | R711 |
| — upwards | 0 mm |
| ● at 24 V | 1 A |
| Metal Factor | LAO----- |
| — forwards | 0 mm |
| ● at 125 V | 0.2 A |
| ● at 250 V | 0.1 A |
| ● stranded | 24 ... 16 |
| Date5/13/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 5885 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| — backwards | 0 mm |
| — downwards | 0 mm |
| Commodity Code | 85364900 |
| Product family | Power factor and active current monitoring |
| last modified: | 12/21/2020 |
| Net Weight (kg) | 0,153 Kg |
| — at the side | 0 mm |
| Depth (EF000049) | 91.0 |
| Width (EF000008) | 22.5 |
| fastening method | snap-on mounting |
| product function | Active power monitoring relay |
| required spacing | |
| Country of origin | Germany |
| Height (EF000040) | 103.0 |
| Test Certificates | Marine / Shipping |
| mounting position | any |
| ● initial value | 1 |
| ● when starting | 0 ... 99 s |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| galvanic isolation | |
| measurable current | 0.2 ... 10 A |
| product brand name | SIRIUS |
| ● during storage | -40 ... +85 °C |
| ● external reset | Yes |
| ● for live parts | |
| Packaging Dimension | 29,00 x 99,00 x 107,00 |
| Product Description | Digital monitoring relay cos phi and current monitoring from 90-690 V AC 0vershoot and undershoot self-supplied 50 to 60 Hz AC Noise pulses delay 0.1 to 20 s Hysteresis for (I) 0.1 to 2 A 2 change-over contacts with or without fault buffer spring-type connection system |
| ambient temperature | |
| degree of pollution | 3 |
| product designation | Cos phi monitoring relay with digital setting |
| protection class IP | IP20 |
| ● during operation | -25 ... +60 °C |
| ● during transport | -40 ... +85 °C |
| ● full-scale value | 1 |
| design of the display | LCD |
| conducted interference | |
| ● for grounded parts | |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● at AWG cables solid | 2x (24 ... 16) |
| ● between the outputs | Yes |
| General Product Approval | EMC |
| Rated voltage (EF003977) | ['90', '690'] |
| Special Test Certificate | Type Test Certificates/Test Report |
| product type designation | 3UG4 |
| relative repeat accuracy | 1 % |
| ● at 250 V at 50/60 Hz | 3 A |
| ● at 400 V at 50/60 Hz | 3 A |
| ● at 50 Hz rated value | 90 ... 690 V |
| ● at 60 Hz rated value | 90 ... 690 V |
| Export Control Regulations | AL : N / ECCN : N |
| ● at AWG cables stranded | 2x (24 ... 16) |
| Number of phases (EF000351) | 1 |
| Standard lead time ex-works | 20 Day/Days |
| Surcharge for Raw Materials | None |
| accuracy of digital display | +/-1 digit |
| relative metering precision | 10 % |
| Package size unit of measure | MM |
| control supply voltage at AC | |
| ● between input and output | Yes |
| Substance Prohibitance (Date) | 05/01/2012 |
| operating voltage rated value | 90 ... 690 V |
| type of electrical connection | spring-loaded terminals |
| Measurement current (EF008522) | ['0.2', '10.0'] |
| adjustable response delay time | |
| type of current for monitoring | AC |
| ● with side-by-side mounting | |
| With detachable clamps (EF003340) | true |
| ● overcurrent detection 1 phase | Yes |
| control supply voltage rated value | 690 ... 90 |
| ● undercurrent detection 1 phase | Yes |
| connectable conductor cross-section | |
| operational current at 17 V minimum | 5 mA |
| Rated operation frequency (EF007024) | ['50', '60'] |
| supply voltage frequency rated value | 60 ... 50 Hz |
| surge voltage resistance rated value | 6 kV |
| Article Number (Market Facing Number) | 3UG4641-2CS20 |
| Voltage type for actuating (EF008242) | AC |
| ampacity of the output relay at AC-15 | |
| ampacity of the output relay at DC-13 | |
| Type of electric connection (EF003961) | Spring clamp connection |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| number of CO contacts delayed switching | 2 |
| number of NC contacts delayed switching | 0 |
| number of NO contacts delayed switching | 0 |
| reference code according to IEC 81346-2 | K |
| ● with lower or upper limit violation | 0.1 ... 20 s |
| Max. permitted off-delay time (EF008191) | 20 |
| number of poles for main current circuit | 2 |
| Min. adjustable off-delay time (EF008192) | 0.1 |
| adjustable current response value current | |
| ● with degree of pollution 3 rated value | 690 V |
| ● due to burst according to IEC 61000-4-4 | 2 kV |
| shock resistance according to IEC 60068-2-27 | sinusoidal half-wave 15g / 11 ms |
| type of connectable conductor cross-sections | |
| ● finely stranded with core end processing | 2 x (0.25 ... 1.5 mm²) |
| type of voltage of the control supply voltage | AC |
| Adjustable setting value for Cos-Phi (EF003418) | ['0.1', '0.99'] |
| operating frequency with 3RT2 contactor maximum | 5 000 1/h |
| vibration resistance according to IEC 60068-2-6 | 1 ... 6 Hz: 15 mm, 6 ... 500 Hz: 2g |
| ● finely stranded without core end processing | 2x (0.25 ... 1.5 mm²) |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] |
| ● between the voltage supply and other circuits | Yes |
| electrostatic discharge according to IEC 61000-4-2 | 6 kV contact discharge / 8 kV air discharge |
| mechanical service life (switching cycles) typical | 10 000 000 |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| Max. permitted delay-on energization time (EF008189) | 99 |
| Number of contacts as change-over contact (EF008257) | 2 |
| Region Specific PriceGroup / Headquarter Price Group | 41H / 41H |
| buffering time in the event of power failure minimum | 10 ms |
| ● adjustable open/closed-circuit current principle | Yes |
| Min. adjustable delay-on energization time (EF008190) | 0 |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['90.0', '690.0'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['90.0', '690.0'] |
| Number of contacts as normally open contact (EF008256) | 0 |
| AWG number as coded connectable conductor cross section | |
| installation altitude at height above sea level maximum | 2 000 m |
| Number of contacts as normally closed contact (EF008255) | 0 |
| adjustable switching hysteresis for measured current value | 100 ... 2 000 mA |
| ● due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| continuous current of the DIAZED fuse link of the output relay | 4 A |
| thermal current of the switching element with contacts maximum | 5 A |
| ● due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| electrical endurance (switching cycles) at AC-15 at 230 V typical | 100 000 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2012 |
| insulation voltage for overvoltage category III according to IEC 60664 | |
| product component removable terminal for auxiliary and control circuit | Yes |
| supply voltage frequency for auxiliary and control circuit rated value | 50 ... 60 Hz |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| operating range factor control supply voltage rated value at AC at 50 Hz | |
| operating range factor control supply voltage rated value at AC at 60 Hz | |
| General Product ApprovalEMCDeclaration of ConformityConfirmationTest CertificatesMarine / ShippingotherRailwaySpecial Test CertificateType Test Certificates/Test ReportConfirmationVibration and Shock | General Product Approval |
