3UG4625-2CW30

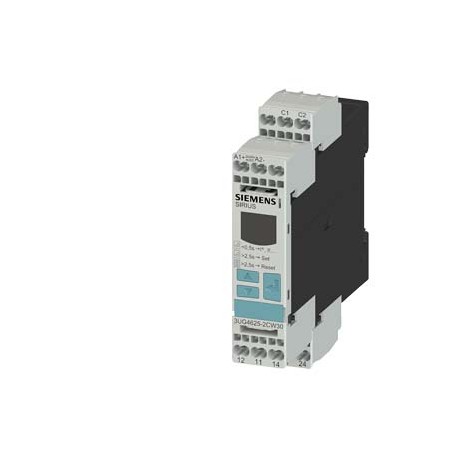

3UG4625-2CW30 SIEMENS Digital monitoring relay for residual current monitoring (with current transformer 3UL..
$0.00USD
3398 in stock
Key Specifications
:Confirmation
EAN:4011209912519
UPC:804766187476
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209912519 |
| UPC | 804766187476 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 91 mm |
| width | 22.5 mm |
| ● 1 | 30 mA ... 40 A |
| ● 2 | 30 mA ... 40 A |
| UNSPSC | 15 |
| eClass | 6 |
| height | 103 mm |
| ● solid | 2x (0.25 ... 1.5 mm²) |
| Group Code | R711 |
| — upwards | 0 mm |
| ● at 24 V | 1 A |
| Date5/8/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | LAO----- |
| — forwards | 0 mm |
| ● at 125 V | 0.2 A |
| ● at 250 V | 0.1 A |
| ● stranded | 24 ... 16 |
| Product Group | 5821 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| — backwards | 0 mm |
| — downwards | 0 mm |
| Commodity Code | 85364900 |
| Product family | Residual-current monitoring relays |
| last modified: | 12/21/2020 |
| Net Weight (kg) | 0,155 Kg |
| type of voltage | AC/DC |
| — at the side | 0 mm |
| ● rated value | 300 V |
| Depth (EF000049) | 91.0 |
| Width (EF000008) | 22.5 |
| fastening method | screw and snap-on mounting onto 35 mm standard mounting rail |
| product function | for three-phase supplies |
| required spacing | |
| ● error memory | Yes |
| Country of origin | Germany |
| Height (EF000040) | 103.0 |
| Test Certificates | other |
| mounting position | any |
| ● initial value | 0.85 |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| galvanic isolation | |
| insulation voltage | |
| measurable current | 10 mA ... 43 A |
| product brand name | SIRIUS |
| ● during storage | -40 ... +85 °C |
| ● external reset | Yes |
| ● for live parts | |
| Function (EF000030) | For three-phase supply system |
| Packaging Dimension | 29,00 x 99,00 x 107,00 |
| Product Description | Digital monitoring relay for residual current monitoring (with current transformer 3UL23) Setting range 0.03...40 A separate for warning threshold and switch-off value supply voltage 24 ... 240 V AC/DC, 50 .. 60Hz ON delay and tripping delay 0.1 to 20 s Shutdown hysteresis up to 50% Warning hysteresis 5% fixed Width 22.5 mm, 2 change-over contacts with or without fault buffer spring-type connection system |
| ambient temperature | |
| degree of pollution | 3 |
| product designation | Residual current monitoring relay with digital setting |
| protection class IP | IP20 |
| ● of the terminal | IP20 |
| ● during operation | -25 ... +60 °C |
| ● during transport | -40 ... +85 °C |
| ● full-scale value | 1.1 |
| ● of the enclosure | IP20 |
| design of the display | LCD |
| number of CO contacts | |
| ● delayed switching | 2 |
| conducted interference | |
| ● for grounded parts | |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● at AWG cables solid | 2x (24 ... 16) |
| ● between the outputs | Yes |
| General Product Approval | EMC |
| Rated voltage (EF003977) | ['24', '240'] |
| product type designation | 3UG4 |
| relative repeat accuracy | 1 % |
| ● at 250 V at 50/60 Hz | 3 A |
| ● at 400 V at 50/60 Hz | 0 A |
| ● at 50 Hz rated value | 24 ... 240 V |
| ● at 60 Hz rated value | 24 ... 240 V |
| measurable line frequency | 16 ... 400 Hz |
| temperature drift per °C | 0.1 %/°C |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Rated frequency (EF001663) | ['16', '400'] |
| ● at AWG cables stranded | 2x (24 ... 16) |
| ● for auxiliary contacts | 2 |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| accuracy of digital display | +/-1 digit |
| relative metering precision | 5 % |
| Package size unit of measure | MM |
| control supply voltage at AC | |
| control supply voltage at DC | |
| ● between input and output | Yes |
| ● residual current display | Yes |
| Substance Prohibitance (Date) | 02/14/2013 |
| operating voltage rated value | 24 ... 240 V |
| type of electrical connection | spring-loaded terminals |
| adjustable response delay time | 0 ... 20 s |
| type of current for monitoring | AC |
| ● with side-by-side mounting | |
| adjustable operating delay time | 0.1 ... 20 s |
| operating frequency rated value | 16 ... 400 Hz |
| With detachable clamps (EF003340) | true |
| ● overcurrent detection 1 phase | Yes |
| Type Test Certificates/Test Report | Special Test Certificate |
| design of the electrical isolation | galvanic isolation |
| ● undercurrent detection 1 phase | No |
| connectable conductor cross-section | |
| operational current at 17 V minimum | 5 mA |
| Response value amperage 1 (EF008204) | ['30.0', '40000.0'] |
| Response value amperage 2 (EF008205) | ['30.0', '40000.0'] |
| surge voltage resistance rated value | 4 kV |
| Article Number (Market Facing Number) | 3UG4625-2CW30 |
| Voltage type for actuating (EF008242) | AC/DC |
| ampacity of the output relay at AC-15 | |
| ampacity of the output relay at DC-13 | |
| Error registration possible (EF003423) | true |
| Type of electric connection (EF003961) | Spring clamp connection |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| number of NC contacts delayed switching | 0 |
| number of NO contacts delayed switching | 0 |
| reference code according to IEC 81346-2 | K |
| adjustable current response value current | |
| — with degree of pollution 3 rated value | 300 V |
| Indication of difference current (EF003424) | true |
| ● due to burst according to IEC 61000-4-4 | 2 kV |
| adjustable response delay time when starting | 0.1 ... 20 s |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 0 |
| shock resistance according to IEC 60068-2-27 | sinusoidal half-wave 15g / 11 ms |
| type of connectable conductor cross-sections | |
| ● finely stranded with core end processing | 2 x (0.25 ... 1.5 mm²) |
| type of voltage of the control supply voltage | AC/DC |
| operating frequency with 3RT2 contactor maximum | 5 000 1/h |
| vibration resistance according to IEC 60068-2-6 | 1 ... 6 Hz: 15 mm, 6 ... 500 Hz: 2g |
| ● finely stranded without core end processing | 2x (0.25 ... 1.5 mm²) |
| Rated control supply voltage Us at DC (EF003980) | ['24', '240'] |
| ● between the voltage supply and other circuits | No |
| electrostatic discharge according to IEC 61000-4-2 | 4 kV contact discharge / 8 kV air discharge |
| mechanical service life (switching cycles) typical | 10 000 000 |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| Max. permitted delay-on energization time (EF008189) | 20.0 |
| Number of contacts as change-over contact (EF008257) | 2 |
| Region Specific PriceGroup / Headquarter Price Group | 41H / 41H |
| buffering time in the event of power failure minimum | 10 ms |
| ● adjustable open/closed-circuit current principle | Yes |
| Min. adjustable delay-on energization time (EF008190) | 0.0 |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['24.0', '240.0'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['24.0', '240.0'] |
| Number of contacts as normally open contact (EF008256) | 0 |
| AWG number as coded connectable conductor cross section | |
| installation altitude at height above sea level maximum | 2 000 m |
| ● for overvoltage category III according to IEC 60664 | |
| Number of contacts as normally closed contact (EF008255) | 0 |
| ● due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| continuous current of the DIAZED fuse link of the output relay | 4 A |
| thermal current of the switching element with contacts maximum | 5 A |
| operating range factor control supply voltage rated value at DC | |
| ● due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| electrical endurance (switching cycles) at AC-15 at 230 V typical | 100 000 |
| Compliance with the substance restrictions according to RoHS directive | Since: 14.02.2013 |
| product component removable terminal for auxiliary and control circuit | Yes |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| operating range factor control supply voltage rated value at AC at 50 Hz | |
| operating range factor control supply voltage rated value at AC at 60 Hz | |
| General Product ApprovalEMCDeclaration of ConformityConfirmationTest CertificatesotherRailwayType Test Certificates/Test ReportSpecial Test CertificateConfirmationVibration and Shock | General Product Approval |
