3UG4581-1AW30

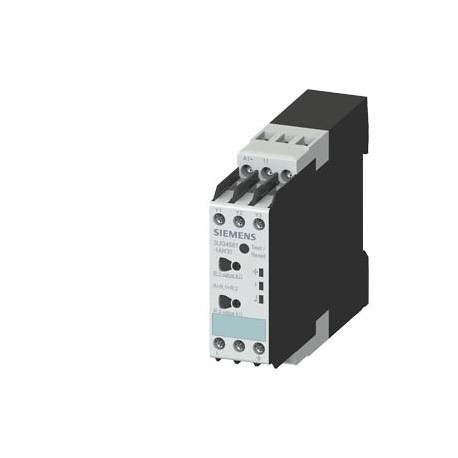

3UG4581-1AW30 SIEMENS Insulation monitoring relay for ungrounded (IT) supply systems up to 400 V AC, 50-60 H..
$0.00USD
4209 in stock
Key Specifications
:Confirmation
EAN:4011209901179
UPC:040892912524
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209901179 |
| UPC | 040892912524 |
| ETIM | 5 |
| Notes | Sucessor:successor product 3UG4581-1AW31 |
| depth | 100 mm |
| width | 22.5 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 78 mm |
| ● solid | 2x (0.75 ... 2.5 mm²) |
| Group Code | R711 |
| — upwards | 0 mm |
| Metal Factor | LAO----- |
| — forwards | 0 mm |
| ● stranded | 18 ... 14 |
| Date5/12/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 5885 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| — backwards | 0 mm |
| — downwards | 0 mm |
| Commodity Code | 85364900 |
| Product family | Ordering Data Overview |
| last modified: | 3/22/2022 |
| Net Weight (kg) | 0,153 Kg |
| type of voltage | |
| — at the side | 0 mm |
| Depth (EF000049) | 100.0 |
| Width (EF000008) | 22.5 |
| fastening method | snap-on fastening on 35 mm standard rail |
| product function | Insulation monitor |
| required spacing | |
| ● error memory | Yes |
| Country of origin | Germany |
| Height (EF000040) | 78.0 |
| mounting position | any |
| ● initial value | 0.85 |
| LKZ_FDB/ CatalogID | CC-IC10 |
| PLM Effective Date | Product phase-out since: 01.10.2021 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| ● for live parts | |
| ● for monitoring | AC |
| Function (EF000030) | - |
| Packaging Dimension | 80,00 x 106,00 x 29,00 |
| Product Description | Insulation monitoring relay for ungrounded (IT) supply systems up to 400 V AC, 50-60 Hz Measuring range 1-100 kohm Supply voltage 24-240 V AC/DC 22.5 mm, 1 change-over contact screw terminal |
| product designation | Insulation monitoring relay with analog setting |
| protection class IP | IP20 |
| ● full-scale value | 1.1 |
| number of CO contacts | |
| ● delayed switching | 1 |
| ● for grounded parts | |
| Product Lifecycle (PLM) | PM400:Phase Out Started |
| General Product Approval | EMC |
| Line capacity (EF003419) | 10.0 |
| Rated voltage (EF003977) | ['-', '-'] |
| measurable voltage at AC | 400 ... 0 V |
| product type designation | 3UG4 |
| ● at 50 Hz rated value | 24 ... 240 V |
| ● at 60 Hz rated value | 24 ... 240 V |
| Declaration of Conformity | Test Certificates |
| measurable line frequency | 50 ... 60 Hz |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Rated frequency (EF001663) | ['50', '60'] |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| control supply voltage at AC | |
| Substance Prohibitance (Date) | 05/01/2012 |
| type of electrical connection | screw-type terminals |
| ● with side-by-side mounting | |
| operating frequency rated value | 50 ... 60 Hz |
| With detachable clamps (EF003340) | false |
| ● of the control supply voltage | AC/DC |
| connectable conductor cross-section | |
| ambient temperature during operation | -25 ... +60 °C |
| surge voltage resistance rated value | 6 000 V |
| Article Number (Market Facing Number) | 3UG4581-1AW30 |
| Response value impedance 1 (EF008202) | ['1.0', '100.0'] |
| Response value impedance 2 (EF008203) | - |
| Voltage type for actuating (EF008242) | AC/DC |
| Error registration possible (EF003423) | true |
| Type of electric connection (EF003961) | Screw connection |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| number of NC contacts delayed switching | 0 |
| number of NO contacts delayed switching | 0 |
| reference code according to IEC 81346-2 | K |
| control supply voltage at DC rated value | 24 ... 240 V |
| Indication of insulation value (EF003422) | false |
| ● of the operating voltage for actuation | AC/DC |
| tightening torque with screw-type terminals | 0.6 ... 0.8 N·m |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 0 |
| type of connectable conductor cross-sections | |
| ● finely stranded with core end processing | 2x (0.75 ... 2.5 mm²) |
| Rated control supply voltage Us at DC (EF003980) | ['24', '240'] |
| Number of contacts as change-over contact (EF008257) | 1 |
| Region Specific PriceGroup / Headquarter Price Group | 41H / 41H |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['24.0', '240.0'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['24.0', '240.0'] |
| Number of contacts as normally open contact (EF008256) | 0 |
| AWG number as coded connectable conductor cross section | |
| Number of contacts as normally closed contact (EF008255) | 0 |
| thermal current of the switching element with contacts maximum | 4 A |
| operating range factor control supply voltage rated value at DC | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2012 |
| product component removable terminal for auxiliary and control circuit | No |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| operating range factor control supply voltage rated value at AC at 50 Hz | |
| operating range factor control supply voltage rated value at AC at 60 Hz | |
| General Product ApprovalEMCDeclaration of ConformityConfirmationUK Declaration of ConformityDeclaration of ConformityTest CertificatesMarine / ShippingotherRailwaySpecial Test CertificateConfirmationVibration and Shock | General Product Approval |
