3UF7600-1AB01-0

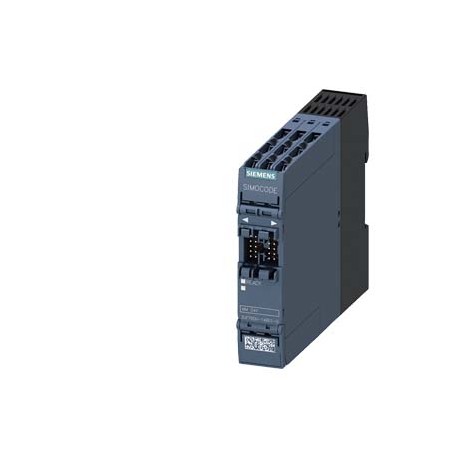

3UF7600-1AB01-0 SIEMENS Multifunctional module, 4 inputs and 2 relay outputs, input voltage 24 V DC, relay o..
$0.00USD
4313 in stock
Key Specifications
:
EAN:4011209916227
UPC:887621549282
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209916227 |
| UPC | 887621549282 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 124.5 mm |
| width | 22.5 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 100 mm |
| ● top | 40 mm |
| ● left | 0 mm |
| ● right | 0 mm |
| ● solid | 1x (0.5 ... 2.5 mm²), 2x ( 0.5 ... 1.5 mm²) |
| Group Code | R711 |
| ● bottom | 40 mm |
| ● at 24 V | 6 A |
| ● at 60 V | 0.55 A |
| Date5/9/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | None |
| ● at 120 V | 6 A |
| ● at 125 V | 0.25 A |
| ● at 230 V | 3 A |
| Product Group | 5836 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| ● 1 maximum | 2 000 m |
| ● 2 maximum | 3 000 m; max. +50 °C (no protective separation) |
| ● 3 maximum | 4 000 m; No protective separation at 40 °C |
| ● at 50 °C | 6 A |
| ● at 60 °C | 5 A |
| Commodity Code | 85389091 |
| Product family | SIMOCODE pro 3UF7 motor management and control devices |
| last modified: | 4/7/2022 |
| Net Weight (kg) | 0,233 Kg |
| ● rated value | 24 V |
| Model (EF000010) | Other |
| number of inputs | 4 |
| product function | |
| required spacing | |
| shock resistance | |
| ● relay output | Yes |
| Country of origin | Germany |
| Marine / Shipping | other |
| mounting position | any |
| number of outputs | 2 |
| product component | |
| ● digital input | Yes |
| ● initial value | 0.8 |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| switching behavior | monostable |
| ● during storage | -40 ... +80 °C |
| Packaging Dimension | 36,00 x 109,00 x 152,00 |
| Product Description | Multifunctional module, 4 inputs and 2 relay outputs, input voltage 24 V DC, relay outputs monostable, analog residual current detection, with residual-current transformer 3UL23 Connection temperature sensor Pt100/Pt1000/KTY/NTC, max. 1 multifunctional module per basic unit SIMOCODE pro S |
| ambient temperature | |
| product designation | Multifunction module |
| protection class IP | IP20 |
| vibration resistance | |
| ● during operation | -25 ... +60 °C |
| ● during transport | -40 ... +80 °C |
| ● full-scale value | 1.2 |
| ● with NTC maximum | 160 °C |
| ● with NTC minimum | 80 °C |
| consumed active power | 0.8 W |
| digital input version | |
| response time maximum | 0.1 s |
| conducted interference | |
| environmental category | |
| measurable temperature | |
| Product Lifecycle (PLM) | PM300:Active Product |
| number of analog inputs | 0 |
| number of sensor inputs | |
| ● at AWG cables solid | 1x (20 ... 14), 2x (20 ... 16) |
| ● with KTY 84 maximum | 300 °C |
| ● with KTY 84 minimum | -40 °C |
| ● with Pt 100 maximum | 500 °C |
| ● with Pt 100 minimum | -50 °C |
| General Product Approval | EMC |
| number of analog outputs | 0 |
| number of digital inputs | 4 |
| ● with Pt 1000 maximum | 500 °C |
| ● with Pt 1000 minimum | -50 °C |
| temperature drift per °C | 0.05 %/°C |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| ● at AWG cables stranded | 1x (20 ... 12), 2x (20 ... 14) |
| ● open-circuit detection | Yes |
| ● parameterizable inputs | Yes |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| ● parameterizable outputs | Yes |
| ● short-circuit detection | Yes |
| ● with KTY 83-110 maximum | 175 °C |
| ● with KTY 83-110 minimum | -50 °C |
| Package size unit of measure | MM |
| control supply voltage at DC | |
| ● type 1 acc. to IEC 61131 | No |
| ● type 2 acc. to IEC 61131 | Yes |
| Substance Prohibitance (Date) | 05/01/2012 |
| Switching function (EF000189) | Mono stable |
| manufacturer's article number | |
| For use in hazardous locations | Declaration of Conformity |
| type of current for monitoring | Type A (alternating currents and pulsing DC residual currents) |
| ● according to IEC 60068-2-6 | 1 ... 6 Hz: 15 mm, 6 ... 500 Hz: 2g |
| ● for ground fault detection | 1 |
| number of semiconductor outputs | 0 |
| ● according to IEC 60068-2-27 | 15g / 11 ms |
| ● for temperature measurement | 1 |
| sensor current for Pt 100 typical | 1 mA |
| Number of binary inputs (EF003817) | - |
| relative humidity during operation | 10 ... 95 % |
| ● input for thermistor connection | No |
| Degree of protection (IP) (EF005474) | IP20 |
| Number of analogue inputs (EF001994) | - |
| surge voltage resistance rated value | 4 000 V |
| ● input for ground fault detection | Yes |
| A/D conversion time at sensor circuit | 500 ms |
| Article Number (Market Facing Number) | 3UF7600-1AB01-0 |
| EMC immunity according to IEC 60947-1 | corresponds to degree of severity 3 |
| Number of analogue outputs (EF001995) | - |
| Voltage type for actuating (EF008242) | - |
| ● with a common reference potential | 4 |
| Degree of protection (NEMA) (EF011959) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Number of electronic outputs (EF006929) | 0 |
| measurable line frequency initial value | 16 Hz |
| product function ground fault detection | Yes |
| reference code according to IEC 81346-2 | F |
| wire length for digital signals maximum | 300 m |
| ● input for analog temperature sensors | Yes |
| ● input for residual current converter | Yes |
| adjustable current response value current | 40 ... 0.03 A |
| product function residual current display | Yes |
| property of contacts of the relay outputs | Floating NO contacts (NC reaction parameterizable via internal signal conditioning), of which 2 relay outputs connected to common ground and one relay output separately, can be freely assigned to the control functions (e.g. line, star (wye), delta contactor or signaling of the operating state) |
| touch protection against electrical shock | finger-safe |
| ● during storage according to IEC 60721 | 1K6 (no condensation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4 |
| Input for earth fault detection (EF007115) | true |
| Input for thermistor connection (EF007116) | - |
| Number of outputs, with contact (EF006936) | 2 |
| measurable line frequency full-scale value | 400 Hz |
| tightening torque with screw-type terminals | 0.6 ... 0.8 N·m |
| ● due to burst according to IEC 61000-4-4 | 2 kV (power ports) / 1 kV (signal ports) |
| ● during operation according to IEC 60721 | 3K6 (no formation of ice, no condensation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6 |
| ● during transport according to IEC 60721 | 2K2, 2C1, 2S1, 2M2 |
| buffering time in the event of power failure | 0.02 s |
| type of connectable conductor cross-sections | |
| ● finely stranded with core end processing | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.0 mm²) |
| design of short-circuit protection per output | Fuse links: gG 6 A, quick-response 10 A (IEC 60947-5-1), miniature circuit-breaker C char.: 1.6 A (IEC 60947-5-1) or 6 A (I_K < 500 A) |
| diagnostics function at sensor input with NTC | |
| type of voltage of the control supply voltage | DC |
| electrical endurance (switching cycles) typical | 100 000 |
| installation altitude at height above sea level | |
| type of connection technology of sensor circuit | 2-wire or 3-wire connection |
| Input for analogue temperature sensor (EF007114) | - |
| Rated control supply voltage Us at DC (EF003980) | - |
| diagnostics function at sensor input with KTY 84 | |
| diagnostics function at sensor input with Pt 100 | |
| input voltage at digital input at DC rated value | 24 V |
| EMC emitted interference according to IEC 60947-1 | class A |
| diagnostics function at sensor input with Pt 1000 | |
| galvanic isolation between inputs and electronics | No |
| ● 1 of residual current transformer connectable | 3UL2302-1A |
| ● 2 of residual current transformer connectable | 3UL2303-1A |
| ● 3 of residual current transformer connectable | 3UL2304-1A |
| ● 4 of residual current transformer connectable | 3UL2305-1A |
| ● 5 of residual current transformer connectable | 3UL2306-1A |
| ● 6 of residual current transformer connectable | 3UL2307-1A |
| electrostatic discharge according to IEC 61000-4-2 | 6 kV contact discharge / 8 kV air discharge |
| mechanical service life (switching cycles) typical | 10 000 000 |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| Region Specific PriceGroup / Headquarter Price Group | 42J / 42J |
| contact rating of auxiliary contacts according to UL | B300 / R300 |
| diagnostics function at sensor input with KTY 83-110 | |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| tightening torque [lbf·in] with screw-type terminals | 5.2 ... 7 lbf·in |
| number of outputs as contact-affected switching element | 2 |
| conducted HF interference emissions according to CISPR11 | corresponds to degree of severity A |
| sensor current for Pt 1000/KTY 83-110/KTY 84/NTC typical | 0.2 mA |
| field-bound HF interference emission according to CISPR11 | corresponds to degree of severity A |
| continuous current of the NO contacts of the relay outputs | |
| ● due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| design of the sensor for temperature measurement connectable | PT100 / PT1000 / KTY83-110 / KTY84 / NTC |
| relative temperature-related measurement deviation at 20 °C | 2 % |
| (electrically) protective separation according to IEC 60947-1 | All circuits with protective separation (double creepage paths and clearances), the information in the "Protective Separation" test report, No. A0258, must be observed (link see further information) |
| relative measurement deviation of residual current transformer | 7.5 % |
| ● due to high-frequency radiation according to IEC 61000-4-6 | 10 V |
| insulation voltage with degree of pollution 3 at AC rated value | 300 V |
| operating range factor control supply voltage rated value at DC | |
| ● due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| certificate of suitability according to ATEX directive 2014/34/EU | BVS 06 ATEX F001 |
| diameter of inlet opening of connectable residual current transformer | 35 ... 210 mm |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2012 |
| diagnostics function at sensor input with residual current transformer | |
| product component removable terminal for auxiliary and control circuit | Yes |
| ● when mounted on current measuring module according to IEC 60068-2-6 | 1 ... 4 Hz / 15 mm, 4 ... 500 Hz / 1g |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| ● when mounted on current measuring module according to IEC 60068-2-27 | 10 g / 11 ms |
| explosion device group and category according to ATEX directive 2014/34/EU | II (2) G, II (2 ) D, I (M2) |
| switching capacity current of the NO contacts of the relay outputs at AC-15 | |
| switching capacity current of the NO contacts of the relay outputs at DC-13 | |
| Type of electrical connection for auxiliary- and control current circuit (EF006979) | Screw connection |
| General Product ApprovalEMCConfirmationFor use in hazardous locationsDeclaration of ConformityTest CertificatesMarine / ShippingSpecial Test CertificateType Test Certificates/Test ReportMarine / ShippingotherConfirmation | General Product Approval |
