3UF7100-1AA00-0

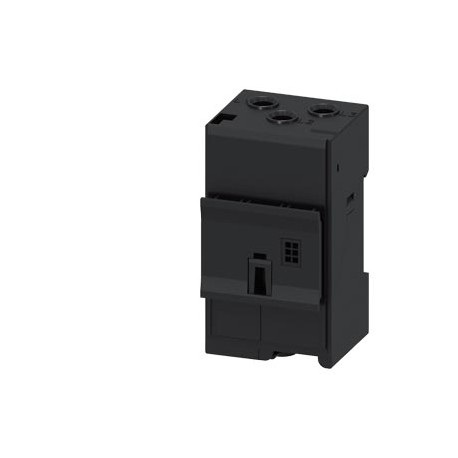

3UF7100-1AA00-0 SIEMENS Current measuring module, Set current 0.3...3 A Overall width 45 mm, straight-throug..
$0.00USD
4537 in stock
Key Specifications
:Confirmation
EAN:4011209607927
UPC:754554901688
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209607927 |
| UPC | 754554901688 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 45 mm |
| width | 45 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 84 mm |
| ● top | 30 mm |
| ● left | 0 mm |
| ● at AC | |
| ● right | 0 mm |
| Group Code | R711 |
| ● bottom | 30 mm |
| Metal Factor | L-O----- |
| Date5/10/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 5836 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| ● 1 maximum | 2 000 m |
| ● 2 maximum | 3 000 m; max. +50 °C (no protective separation) |
| ● 3 maximum | 4 000 m; max. +40 °C (no protective separation) |
| Commodity Code | 85364900 |
| Product family | SIMOCODE pro 3UF7 motor management and control devices |
| last modified: | 4/7/2022 |
| Net Weight (kg) | 0,171 Kg |
| type of voltage | AC |
| fastening method | screw and snap-on mounting |
| product function | |
| required spacing | |
| Country of origin | Germany |
| Marine / Shipping | other |
| mounting position | any |
| operating voltage | |
| product component | |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| insulation voltage | |
| product brand name | SIRIUS |
| ● during storage | -40 ... +80 °C |
| Packaging Dimension | 47,00 x 114,00 x 55,00 |
| Product Description | Current measuring module, Set current 0.3...3 A Overall width 45 mm, straight-through transformer |
| ambient temperature | |
| product designation | Current measuring module |
| protection class IP | IP20 |
| vibration resistance | 1-6 Hz / 15 mm; 6-500 Hz / 2 g |
| ● during operation | -25 ... +60 °C |
| ● during transport | -40 ... +80 °C |
| consumed active power | 0.2 W |
| ● current detection | Yes |
| ● power measurement | No |
| ● voltage detection | No |
| conducted interference | |
| environmental category | |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● current measurement | Yes |
| ● overload protection | Yes |
| ● voltage measurement | No |
| General Product Approval | EMC |
| — at 50 Hz rated value | 110 ... 690 V |
| — at 60 Hz rated value | 110 ... 690 V |
| diameter of inlet opening | 7.5 mm |
| ● frequency measurement | No |
| Export Control Regulations | AL : N / ECCN : N |
| certificate of suitability | |
| Standard lead time ex-works | 25 Day/Days |
| Surcharge for Raw Materials | None |
| ● ground-fault monitoring | No |
| ● power factor monitoring | No |
| Package size unit of measure | MM |
| Type of interface (EF006977) | - |
| ● active power measurement | No |
| Substance Prohibitance (Date) | 05/28/2009 |
| Switching function (EF000189) | - |
| For use in hazardous locations | Declaration of Conformity |
| operating frequency rated value | 50 ... 60 Hz |
| Rated voltage Ue at DC (EF007031) | ['-', '-'] |
| Number of binary inputs (EF003817) | - |
| relative humidity during operation | 5 ... 95 % |
| Current detection module (EF007501) | true |
| Voltage detection module (EF007492) | false |
| ● input for thermistor connection | No |
| Degree of protection (IP) (EF005474) | IP20 |
| Number of analogue inputs (EF001994) | - |
| Rated operation frequency (EF007024) | ['50.0', '60.0'] |
| Type of connection system (EF008220) | Through-feed technique |
| surge voltage resistance rated value | 6 000 V |
| Article Number (Market Facing Number) | 3UF7100-1AA00-0 |
| EMC immunity according to IEC 60947-1 | corresponds to degree of severity 3 |
| Number of analogue outputs (EF001995) | - |
| Rated operation current Ie (EF006781) | - |
| Voltage type for actuating (EF008242) | AC |
| Degree of protection (NEMA) (EF011959) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Number of electronic outputs (EF006929) | - |
| Rated voltage Ue at AC 50 Hz (EF007029) | ['110', '690'] |
| Rated voltage Ue at AC 60 Hz (EF007030) | ['110', '690'] |
| reference code according to IEC 81346-2 | F |
| number of poles for main current circuit | 3 |
| product function short circuit protection | No |
| ● during storage according to IEC 60721 | 1K6 (no condensation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4 |
| Input for earth fault detection (EF007115) | - |
| Input for thermistor connection (EF007116) | false |
| Number of outputs, with contact (EF006936) | 0 |
| ● according to ATEX directive 2014/34/EU | BVS 06 ATEX F001 |
| ● due to burst according to IEC 61000-4-4 | 2 kV |
| ● during operation according to IEC 60721 | 3K6 (no formation of ice, no condensation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6 |
| ● during transport according to IEC 60721 | 2K2, 2C1, 2S1, 2M2 |
| shock resistance according to IEC 60068-2-27 | 15g / 11 ms |
| installation altitude at height above sea level | |
| Input for analogue temperature sensor (EF007114) | - |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] |
| ● with degree of pollution 3 at AC rated value | 690 V |
| EMC emitted interference according to IEC 60947-1 | class A |
| diameter of inlet opening for current measurement | 7.5 mm |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| Region Specific PriceGroup / Headquarter Price Group | 42J / 42J |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| number of outputs as contact-affected switching element | 0 |
| ● due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| (electrically) protective separation according to IEC 60947-1 | All circuits with protective separation (double creepage paths and clearances), the information in the "Protective Separation" test report, No. A0258, must be observed (link see further information) |
| ● due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| ● for wires of main circuit according to IEC 60947-1 rated value | 6 kV |
| Compliance with the substance restrictions according to RoHS directive | Since: 28.05.2009 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| explosion device group and category according to ATEX directive 2014/34/EU | II (2) G, II (2 ) D, I (M2) |
| Type of electrical connection for auxiliary- and control current circuit (EF006979) | - |
| adjustable current response value current of the current-dependent overload release | 0.3 ... 3 A |
| General Product ApprovalEMCConfirmationFor use in hazardous locationsDeclaration of ConformityTest CertificatesSpecial Test CertificateType Test Certificates/Test ReportMarine / ShippingotherConfirmation | General Product Approval |
