3TX7462-3D

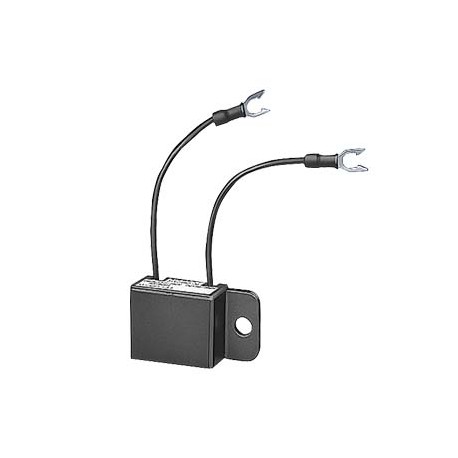

3TX7462-3D SIEMENS Surge suppressor Diode combination (diode and Zener diode) for gluing on 24-250 V DC, DC ..
$0.00USD
3436 in stock
Key Specifications
:
EAN:4011209055827
UPC:754554345482
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209055827 |
| UPC | 754554345482 |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 14 |
| eClass | 6 |
| ● at DC | V |
| Group Code | R711 |
| Date5/2/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | None |
| Product Group | 5804 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85363010 |
| Product family | Accessories for 3TC contactors |
| last modified: | 4/21/2021 |
| Net Weight (kg) | 0,014 Kg |
| Country of origin | Czech Republic |
| Test Certificates | other |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| Packaging Dimension | 23,00 x 34,00 x 14,00 |
| Product Description | Surge suppressor Diode combination (diode and Zener diode) for gluing on 24-250 V DC, DC magnet system short break time for DC contactor 3TC |
| product designation | |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Special Test Certificate | Miscellaneous |
| control supply voltage 1 | |
| Export Control Regulations | AL : N / ECCN : N |
| certificate of suitability | |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| design of the surge suppressor | |
| Article Number (Market Facing Number) | 3TX7462-3D |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| type of voltage of the control supply voltage | |
| Region Specific PriceGroup / Headquarter Price Group | 41B / 41B |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityUK Declaration of ConformityTest CertificatesotherSpecial Test CertificateMiscellaneousConfirmation | General Product Approval |
Product Description
Diode combination surge limiter (diode and Zener diode) to glue DC 24-250V, DC magnetic system, reduced disconnection time, for SIRIUS Contactors size 3
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
