3TX4422-2B

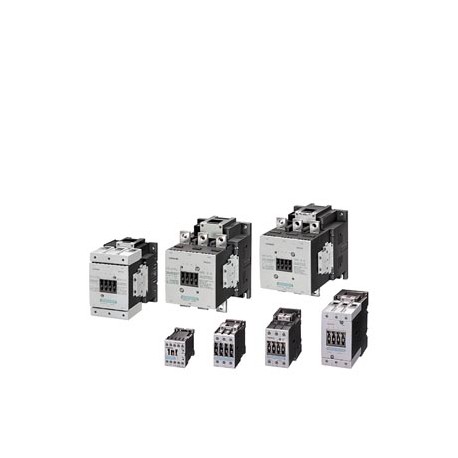

3TX4422-2B SIEMENS Auxiliary switch block, with flat connector terminal for contactor relays and motor conta..
$0.00USD
3181 in stock
Key Specifications
:Value
EAN:4011209088245
UPC:Not available
Depth:25 mm
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4011209088245 |
| UPC | Not available |
| Depth | 25 mm |
| Width | 45 mm |
| Height | 24 mm |
| Group Code | R711 |
| Price Group | 41A |
| — at 24 V | 10 A |
| — at 60 V | 5 A |
| ● at 24 V | 10 A |
| ● maximum | 10 A |
| Metal Factor | LDP----- |
| — at 110 V | 1.1 A |
| — at 125 V | 10 A |
| — at 220 V | 0.5 A |
| — at 230 V | 5.6 A |
| — at 400 V | 3.6 A |
| — at AC-14 | |
| — at AC-15 | |
| ● at 230 V | 10 A |
| Mounting type | snap-on mounting |
| Product Group | 5800 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | Not available |
| last modified: | 08/18/2020 |
| Net Weight (kg) | 0,040 Kg |
| Model (EF000010) | - |
| Country of origin | Turkey |
| Operating current | |
| Test Certificates | Shipping Approval |
| LKZ_FDB/ CatalogID | NSE |
| PLM Effective Date | Product is cancelled since: 01.04.2020 |
| Packaging Quantity | 1 |
| ● during storage | -55 ... +80 °C |
| Ambient temperature | |
| Packaging Dimension | 44,00 x 42,00 x 57,00 |
| Product Description | Auxiliary switch block, with flat connector terminal for contactor relays and motor contactors EN 50005 Ident. no. 22, 2 NO + 2 NC |
| Suitability for use | Contactor relay and power contactor |
| — finely stranded | |
| ● leading contact | 0 |
| ● during operation | -25 ... +55 °C |
| ● lagging switching | 0 |
| Lamp holder (EF000048) | None |
| Product Lifecycle (PLM) | PM410:Product cancellation |
| General Product Approval | Test Certificates |
| ● instantaneous contact | 2 |
| ● of auxiliary contacts | |
| Export Control Regulations | ECCN : N / AL : N |
| Mounting method (EF000003) | Other |
| ● for auxiliary contacts | |
| Standard lead time ex-works | 20 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| — with core end processing | 2x (0.5 ... 1.0 mm²), 2x (0.75 ... 2.5 mm²) |
| Product Dimensions (W x L x H) | Not available |
| Protection class IP on the front | IP20 |
| ● at AC-15 at 690 V rated value | 2.3 A |
| Type Test Certificates/Test Report | |
| ● of auxiliary contacts at DC-12 | |
| ● of auxiliary contacts at DC-13 | |
| Surge voltage resistance rated value | 6 kV |
| Article Number (Market Facing Number) | 3TX4422-2B |
| Type of electric connection (EF003961) | Flat plug-in connection |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Number of fault-signal switches (EF007613) | 0 |
| Number of NC contacts for auxiliary contacts | |
| Number of NO contacts for auxiliary contacts | |
| Type of connectable conductor cross-sections | |
| ● at AWG conductors for auxiliary contacts | 2x (18 ... 12) |
| Operating current of auxiliary contacts at AC-12 | |
| Mechanical service life (switching cycles) typical | 10 000 000 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Rated operation current Ie at AC-15, 230 V (EF001385) | 5.6 |
| Number of contacts as normally open contact (EF008256) | 2 |
| Number of contacts as normally closed contact (EF008255) | 2 |
| Insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| Product function positively driven operation acc. to IEC 60947-5-1 | Yes |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| Type of electrical connection for auxiliary and control current circuit | 2.8 mm plug-in technology |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalTest CertificatesKCSpecial Test CertificateTest CertificatesShipping ApprovalotherType Test Certificates/Test ReportConfirmation | General Product Approval |
