3TX2746-2G

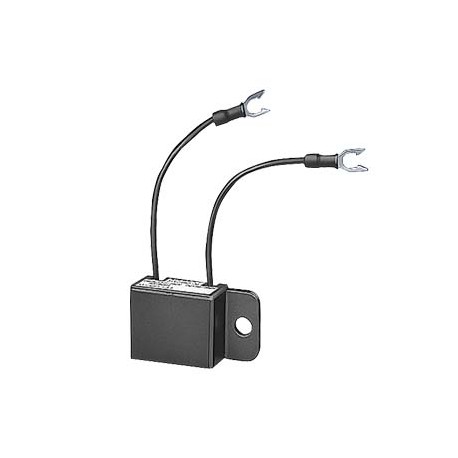

3TX2746-2G SIEMENS Surge suppressor Varistor 110 V AC/DC for contactors size 12
$0.00USD
4967 in stock
Key Specifications
:
EAN:4011209095076
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209095076 |
| UPC | Not available |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 15 |
| eClass | 6 |
| ● at AC | |
| Group Code | R711 |
| Date5/9/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | None |
| Product Group | 5807 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85363010 |
| Product family | Accessories and spare parts for 3TC7 contactors |
| last modified: | 4/21/2021 |
| Net Weight (kg) | 0,082 Kg |
| Model (EF000010) | Varistor (voltage-sensitive resistor) |
| Country of origin | Germany |
| ● 1 rated value | Hz |
| ● 2 rated value | Hz |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| Packaging Dimension | 58,00 x 82,00 x 106,00 |
| Product Description | Surge suppressor Varistor 110 V AC/DC for contactors size 12 |
| product designation | |
| ● at DC rated value | V |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| control supply voltage 1 | |
| — at 50 Hz rated value | V |
| — at 60 Hz rated value | V |
| Export Control Regulations | AL : N / ECCN : N |
| certificate of suitability | |
| Standard lead time ex-works | 10 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| design of the surge suppressor | |
| control supply voltage frequency | |
| Rated voltage Ue at DC (EF007031) | ['-', '110'] |
| Article Number (Market Facing Number) | 3TX2746-2G |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Rated voltage Ue at AC 50 Hz (EF007029) | ['-', '110'] |
| Rated voltage Ue at AC 60 Hz (EF007030) | ['-', '110'] |
| Voltage type (operating voltage) (EF005294) | AC/DC |
| type of voltage of the control supply voltage | |
| Region Specific PriceGroup / Headquarter Price Group | 41B / 41B |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityotherUK Declaration of ConformityConfirmation | General Product Approval |
Product Description
Overvoltage limiter, AC/DC 110V varistor, for SIRIUS Contactors size 12. Manufactured to order. Non-Cancelable Non-Returnable.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
