In Stock Hot Product
3TK2040-3AP2

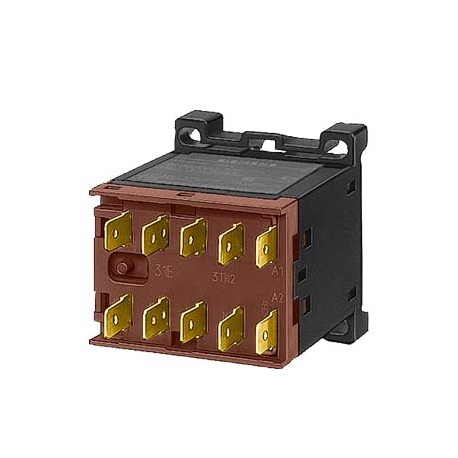

3TK2040-3AP2 SIEMENS Miniature contactor, Flat connector terminal, 4 NO Snap-on mounting standard mounting r..
$0.00USD
3577 in stock
Key Specifications
:Value
EAN:4011209107458
UPC:Not available
Notes:Product was deleted without replacementIf you need assistance please contact our local Siemens office
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4011209107458 |
| UPC | Not available |
| Notes | Product was deleted without replacementIf you need assistance please contact our local Siemens office |
| depth | 64.5 mm |
| width | 45 mm |
| height | 48 mm |
| Group Code | R711 |
| Price Group | 41B |
| Metal Factor | L-O----- |
| Product Group | 5809 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| mounting type | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 |
| Commodity Code | 85364900 |
| Product family | Not available |
| last modified: | 08/25/2020 |
| Net Weight (kg) | 0,166 Kg |
| Country of origin | Turkey |
| Size of contactor | 0 |
| ● 1 rated value | 50 Hz |
| ● 2 rated value | 60 Hz |
| LKZ_FDB/ CatalogID | NSE |
| PLM Effective Date | Product discontinued since: 01.10.2019 |
| Packaging Quantity | 1 |
| Packaging Dimension | 49,00 x 52,00 x 73,00 |
| Product Description | Miniature contactor, Flat connector terminal, 4 NO Snap-on mounting standard mounting rail 240 V AC 50/60 Hz AC operation !!! Phased-out product !!! Successor is SIRIUS 3RT23/25 |
| product designation | Miniature contactor |
| ● leading contact | 0 |
| Product Lifecycle (PLM) | PM490:Start of final year of support |
| product type designation | 3TK20 |
| ● instantaneous contact | 0 |
| ● side-by-side mounting | Yes |
| Export Control Regulations | ECCN : N / AL : N |
| Modular version (EF001126) | true |
| Standard lead time ex-works | 20 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| ● for main current circuit | tab terminals 6,3 mm |
| type of electrical connection | |
| Product Dimensions (W x L x H) | Not available |
| control supply voltage frequency | |
| protection class IP on the front | IP00 |
| Article Number (Market Facing Number) | 3TK2040-3AP2 |
| Rated operation power NEMA (EF011960) | - |
| Voltage type for actuating (EF008242) | AC |
| reference code acc. to DIN EN 81346-2 | Q |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ● Operating current at AC-1 at 400 V | |
| Number of NC contacts for main contacts | 0 |
| Number of NO contacts for main contacts | 4 |
| number of poles for main current circuit | 4 |
| ● ambient temperature during operation | -25 ... +55 °C |
| Number of NO contacts for auxiliary contacts | |
| Type of voltage of the control supply voltage | AC |
| — at ambient temperature 40 °C rated value | 16 A |
| ● for auxiliary and control current circuit | tab terminals 6.3 mm |
| Rated operation power at AC-3, 400 V (EF001364) | 4.0 |
| Rated operation power at AC-4, 400 V (EF008496) | - |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] |
| ● Operating power at AC-1 at 400 V rated value | 10 kW |
| ● number of NC contacts for auxiliary contacts | 0 |
| ● operating power at AC-3 at 400 V rated value | 4 kW |
| Control version of the switch operating mechanism | conventional |
| ● operating current at AC-3 at 400 V rated value | 9 A |
| Rated operation current Ie at AC-1, 400 V (EF001393) | - |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 9 |
| Rated operation current Ie at AC-4, 400 V (EF008495) | - |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| ● Control supply voltage at AC at 50 Hz rated value | 240 V |
| ● Control supply voltage at AC at 60 Hz rated value | 240 V |
| Type of electrical connection of main circuit (EF006819) | Flat plug-in connection |
| Number of main contacts as normally open contact (EF001374) | 4 |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| ● Number of NC contacts for auxiliary contacts lagging switching | 0 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| ● Number of NC contacts for auxiliary contacts instantaneous contact | 0 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
