3TK2022-0BB4

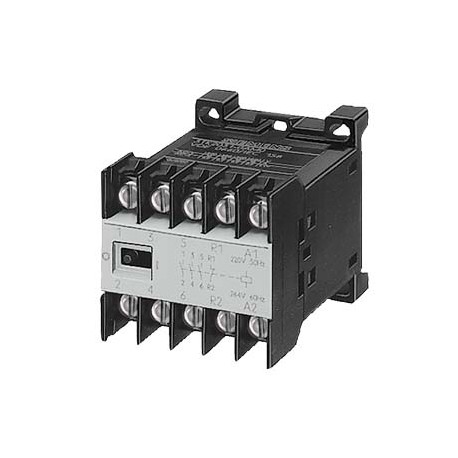

3TK2022-0BB4 SIEMENS Miniature contactor, Screw terminal, 2 NO + 2 NC Snap-on mounting standard mounting rai..
$0.00USD
3736 in stock
Key Specifications
:Value
EAN:4011209050174
UPC:754554202532
Depth:68 mm
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4011209050174 |
| UPC | 754554202532 |
| Depth | 68 mm |
| Width | 45 mm |
| Height | 48 mm |
| Group Code | R711 |
| Price Group | 41B |
| Metal Factor | L-P----- |
| Mounting type | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 |
| Product Group | 5809 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85364900 |
| Product family | Not available |
| last modified: | 08/18/2020 |
| Net Weight (kg) | 0,213 Kg |
| Operating power | |
| ● rated value | 24 V |
| Country of origin | Turkey |
| Operating current | |
| Size of contactor | 0 |
| LKZ_FDB/ CatalogID | CC-IC10 |
| PLM Effective Date | Product is cancelled since: 01.04.2020 |
| Packaging Quantity | 1 |
| Ambient temperature | |
| Packaging Dimension | 49,00 x 52,00 x 71,00 |
| Product Description | Miniature contactor, Screw terminal, 2 NO + 2 NC Snap-on mounting standard mounting rail 24 VDC DC operation !!! Phased-out product !!! Successor is SIRIUS 3RT23/25 |
| Product designation | Miniature contactor |
| ● leading contact | 0 |
| ● at AC-1 at 400 V | |
| ● during operation | -25 ... +55 °C |
| ● lagging switching | 0 |
| Product Lifecycle (PLM) | PM410:Product cancellation |
| Product type designation | 3TK20 |
| ● Side-by-side mounting | Yes |
| ● instantaneous contact | 0 |
| Export Control Regulations | ECCN : N / AL : N |
| Modular version (EF001126) | true |
| Standard lead time ex-works | 20 Day/Days |
| Surcharge for Raw Materials | None |
| Control supply voltage at DC | |
| Package size unit of measure | MM |
| ● for main current circuit | screw-type terminals |
| Type of electrical connection | |
| Product Dimensions (W x L x H) | Not available |
| protection class IP on the front | IP20 |
| ● at AC-1 at 400 V rated value | 10 kW |
| ● at AC-3 at 400 V rated value | 9 A |
| Article Number (Market Facing Number) | 3TK2022-0BB4 |
| Rated operation power NEMA (EF011960) | - |
| Reference code acc. to DIN EN 81346-2 | Q |
| Voltage type for actuating (EF008242) | DC |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Number of NC contacts for main contacts | 2 |
| Number of NO contacts for main contacts | 2 |
| Number of poles for main current circuit | 4 |
| Number of NC contacts for auxiliary contacts | 0 |
| Number of NO contacts for auxiliary contacts | |
| Type of voltage of the control supply voltage | DC |
| — at ambient temperature 40 °C rated value | 16 A |
| ● for auxiliary and control current circuit | screw-type terminals |
| Rated operation power at AC-3, 400 V (EF001364) | 4.0 |
| Rated operation power at AC-4, 400 V (EF008496) | - |
| Rated control supply voltage Us at DC (EF003980) | ['-', '24'] |
| Control version of the switch operating mechanism | conventional |
| Rated operation current Ie at AC-1, 400 V (EF001393) | - |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 9 |
| Rated operation current Ie at AC-4, 400 V (EF008495) | - |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Number of main contacts as normally open contact (EF001374) | 2 |
| Number of normally closed contacts as main contact (EF001375) | 2 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
