3TK1972-0AB0

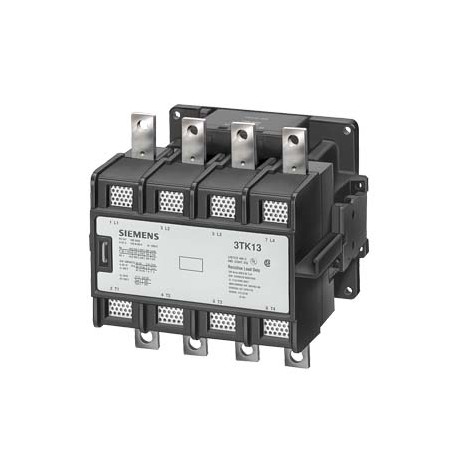

3TK1972-0AB0 SIEMENS Magnet coil for 3TK12, 3TK13, 24 V AC 50Hz !!! Phased-out product !!! Successor is SIRI..
$0.00USD
3780 in stock
Key Specifications
:Value
EAN:4011209330795
UPC:Not available
Group Code:R711
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4011209330795 |
| UPC | Not available |
| Group Code | R711 |
| Price Group | 41B |
| ● 1 at AC | |
| Metal Factor | L-R----- |
| ● at 50 Hz | 0.85 ... 1.1 |
| Product Group | 5805 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85045000 |
| Product family | Not available |
| last modified: | 07/28/2020 |
| Net Weight (kg) | 0,519 Kg |
| Country of origin | Sweden |
| ● 1 rated value | 50 Hz |
| LKZ_FDB/ CatalogID | CC-IC10 |
| PLM Effective Date | Product is cancelled since: 01.10.2019 |
| Packaging Quantity | 1 |
| Product brand name | 3T |
| Packaging Dimension | 113,00 x 133,00 x 60,00 |
| Product Description | Magnet coil for 3TK12, 3TK13, 24 V AC 50Hz !!! Phased-out product !!! Successor is SIRIUS 3RT |
| Product designation | Magnet coil |
| Control supply voltage | |
| Product Lifecycle (PLM) | PM410:Product cancellation |
| General Product Approval | Test Certificates |
| — at 50 Hz rated value | 24 V |
| Export Control Regulations | ECCN : N / AL : N |
| Standard lead time ex-works | 20 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Product Dimensions (W x L x H) | Not available |
| Control supply voltage frequency | |
| Article Number (Market Facing Number) | 3TK1972-0AB0 |
| Voltage type for actuating (EF008242) | AC |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Type of voltage of the control supply voltage | AC |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['24', '-'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['-', '-'] |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| Operating range factor control supply voltage rated value of magnet coil at AC | |
| General Product ApprovalTest CertificatesotherSpecial Test CertificateConfirmation | General Product Approval |
