3TK1542-0AP0

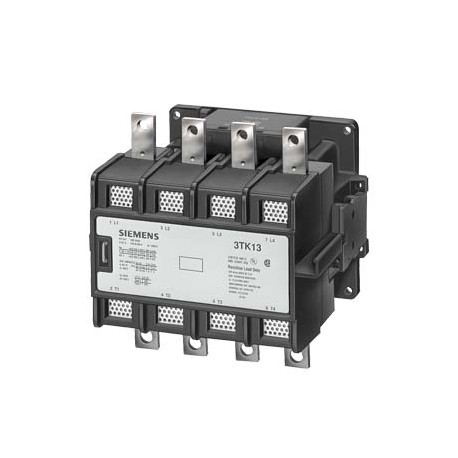

3TK1542-0AP0 SIEMENS Contactor, AC-1, 4-pole, 800 A, main contacts 4 NO, Auxiliary contacts 2 NO + 2 NC, AC ..
$0.00USD
3026 in stock
Key Specifications
:VersionClassificationeClass627-37-10-03eClass7.127-37-10-03eClass827-37-10-03eClass927-37-10-03eClass9.127-37-10-03ETIM5EC000066ETIM6EC000066ETIM7EC000066ETIM8EC000066IDEA44755UNSPSC1439-12-15-21UNSPSC1539-12-15-29
EAN:4011209330481
UPC:754554944449
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-10-03eClass7.127-37-10-03eClass827-37-10-03eClass927-37-10-03eClass9.127-37-10-03ETIM5EC000066ETIM6EC000066ETIM7EC000066ETIM8EC000066IDEA44755UNSPSC1439-12-15-21UNSPSC1539-12-15-29 | |
| EAN | 4011209330481 |
| UPC | 754554944449 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 225.5 mm |
| width | 266 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 272 mm |
| Group Code | R711 |
| Date5/3/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | LFO----- |
| Product Group | 5805 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85364900 |
| Product family | 3TK1 contactors for resistive loads (AC-1), 4-pole |
| last modified: | 12/23/2020 |
| Net Weight (kg) | 19,068 Kg |
| operating power | |
| fastening method | screw fixing |
| Country of origin | Norway |
| ● 1 rated value | 50 Hz |
| ● 2 rated value | 60 Hz |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| Packaging Dimension | 320,00 x 380,00 x 240,00 |
| Product Description | Contactor, AC-1, 4-pole, 800 A, main contacts 4 NO, Auxiliary contacts 2 NO + 2 NC, AC operation 220...230 V AC 50 Hz/240 V AC 60 Hz |
| operational current | |
| ● leading contact | 0 |
| ● at AC-1 at 400 V | |
| ● lagging switching | 0 |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● at 50 Hz rated value | 230 V |
| ● instantaneous contact | 2 |
| ● side-by-side mounting | Yes |
| Export Control Regulations | AL : N / ECCN : N |
| Modular version (EF001126) | true |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| control supply voltage at AC | |
| ● for main current circuit | screw-type terminals |
| Substance Prohibitance (Date) | 07/01/2006 |
| type of electrical connection | |
| control supply voltage frequency | |
| protection class IP on the front | IP00 |
| ● at AC-1 at 400 V rated value | 525 kW |
| ● at AC-3 at 400 V rated value | 550 A |
| ambient temperature during operation | -25 ... +55 °C |
| Article Number (Market Facing Number) | 3TK1542-0AP0 |
| Rated operation power NEMA (EF011960) | - |
| Voltage type for actuating (EF008242) | AC |
| ● for auxiliary and control circuit | screw-type terminals |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| number of NC contacts for main contacts | 0 |
| number of NO contacts for main contacts | 4 |
| reference code according to IEC 81346-2 | Q |
| number of poles for main current circuit | 4 |
| number of NC contacts for auxiliary contacts | 2 |
| number of NO contacts for auxiliary contacts | |
| type of voltage of the control supply voltage | AC |
| — at ambient temperature 40 °C rated value | 800 A |
| Rated operation power at AC-3, 400 V (EF001364) | 280.0 |
| Rated operation power at AC-4, 400 V (EF008496) | - |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] |
| control version of the switch operating mechanism | conventional |
| Rated operation current Ie at AC-1, 400 V (EF001393) | - |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 550 |
| Rated operation current Ie at AC-4, 400 V (EF008495) | - |
| Region Specific PriceGroup / Headquarter Price Group | 41B / 41B |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| identification number and letter for switching elements | 22 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Number of main contacts as normally open contact (EF001374) | 4 |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 2 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
