3TK1242-0AF0

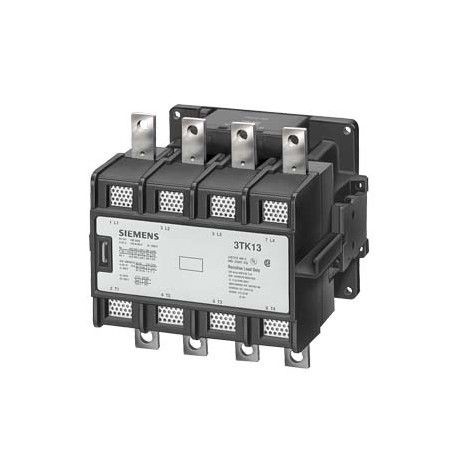

3TK1242-0AF0 SIEMENS Contactor, AC-1, 4-pin, 300 A, main contacts 4 NO, Auxiliary contacts 2 NO + 2 NC, AC o..
$0.00USD
4044 in stock
Key Specifications
:Value
EAN:4011209330382
UPC:Not available
Depth:172 mm
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4011209330382 |
| UPC | Not available |
| Depth | 172 mm |
| Notes | Sucessor:The successor is 3RT1364 |
| Width | 225 mm |
| Height | 198 mm |
| Group Code | R711 |
| Price Group | 41B |
| Metal Factor | LFO----- |
| Mounting type | screw fixing |
| Product Group | 5805 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85364900 |
| Product family | Not available |
| last modified: | 08/18/2020 |
| Net Weight (kg) | 7,072 Kg |
| Operating power | |
| Country of origin | Bulgaria |
| Operating current | |
| ● 1 rated value | 50 Hz |
| ● 2 rated value | 60 Hz |
| LKZ_FDB/ CatalogID | CC-IC10 |
| PLM Effective Date | Product is cancelled since: 01.10.2019 |
| Packaging Quantity | 1 |
| Ambient temperature | |
| Packaging Dimension | 230,00 x 240,00 x 185,00 |
| Product Description | Contactor, AC-1, 4-pin, 300 A, main contacts 4 NO, Auxiliary contacts 2 NO + 2 NC, AC operation 110 V AC 50 Hz/120 V AC 60 Hz !!! Phased-out product !!! Successor is SIRIUS 3RT Preferred successor type is 3RT1364-6AF36 |
| ● leading contact | 0 |
| ● at AC-1 at 400 V | |
| ● during operation | -25 ... +55 °C |
| ● lagging switching | 0 |
| Product Lifecycle (PLM) | PM410:Product cancellation |
| ● at 50 Hz rated value | 110 V |
| ● Side-by-side mounting | Yes |
| ● instantaneous contact | 2 |
| Export Control Regulations | ECCN : N / AL : N |
| Modular version (EF001126) | true |
| Standard lead time ex-works | 20 Day/Days |
| Surcharge for Raw Materials | None |
| Control supply voltage at AC | |
| Package size unit of measure | MM |
| ● for main current circuit | screw-type terminals |
| Type of electrical connection | |
| Product Dimensions (W x L x H) | Not available |
| control supply voltage frequency | |
| protection class IP on the front | IP00 |
| ● at AC-1 at 400 V rated value | 195 kW |
| ● at AC-3 at 400 V rated value | 210 A |
| Article Number (Market Facing Number) | 3TK1242-0AF0 |
| Rated operation power NEMA (EF011960) | - |
| Reference code acc. to DIN EN 81346-2 | Q |
| Voltage type for actuating (EF008242) | AC |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Number of NC contacts for main contacts | 0 |
| Number of NO contacts for main contacts | 4 |
| Number of poles for main current circuit | 4 |
| Number of NC contacts for auxiliary contacts | 2 |
| Number of NO contacts for auxiliary contacts | |
| Type of voltage of the control supply voltage | AC |
| — at ambient temperature 40 °C rated value | 300 A |
| ● for auxiliary and control current circuit | screw-type terminals |
| Rated operation power at AC-3, 400 V (EF001364) | 110.0 |
| Rated operation power at AC-4, 400 V (EF008496) | - |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] |
| Control version of the switch operating mechanism | conventional |
| Rated operation current Ie at AC-1, 400 V (EF001393) | - |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 210 |
| Rated operation current Ie at AC-4, 400 V (EF008495) | - |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| Identification number and letter for switching elements | 22 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Number of main contacts as normally open contact (EF001374) | 4 |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 2 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
