In Stock Hot Product
3TH4454-0AP2

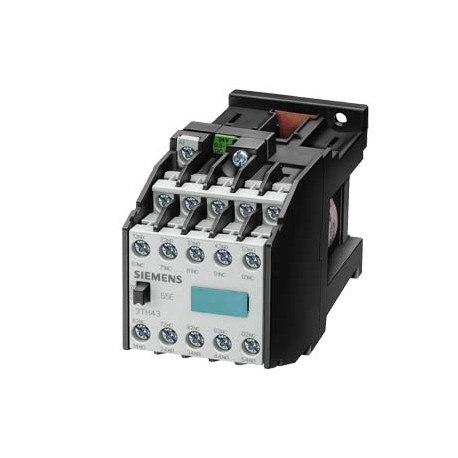

3TH4454-0AP2 SIEMENS Contactor relay, 54, EN 50011, 5NO + 4NC, Snap-on and screw mounting with mechanical la..
$0.00USD
3902 in stock
Key Specifications
:Value
EAN:4011209088337
UPC:754554373805
ETIM:4
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4011209088337 |
| UPC | 754554373805 |
| ETIM | 4 |
| IDEA | 4 |
| Depth | 140 mm |
| Width | 55 mm |
| Height | 78 mm |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | R711 |
| Price Group | 41A |
| Metal Factor | LDO----- |
| Mounting type | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 |
| Product Group | 5801 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85364900 |
| Product family | Ordering Data Overview |
| last modified: | 08/18/2020 |
| Net Weight (kg) | 0,537 Kg |
| Country of origin | Turkey |
| Size of contactor | 0 |
| ● 1 rated value | 50 Hz |
| ● 2 rated value | 60 Hz |
| LKZ_FDB/ CatalogID | NSE |
| Packaging Quantity | 1 |
| Ambient temperature | |
| Packaging Dimension | 61,00 x 83,00 x 162,00 |
| Product Description | Contactor relay, 54, EN 50011, 5NO + 4NC, Snap-on and screw mounting with mechanical latching AC operation 240 V AC 50/60 Hz |
| Product designation | Auxiliary contactor |
| ● leading contact | 0 |
| Interface (EF000594) | - |
| ● during operation | -25 ... +55 °C |
| ● delayed switching | 0 |
| ● lagging switching | 0 |
| Product Lifecycle (PLM) | PM300:Active Product |
| Product type designation | 3TH4 |
| ● at 230 V rated value | 10 A |
| ● at 400 V rated value | 6 A |
| ● at 50 Hz rated value | 240 V |
| ● at 60 Hz rated value | 240 V |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | - |
| Operating current at AC-15 | |
| Standard lead time ex-works | 50 Day/Days |
| Surcharge for Raw Materials | None |
| Control supply voltage at AC | |
| Package size unit of measure | MM |
| Product Dimensions (W x L x H) | Not available |
| With LED indication (EF005950) | - |
| ● make-before-break switching | 0 |
| control supply voltage frequency | |
| protection class IP on the front | IP20 |
| Protection against electrical shock | finger-safe |
| Manual operation possible (EF005881) | - |
| Article Number (Market Facing Number) | 3TH4454-0AP2 |
| Reference code acc. to DIN EN 81346-2 | K |
| Voltage type for actuating (EF008242) | AC |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Connection type auxiliary circuit (EF006820) | Screw connection |
| Number of CO contacts for auxiliary contacts | 0 |
| Number of NC contacts for auxiliary contacts | 4 |
| Number of NO contacts for auxiliary contacts | 5 |
| Rated operation current Ie, 400 V (EF001378) | 6 |
| Type of voltage of the control supply voltage | AC |
| B10 value with high demand rate acc. to SN 31920 | 1 000 000; With 0.3 x Ie |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| Identification number and letter for switching elements | 54 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 5 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 4 |
| T1 value for proof test interval or service life acc. to IEC 61508 | 20 y |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.03.2017 |
| Type of electrical connection for auxiliary and control current circuit | screw-type terminals |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| Number of auxiliary contacts as normally open contact, leading (EF007282) | 0 |
| Number of auxiliary contacts as normally closed contact, delayed switching (EF007281) | 0 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
