3TH4355-0AE0

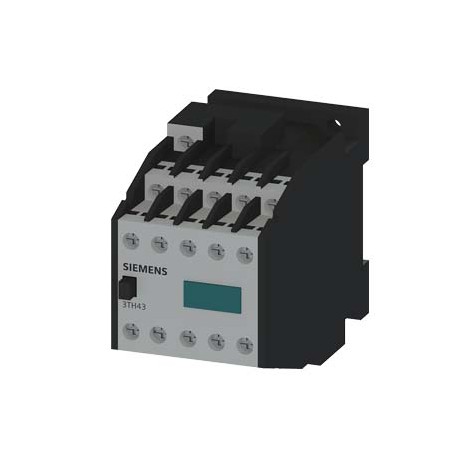

3TH4355-0AE0 SIEMENS Contactor relay, 55E, EN 50011, 5 NO + 5 NC, screw terminal, AC operation, 60 V AC 50 H..
$0.00USD
3363 in stock
Key Specifications
:Value
EAN:4011209150218
UPC:754554367118
ETIM:4
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4011209150218 |
| UPC | 754554367118 |
| ETIM | 4 |
| IDEA | 4 |
| depth | 102 mm |
| width | 55 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 78 mm |
| Group Code | R711 |
| Price Group | |
| Metal Factor | LDO----- |
| Product Group | 5801 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| mounting type | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 |
| Commodity Code | 85364900 |
| Product family | 3TH4 contactor relays, 8- and 10-pole |
| last modified: | 08/25/2020 |
| Net Weight (kg) | 0,450 Kg |
| Country of origin | Turkey |
| Size of contactor | 0 |
| ● 1 rated value | 50 Hz |
| ● 2 rated value | 60 Hz |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| Packaging Dimension | 58,00 x 82,00 x 106,00 |
| Product Description | Contactor relay, 55E, EN 50011, 5 NO + 5 NC, screw terminal, AC operation, 60 V AC 50 Hz/72 V AC 60 Hz |
| product designation | Auxiliary contactor |
| Interface (EF000594) | - |
| Product Lifecycle (PLM) | PM300:Active Product |
| product type designation | 3TH4 |
| ● at 230 V rated value | 10 A |
| ● at 400 V rated value | 6 A |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | - |
| Operating current at AC-15 | |
| Standard lead time ex-works | 50 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Product Dimensions (W x L x H) | Not available |
| With LED indication (EF005950) | - |
| control supply voltage frequency | |
| protection class IP on the front | IP20 |
| protection against electrical shock | finger-safe |
| Manual operation possible (EF005881) | - |
| Article Number (Market Facing Number) | 3TH4355-0AE0 |
| Voltage type for actuating (EF008242) | AC |
| reference code acc. to DIN EN 81346-2 | K |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ● ambient temperature during operation | -25 ... +55 °C |
| Connection type auxiliary circuit (EF006820) | Screw connection |
| Rated operation current Ie, 400 V (EF001378) | 6 |
| number of CO contacts for auxiliary contacts | 0 |
| Type of voltage of the control supply voltage | AC |
| B10 value with high demand rate acc. to SN 31920 | 1 000 000; With 0.3 x Ie |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] |
| ● number of NC contacts for auxiliary contacts | 5 |
| ● number of NO contacts for auxiliary contacts | 5 |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| ● Control supply voltage at AC at 50 Hz rated value | 60 V |
| ● Control supply voltage at AC at 60 Hz rated value | 72 V |
| Identification number and letter for switching elements | 55 E |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 5 |
| ● Number of NO contacts for auxiliary contacts leading contact | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 5 |
| T1 value for proof test interval or service life acc. to IEC 61508 | 20 y |
| ● Number of NC contacts for auxiliary contacts delayed switching | 0 |
| ● Number of NC contacts for auxiliary contacts lagging switching | 0 |
| ● Number of NO contacts for auxiliary contacts delayed switching | 0 |
| Compliance with the substance restrictions according to RoHS directive | Product is not RoHS-compliant |
| type of electrical connection for auxiliary and control current circuit | screw-type terminals |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| Number of auxiliary contacts as normally open contact, leading (EF007282) | 0 |
| ● Number of NC contacts for auxiliary contacts make-before-break switching | 0 |
| ● Number of NO contacts for auxiliary contacts make-before-break switching | 0 |
| Number of auxiliary contacts as normally closed contact, delayed switching (EF007281) | 0 |
