In Stock Hot Product
3TH4355-0AD2

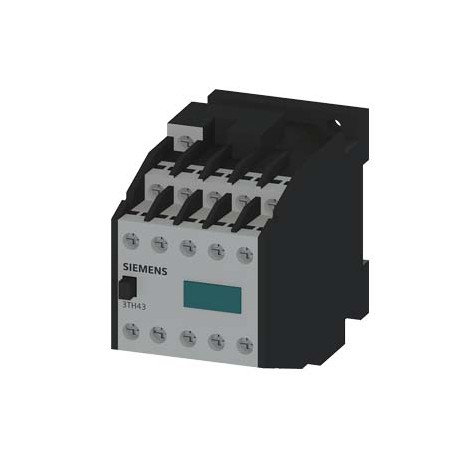

3TH4355-0AD2 SIEMENS Contactor relay, 55E, EN 50011, 5 NO + 5 NC, screw terminal, AC operation, 42 V AC 50/6..
$0.00USD
4746 in stock
Key Specifications
:VersionClassificationeClass627-37-10-01eClass7.127-37-10-01eClass827-37-10-01eClass927-37-10-01eClass9.127-37-10-01ETIM5EC000196ETIM6EC000196ETIM7EC000196ETIM8EC000196IDEA44755UNSPSC1539-12-15-29
EAN:4011209159532
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-10-01eClass7.127-37-10-01eClass827-37-10-01eClass927-37-10-01eClass9.127-37-10-01ETIM5EC000196ETIM6EC000196ETIM7EC000196ETIM8EC000196IDEA44755UNSPSC1539-12-15-29 | |
| EAN | 4011209159532 |
| UPC | Not available |
| ETIM | 5 |
| IDEA | 4 |
| depth | 102 mm |
| width | 55 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 78 mm |
| Group Code | R711 |
| Metal Factor | LDO----- |
| Date5/14/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 5801 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85364900 |
| Product family | 3TH4 contactor relays, 8- and 10-pole |
| last modified: | 12/23/2020 |
| Net Weight (kg) | 0,461 Kg |
| fastening method | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 |
| Country of origin | China |
| size of contactor | 0 |
| ● 1 rated value | 50 Hz |
| ● 2 rated value | 60 Hz |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| Packaging Dimension | 58,00 x 82,00 x 106,00 |
| Product Description | Contactor relay, 55E, EN 50011, 5 NO + 5 NC, screw terminal, AC operation, 42 V AC 50/60 Hz |
| product designation | Auxiliary contactor |
| ● leading contact | 0 |
| Interface (EF000594) | - |
| ● delayed switching | 0 |
| ● lagging switching | 0 |
| Product Lifecycle (PLM) | PM300:Active Product |
| product type designation | 3TH4 |
| ● at 230 V rated value | 10 A |
| ● at 400 V rated value | 6 A |
| ● at 50 Hz rated value | 42 V |
| ● at 60 Hz rated value | 42 V |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | - |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| control supply voltage at AC | |
| operational current at AC-15 | |
| Substance Prohibitance (Date) | 12/31/2099 |
| With LED indication (EF005950) | - |
| ● make-before-break switching | 0 |
| control supply voltage frequency | |
| Manual operation possible (EF005881) | - |
| ambient temperature during operation | -25 ... +55 °C |
| Article Number (Market Facing Number) | 3TH4355-0AD2 |
| Voltage type for actuating (EF008242) | AC |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| reference code according to IEC 81346-2 | K |
| Connection type auxiliary circuit (EF006820) | Screw connection |
| Rated operation current Ie, 400 V (EF001378) | 6 |
| number of CO contacts for auxiliary contacts | 0 |
| number of NC contacts for auxiliary contacts | 5 |
| number of NO contacts for auxiliary contacts | 5 |
| type of voltage of the control supply voltage | AC |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] |
| Region Specific PriceGroup / Headquarter Price Group | 41A / 41A |
| B10 value with high demand rate according to SN 31920 | 1 000 000; With 0.3 x Ie |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| identification number and letter for switching elements | 55 E |
| protection class IP on the front according to IEC 60529 | IP00 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| type of electrical connection for auxiliary and control circuit | screw-type terminals |
| Number of auxiliary contacts as normally open contact (EF001376) | 5 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 5 |
| Compliance with the substance restrictions according to RoHS directive | Product is not RoHS-compliant |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| Number of auxiliary contacts as normally open contact, leading (EF007282) | 0 |
| Number of auxiliary contacts as normally closed contact, delayed switching (EF007281) | 0 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
