3TH4244-5MB4

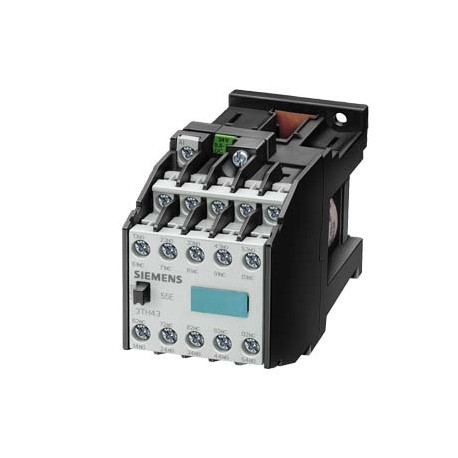

3TH4244-5MB4 SIEMENS Contactor relay, 44E, DIN EN 50011, 4NO + 4NC flat connector terminal DC operation 24 V..
$0.00USD
3594 in stock
Key Specifications
:
EAN:4011209048089
UPC:Not available
ETIM:7
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209048089 |
| UPC | Not available |
| ETIM | 7 |
| IDEA | 4 |
| depth | 135 mm |
| other | Railway |
| width | 45 mm |
| UNSPSC | 15 |
| eClass | 12 |
| height | 78 mm |
| Group Code | R711 |
| Confirmation | Special Test Certificate |
| Metal Factor | LBP----- |
| Date6/29/2023 | Subject to change without notice© Copyright Siemens 2023 |
| Product Group | 5801 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85364900 |
| Product family | 3TH4 contactor relays, 8- and 10-pole |
| last modified: | 11/21/2022 |
| Net Weight (kg) | 0,641 Kg |
| ● rated value | 24 V |
| fastening method | screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 50022 |
| Country of origin | China |
| size of contactor | 0 |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| Packaging Dimension | 52,00 x 97,00 x 135,00 |
| Product Description | Contactor relay, 44E, DIN EN 50011, 4NO + 4NC flat connector terminal DC operation 24 V DC |
| product designation | Auxiliary contactor |
| ● leading contact | 0 |
| Interface (EF000594) | - |
| ● delayed switching | 0 |
| ● lagging switching | 0 |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Functional Safety/Safety of Machinery |
| product type designation | 3TH4 |
| ● at 230 V rated value | 10 A |
| ● at 400 V rated value | 6 A |
| Declaration of Conformity | Test Certificates |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | - |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| control supply voltage at DC | |
| operational current at AC-15 | |
| Substance Prohibitance (Date) | 03/01/2017 |
| With LED indication (EF005950) | - |
| ● make-before-break switching | 0 |
| Manual operation possible (EF005881) | - |
| ambient temperature during operation | -25 ... +55 °C |
| Article Number (Market Facing Number) | 3TH4244-5MB4 |
| Voltage type for actuating (EF008242) | DC |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| reference code according to IEC 81346-2 | K |
| Connection type auxiliary circuit (EF006820) | Other |
| Rated operation current Ie, 400 V (EF001378) | 6 |
| number of CO contacts for auxiliary contacts | 0 |
| number of NC contacts for auxiliary contacts | 4 |
| number of NO contacts for auxiliary contacts | 4 |
| type of voltage of the control supply voltage | DC |
| Rated control supply voltage Us at DC (EF003980) | ['-', '24'] |
| Region Specific PriceGroup / Headquarter Price Group | 41A / 41A |
| B10 value with high demand rate according to SN 31920 | 1 000 000; With 0.3 x Ie |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| identification number and letter for switching elements | 44 E |
| protection class IP on the front according to IEC 60529 | IP00 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| type of electrical connection for auxiliary and control circuit | tab terminals 2x 2.8 mm |
| Number of auxiliary contacts as normally open contact (EF001376) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 4 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.03.2017 |
| T1 value for proof test interval or service life according to IEC 61508 | 20 a |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| Number of auxiliary contacts as normally open contact, leading (EF007282) | 0 |
| Number of auxiliary contacts as normally closed contact, delayed switching (EF007281) | 0 |
| General Product ApprovalFunctional Safety/Safety of MachineryDeclaration of ConformityType Examination CertificateDeclaration of ConformityTest CertificatesMarine / ShippingMiscellaneousSpecial Test CertificateType Test Certificates/Test ReportMiscellaneousotherRailwayConfirmationSpecial Test Certificate | General Product Approval |
Product Description
SIRIUS Auxiliary contactor IL.44E DIN EN 50 011 4NA+4NC, CONEX. FINALLY. ACCIONAM MAP. BY DIRECT CURRENT DC MAGNETIC SYSTEM DC 24V
