In Stock Hot Product
3TH2162-0BB4

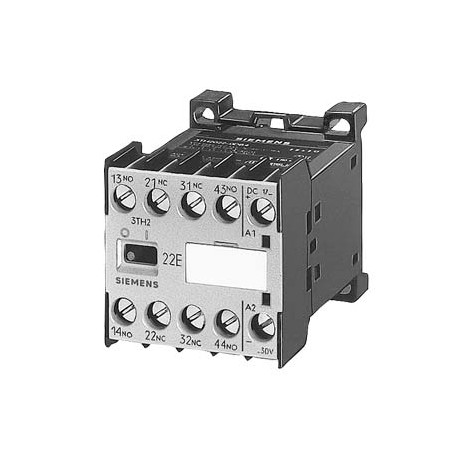

3TH2162-0BB4 SIEMENS Contactor relay, 62E, EN 50011, 6 NO + 2 NC, Screw terminal Width 90 mm 24 V DC DC oper..
$0.00USD
3256 in stock
Key Specifications
:Value
EAN:4011209046054
UPC:887621829544
Depth:68 mm
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4011209046054 |
| UPC | 887621829544 |
| Depth | 68 mm |
| Width | 90 mm |
| Height | 36 mm |
| Group Code | R711 |
| Price Group | 41A |
| Metal Factor | LCP----- |
| Mounting type | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 |
| Product Group | 5800 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85364900 |
| Product family | Not available |
| last modified: | 08/18/2020 |
| Net Weight (kg) | 0,284 Kg |
| ● rated value | 24 V |
| Country of origin | Turkey |
| Size of contactor | 0 |
| LKZ_FDB/ CatalogID | CC-IC10 |
| PLM Effective Date | Product is cancelled since: 01.04.2020 |
| Packaging Quantity | 1 |
| Ambient temperature | |
| Packaging Dimension | 55,50 x 75,00 x 98,50 |
| Product Description | Contactor relay, 62E, EN 50011, 6 NO + 2 NC, Screw terminal Width 90 mm 24 V DC DC operation !!! Phased-out product !!! Successor is SIRIUS 3RH21 |
| Product designation | Auxiliary contactor |
| ● leading contact | 0 |
| Interface (EF000594) | - |
| ● during operation | -25 ... +55 °C |
| ● delayed switching | 0 |
| ● lagging switching | 0 |
| Product Lifecycle (PLM) | PM410:Product cancellation |
| Product type designation | 3TH2 |
| ● at 230 V rated value | 4 A |
| ● at 400 V rated value | 3 A |
| Export Control Regulations | ECCN : N / AL : N |
| Mounting method (EF000003) | - |
| Operating current at AC-15 | |
| Standard lead time ex-works | 20 Day/Days |
| Surcharge for Raw Materials | None |
| Control supply voltage at DC | |
| Package size unit of measure | MM |
| Product Dimensions (W x L x H) | Not available |
| With LED indication (EF005950) | - |
| ● make-before-break switching | 0 |
| protection class IP on the front | IP00 |
| Protection against electrical shock | finger-safe |
| Manual operation possible (EF005881) | - |
| Article Number (Market Facing Number) | 3TH2162-0BB4 |
| Reference code acc. to DIN EN 81346-2 | K |
| Voltage type for actuating (EF008242) | DC |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Connection type auxiliary circuit (EF006820) | Screw connection |
| Number of CO contacts for auxiliary contacts | 0 |
| Number of NC contacts for auxiliary contacts | 2 |
| Number of NO contacts for auxiliary contacts | 6 |
| Rated operation current Ie, 400 V (EF001378) | 3 |
| Type of voltage of the control supply voltage | DC |
| B10 value with high demand rate acc. to SN 31920 | 400 000; With 0.3 x Ie |
| Rated control supply voltage Us at DC (EF003980) | ['-', '24'] |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| Identification number and letter for switching elements | 62 E |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 6 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 2 |
| T1 value for proof test interval or service life acc. to IEC 61508 | 20 y |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| Type of electrical connection for auxiliary and control current circuit | screw-type terminals |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| Number of auxiliary contacts as normally open contact, leading (EF007282) | 0 |
| Number of auxiliary contacts as normally closed contact, delayed switching (EF007281) | 0 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
