3TH2022-1BF4

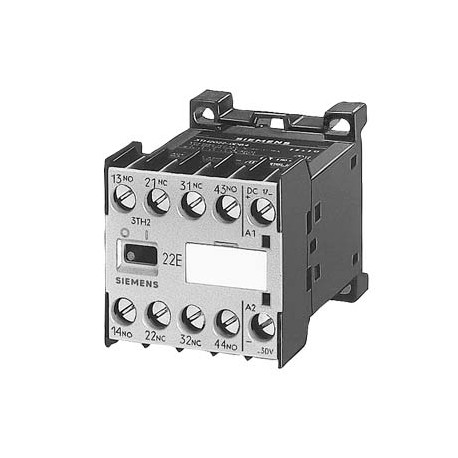

3TH2022-1BF4 SIEMENS Contactor relay, 22E, EN 50011, 2 NO + 2 NC flat connector terminal DC operation 110 V ..
$0.00USD
4175 in stock
Key Specifications
:Value
EAN:4011209174696
UPC:Not available
Notes:Product was deleted without replacementIf you need assistance please contact our local Siemens office
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4011209174696 |
| UPC | Not available |
| Notes | Product was deleted without replacementIf you need assistance please contact our local Siemens office |
| depth | 64.5 mm |
| width | 45 mm |
| height | 48 mm |
| Group Code | R711 |
| Price Group | 41A |
| Metal Factor | LCP----- |
| Product Group | 5800 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| mounting type | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 |
| Commodity Code | 85364900 |
| Product family | Not available |
| last modified: | 08/25/2020 |
| Net Weight (kg) | 0,200 Kg |
| ● rated value | 110 V |
| Country of origin | Turkey |
| Size of contactor | 0 |
| LKZ_FDB/ CatalogID | NSE |
| PLM Effective Date | Product discontinued since: 01.10.2019 |
| Packaging Quantity | 1 |
| Packaging Dimension | 49,00 x 52,00 x 71,00 |
| Product Description | Contactor relay, 22E, EN 50011, 2 NO + 2 NC flat connector terminal DC operation 110 V DC !!! Phased-out product !!! Successor is SIRIUS 3RH21 |
| product designation | Auxiliary contactor |
| Interface (EF000594) | - |
| Product Lifecycle (PLM) | PM490:Start of final year of support |
| product type designation | 3TH2 |
| ● at 230 V rated value | 4 A |
| ● at 400 V rated value | 3 A |
| Export Control Regulations | ECCN : N / AL : N |
| Mounting method (EF000003) | - |
| Operating current at AC-15 | |
| Standard lead time ex-works | On request |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| control supply voltage at DC | |
| Product Dimensions (W x L x H) | Not available |
| With LED indication (EF005950) | - |
| protection class IP on the front | IP00 |
| protection against electrical shock | finger-safe |
| Manual operation possible (EF005881) | - |
| Article Number (Market Facing Number) | 3TH2022-1BF4 |
| Voltage type for actuating (EF008242) | DC |
| reference code acc. to DIN EN 81346-2 | K |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ● ambient temperature during operation | -25 ... +55 °C |
| Connection type auxiliary circuit (EF006820) | Other |
| Rated operation current Ie, 400 V (EF001378) | 3 |
| number of CO contacts for auxiliary contacts | 0 |
| Type of voltage of the control supply voltage | DC |
| B10 value with high demand rate acc. to SN 31920 | 400 000; With 0.3 x Ie |
| Rated control supply voltage Us at DC (EF003980) | ['-', '110'] |
| ● number of NC contacts for auxiliary contacts | 2 |
| ● number of NO contacts for auxiliary contacts | 2 |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| Identification number and letter for switching elements | 22 E |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| ● Number of NO contacts for auxiliary contacts leading contact | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 2 |
| T1 value for proof test interval or service life acc. to IEC 61508 | 20 y |
| ● Number of NC contacts for auxiliary contacts delayed switching | 0 |
| ● Number of NC contacts for auxiliary contacts lagging switching | 0 |
| ● Number of NO contacts for auxiliary contacts delayed switching | 0 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| type of electrical connection for auxiliary and control current circuit | tab terminals 2x 2.8 mm |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| Number of auxiliary contacts as normally open contact, leading (EF007282) | 0 |
| ● Number of NC contacts for auxiliary contacts make-before-break switching | 0 |
| ● Number of NO contacts for auxiliary contacts make-before-break switching | 0 |
| Number of auxiliary contacts as normally closed contact, delayed switching (EF007281) | 0 |
