3TH2022-0QC2

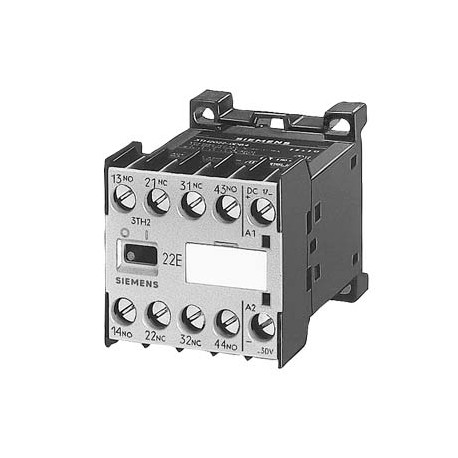

3TH2022-0QC2 SIEMENS Contactor relay, 22E, EN 50011, 2 NO + 2 NC, Screw terminal Rectifier bridge built-in A..
$0.00USD
3669 in stock
Key Specifications
:Value
EAN:4011209155466
UPC:Not available
Notes:Product was deleted without replacementIf you need assistance please contact our local Siemens office
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4011209155466 |
| UPC | Not available |
| Notes | Product was deleted without replacementIf you need assistance please contact our local Siemens office |
| depth | 68 mm |
| width | 45 mm |
| height | 48 mm |
| Group Code | R711 |
| Price Group | 41A |
| Metal Factor | LDO----- |
| Product Group | 5800 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| mounting type | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 |
| Commodity Code | 85364900 |
| Product family | Not available |
| last modified: | 08/25/2020 |
| Net Weight (kg) | 0,219 Kg |
| Country of origin | Turkey |
| Size of contactor | 0 |
| ● 1 rated value | 50 Hz |
| ● 2 rated value | 60 Hz |
| LKZ_FDB/ CatalogID | NSE |
| PLM Effective Date | Product discontinued since: 01.10.2019 |
| Packaging Quantity | 1 |
| Packaging Dimension | 49,00 x 52,00 x 71,00 |
| Product Description | Contactor relay, 22E, EN 50011, 2 NO + 2 NC, Screw terminal Rectifier bridge built-in AC operation 24 V AC 50/60 Hz !!! Phased-out product !!! Successor is SIRIUS 3RH21 |
| product designation | Auxiliary contactor |
| Interface (EF000594) | - |
| Product Lifecycle (PLM) | PM490:Start of final year of support |
| product type designation | 3TH2 |
| ● at 230 V rated value | 4 A |
| ● at 400 V rated value | 3 A |
| Export Control Regulations | ECCN : N / AL : N |
| Mounting method (EF000003) | - |
| Operating current at AC-15 | |
| Standard lead time ex-works | On request |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Design of the surge suppressor | with full-wave rectification |
| Product Dimensions (W x L x H) | Not available |
| With LED indication (EF005950) | - |
| control supply voltage frequency | |
| protection class IP on the front | IP20 |
| protection against electrical shock | finger-safe |
| Manual operation possible (EF005881) | - |
| Article Number (Market Facing Number) | 3TH2022-0QC2 |
| Voltage type for actuating (EF008242) | AC |
| reference code acc. to DIN EN 81346-2 | K |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ● ambient temperature during operation | -25 ... +55 °C |
| Connection type auxiliary circuit (EF006820) | Screw connection |
| Rated operation current Ie, 400 V (EF001378) | 3 |
| number of CO contacts for auxiliary contacts | 0 |
| Type of voltage of the control supply voltage | AC |
| B10 value with high demand rate acc. to SN 31920 | 400 000; With 0.3 x Ie |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] |
| ● number of NC contacts for auxiliary contacts | 2 |
| ● number of NO contacts for auxiliary contacts | 2 |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| ● Control supply voltage at AC at 50 Hz rated value | 24 V |
| ● Control supply voltage at AC at 60 Hz rated value | 24 V |
| Identification number and letter for switching elements | 22 E |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| ● Number of NO contacts for auxiliary contacts leading contact | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 2 |
| T1 value for proof test interval or service life acc. to IEC 61508 | 20 y |
| ● Number of NC contacts for auxiliary contacts delayed switching | 0 |
| ● Number of NC contacts for auxiliary contacts lagging switching | 0 |
| ● Number of NO contacts for auxiliary contacts delayed switching | 0 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| type of electrical connection for auxiliary and control current circuit | screw-type terminals |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| Number of auxiliary contacts as normally open contact, leading (EF007282) | 0 |
| ● Number of NC contacts for auxiliary contacts make-before-break switching | 0 |
| ● Number of NO contacts for auxiliary contacts make-before-break switching | 0 |
| Number of auxiliary contacts as normally closed contact, delayed switching (EF007281) | 0 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
