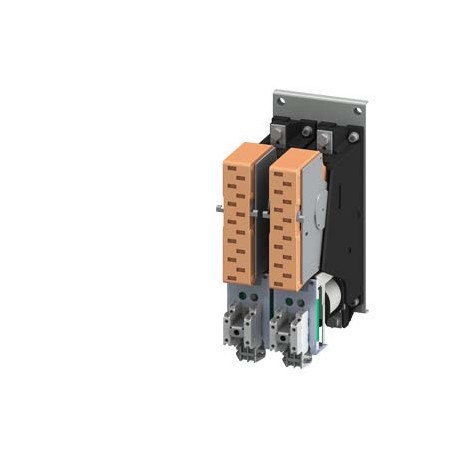

3TC7814-5KB SIEMENS Contactor size 12, 2-pole DC-4, Rated operating current 400 A Auxiliary switch 4 NO + 4 ..
$0.00USD
4153 in stock
Key Specifications
:Value
EAN:4011209152694
UPC:040892595833
Depth:290 mm
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4011209152694 |
| UPC | 040892595833 |
| Depth | 290 mm |
| Width | 160 mm |
| Height | 375 mm |
| Group Code | R711 |
| Arcing time | 40 ... 70 ms |
| Price Group | 41B |
| — upwards | 25 mm |
| ● at DC-1 | |
| Metal Factor | LDP----- |
| — forwards | 20 mm |
| ● at 50 Hz | 0.8 ... 1.2 |
| Mounting type | screw fixing |
| Product Group | 5807 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| — Backwards | 0 mm |
| — downwards | 10 mm |
| Commodity Code | 85364900 |
| Product family | Not available |
| last modified: | 08/13/2020 |
| Net Weight (kg) | 22,800 Kg |
| Operating power | |
| number of poles | 2 |
| type of voltage | DC |
| — at the side | 10 mm |
| ● rated value | 24 V |
| Required spacing | |
| Country of origin | Germany |
| Operating current | |
| Product extension | |
| Size of contactor | 12 |
| mounting position | +/-22,5° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface; standing, on horizontal mounting surface |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| ● during storage | -50 ... +80 °C |
| ● for live parts | |
| Ambient temperature | |
| Closing delay at DC | 60 ... 100 ms |
| Opening delay at DC | 20 ... 35 ms |
| Operating frequency | |
| Packaging Dimension | 358,00 x 423,00 x 248,00 |
| Product Description | Contactor size 12, 2-pole DC-4, Rated operating current 400 A Auxiliary switch 4 NO + 4 NC DC operation 24 V DC with integrated varistor |
| Product designation | Contactor |
| ● at DC-1 maximum | 1 000 1/h |
| ● at DC-3 at DC-5 | |
| ● at DC-3 maximum | 500 1/h |
| ● at DC-5 maximum | 500 1/h |
| ● Auxiliary switch | No |
| ● during operation | -25 ... +55 °C |
| Number of CO contacts | |
| ● for grounded parts | |
| Design of the fuse link | |
| Product Lifecycle (PLM) | PM300:Active Product |
| — at 24 V rated value | 500 A |
| ● Protection class IP | IP00 |
| ● at 24 V rated value | 10 A |
| ● at 48 V rated value | 10 A |
| ● at 60 V rated value | 10 A |
| General Product Approval | Functional Safety/Safety of Machinery |
| Product type designation | 3TC |
| — at 110 V rated value | 500 A |
| — at 220 V rated value | 500 A |
| — at 440 V rated value | 500 A |
| — at 600 V rated value | 500 A |
| — at 750 V rated value | 400 A |
| ● at 110 V rated value | 3.2 A |
| ● at 125 V rated value | 2.5 A |
| ● at 220 V rated value | 0.9 A |
| ● at 230 V rated value | 5.6 A |
| ● at 400 V rated value | 3.6 A |
| ● at 500 V rated value | 2.5 A |
| ● at 600 V rated value | 0.22 A |
| ● of contactor typical | 30 000 000 |
| — at 1200 V rated value | 400 kW |
| — at 1500 V rated value | 400 A |
| ● Side-by-side mounting | Yes |
| ● instantaneous contact | 4 |
| Export Control Regulations | ECCN : N / AL : N |
| Modular version (EF001126) | true |
| Operating current at AC-15 | |
| Operating current at DC-12 | |
| Operating current at DC-13 | |
| ● for auxiliary contacts | 0 |
| Standard lead time ex-works | 15 Day/Days |
| Surcharge for Raw Materials | None |
| Control supply voltage at DC | |
| Package size unit of measure | MM |
| — single or multi-stranded | 2x (1 ... 2,5 mm²) |
| Design of the surge suppressor | with varistor |
| Insulation voltage rated value | 1 500 V |
| Product Dimensions (W x L x H) | Not available |
| ● with side-by-side mounting | |
| ● type of electrical connection | screw-type terminals |
| Closing power of magnet coil at DC | 92 W |
| Holding power of magnet coil at DC | 92 W |
| Operating current at AC-12 maximum | 10 A |
| Surge voltage resistance rated value | 8 kV |
| ● protection class IP on the front | IP00 |
| Article Number (Market Facing Number) | 3TC7814-5KB |
| Reference code acc. to DIN EN 81346-2 | Q |
| Voltage type for actuating (EF008242) | DC |
| ● function module for communication | No |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| — with type of assignment 2 required | gG: 500 A (690 V, 100 kA) |
| Number of NC contacts for main contacts | 0 |
| Number of NO contacts for main contacts | 2 |
| ● Protection class IP of the terminal | IP00 |
| Number of poles for main current circuit | 2 |
| — with type of coordination 1 required | gG: 630 A (690 V, 100 kA) |
| contact reliability of auxiliary contacts | one incorrect switching operation of 100 million switching operations (17 V, 5 mA) |
| Mechanical service life (switching cycles) | |
| ● with 2 current paths in series at DC-1 | |
| Number of NC contacts for auxiliary contacts | 4 |
| Number of NO contacts for auxiliary contacts | 4 |
| Type of connectable conductor cross-sections | |
| — finely stranded with core end processing | 2x (0.75 ... 2.5 mm²) |
| Type of voltage of the control supply voltage | DC |
| Rated control supply voltage Us at DC (EF003980) | ['24', '24'] |
| ● with 2 current paths in series at DC-3 at DC-5 | |
| ● for short-circuit protection of the main circuit | |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| Identification number and letter for switching elements | 44 |
| Rated operation power at DC-3 / DC-5 at 440 V (EF007026) | 140.0 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| ● Type of electrical connection for main current circuit | screw-type terminals |
| Number of main contacts as normally open contact (EF001374) | 2 |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Rated operation current Ie at DC-3 / DC-5 at 440 V (EF007035) | 400 |
| ● of the contactor with added auxiliary switch block typical | 30 000 000 |
| Number of auxiliary contacts as normally open contact (EF001376) | 4 |
| ● for short-circuit protection of the auxiliary switch required | gG: 16 A (500 V, 1 kA) |
| Number of auxiliary contacts as normally closed contact (EF001377) | 4 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.03.2017 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| ● Type of electrical connection for auxiliary and control current circuit | screw-type terminals |
| Operating range factor control supply voltage rated value of magnet coil at AC | |
| maximum permissible voltage for safe isolation between coil and main contacts acc. to EN 60947-1 | 630 V |
| General Product ApprovalFunctional Safety/Safety of MachineryTest CertificatesotherType Examination CertificateSpecial Test CertificateMiscellaneousConfirmation | General Product Approval |
